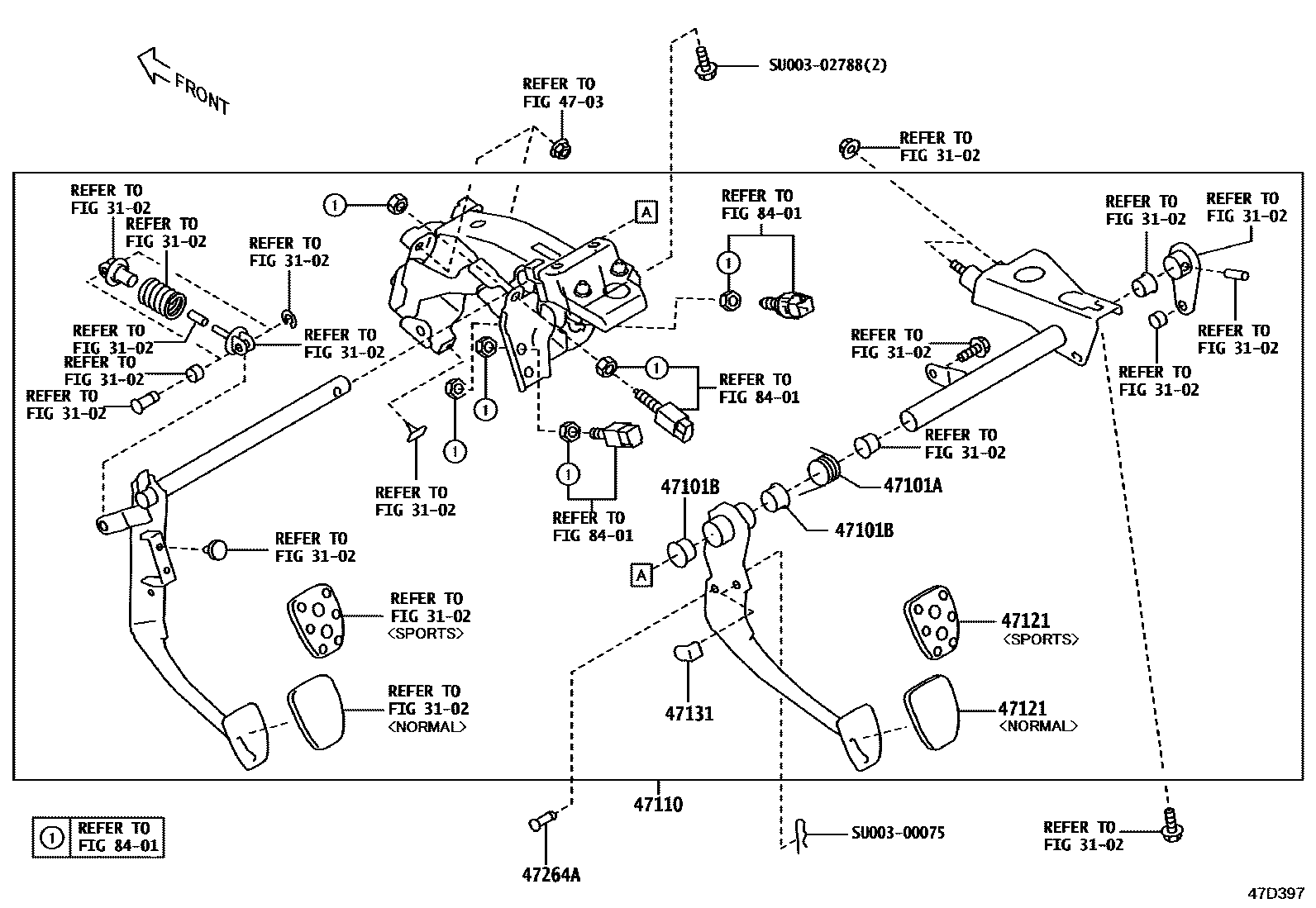

Toyota GR 86 — BRAKE PEDAL & BRACKET

Parts diagram
3102
4703
47101ASPRING(FOR BRAKE PEDAL RETURN)
mainSU00300977i202203-202310
mainSU00300978i202203-202310
47101BBUSH(FOR BRAKE PEDAL)
mainSU00300967i202203-202310
mainSU00302123i202203-202310
47110SUPPORT ASSY, BRAKE PEDAL
mainSU00308887i202203-202310
OPTION CODE=AB
mainSU00308887i202203-202310
OPTION CODE=AX
mainSU00308887i202203-202310
OPTION CODE=AD
mainSU00308887i202311
OPTION CODE=FB
mainSU00308887i202311
OPTION CODE=FD
mainSU00308887i202311
OPTION CODE=FX
mainSU00308887i202311
OPTION CODE=FF
mainSU00308887i202311
OPTION CODE=FH
mainSU00308887i202206-202310
OPTION CODE=AF
mainSU00308889i202203-202310
OPTION CODE=AB
mainSU00308889i202203-202310
OPTION CODE=AX
mainSU00308889i202203-202310
OPTION CODE=AD
mainSU00308889i202311
OPTION CODE=FB
mainSU00308889i202311
OPTION CODE=FD
mainSU00308889i202311
OPTION CODE=FX
mainSU00308889i202311
OPTION CODE=FF
mainSU00308889i202311
OPTION CODE=FH
mainSU00308889i202206-202310
OPTION CODE=AF
mainSU00309876i202203-202310
OPTION CODE=AX
mainSU00309876i202203-202310
OPTION CODE=AD
mainSU00309876i202203-202310
OPTION CODE=AB
mainSU00309876i202311
OPTION CODE=FD
mainSU00309876i202311
OPTION CODE=FB
mainSU00309876i202311
OPTION CODE=FH
mainSU00309876i202311
OPTION CODE=FF
mainSU00309876i202311
OPTION CODE=FX
mainSU00309876i202206-202310
OPTION CODE=AF
mainSU00309879i202203-202310
OPTION CODE=AD
mainSU00309879i202203-202310
OPTION CODE=AB
mainSU00309879i202203-202310
OPTION CODE=AX
mainSU00309879i202206-202310
OPTION CODE=AF
mainSU00309879i202311
OPTION CODE=FB
mainSU00309879i202311
OPTION CODE=FD
mainSU00309879i202311
OPTION CODE=FX
mainSU00309879i202311
OPTION CODE=FF
mainSU00309879i202311
OPTION CODE=FH
47121PAD, BRAKE PEDAL
mainSU00300970i202203-202310
OPTION CODE=AX
mainSU00300970i202203-202310
OPTION CODE=AD
mainSU00300970i202311
OPTION CODE=FB
mainSU00300970i202311
OPTION CODE=FD
mainSU00300970i202311
OPTION CODE=FX
mainSU00300970i202311
OPTION CODE=FF
mainSU00300970i202311
OPTION CODE=FH
mainSU00300970i202203-202310
OPTION CODE=AB
mainSU00300970i202206-202310
OPTION CODE=AF
mainSU00300971i202311
OPTION CODE=FX
mainSU00300971i202203-202310
OPTION CODE=AB
mainSU00300971i202203-202310
OPTION CODE=AX
mainSU00300971i202203-202310
OPTION CODE=AD
mainSU00300971i202206-202310
OPTION CODE=AF
mainSU00300971i202311
OPTION CODE=FB
mainSU00300971i202311
OPTION CODE=FD
mainSU00300971i202311
OPTION CODE=FF
mainSU00300971i202311
OPTION CODE=FH
47131CUSHION(FOR STOP LAMP SWITCH)
mainSU00300983i202203-202310
mainSU00300984i202203-202310
47264APIN(FOR PUSH ROD)
mainSU00302938i202203-202310
8401
SU00300075
mainSU003-00075¥20
SU00302788
mainSU003-02788¥40

11 parts on this diagram · 3 diagrams in section
