Toyota GR 86 — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

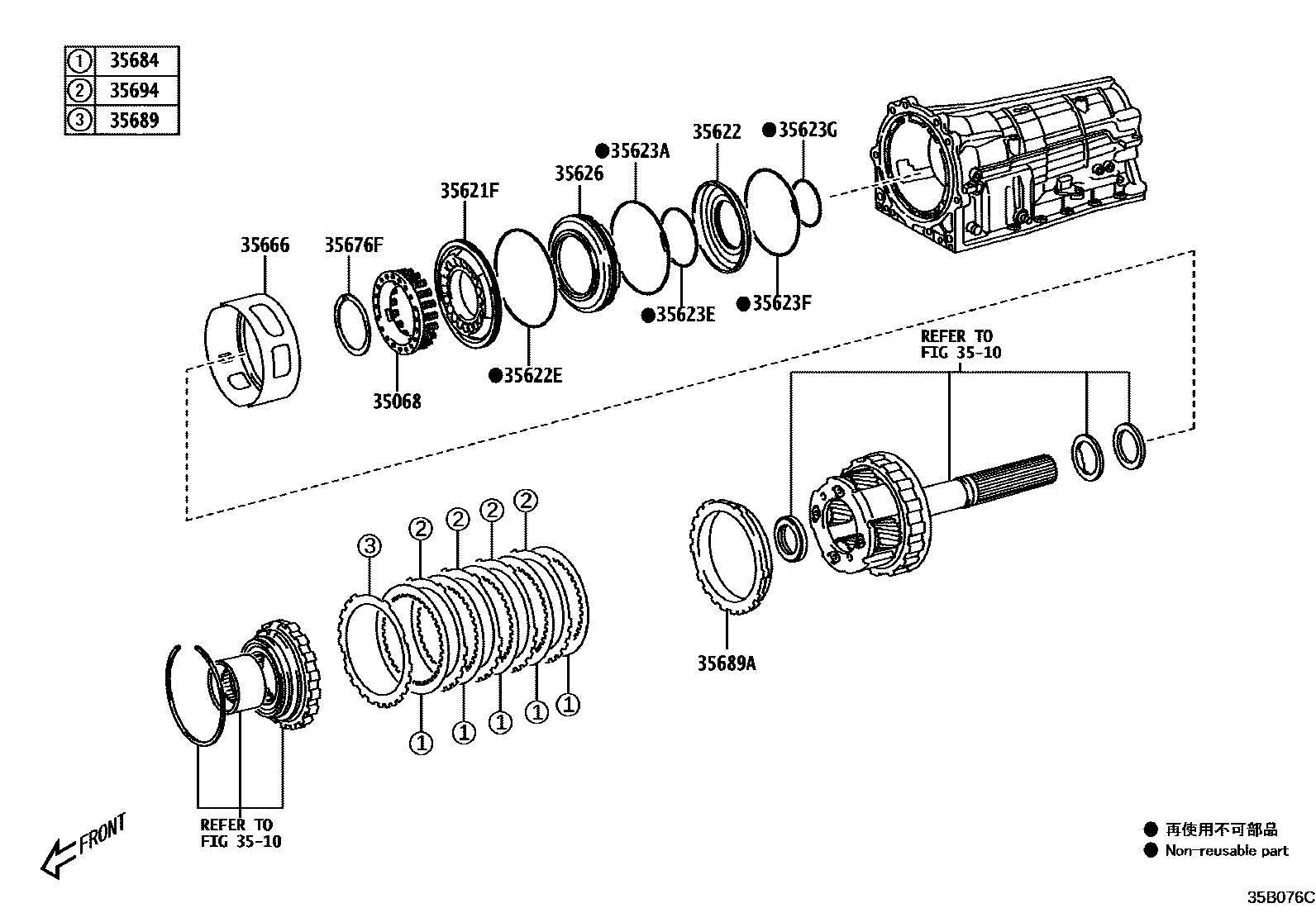

Parts diagram
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
mainSU00303662i202203-202206
mainSU00303662i202206-202310
mainSU00303662i202311
mainSU00303662i202408
3510
35621FPISTON, BRAKE, NO.1
mainSU00303707i202203-202206
mainSU00303707i202206-202310
mainSU00303707i202311
mainSU00303707i202408
35622PISTON, BRAKE, NO.2
mainSU00303709i202203-202206
mainSU00303709i202206-202310
mainSU00303709i202311
mainSU00303709i202408
35622ERING, O (FOR BRAKE PISTON NO.2)
mainSU00303608i202203-202206
mainSU00303608i202206-202310
mainSU00303608i202311
mainSU00303608i202408
35623ARING, O (FOR BRAKE PISTON NO.3 )
mainSU00303606i202203-202206
mainSU00303606i202206-202310
mainSU00303606i202311
mainSU00303606i202408
35623ERING, O, NO.1 (FOR BRAKE PISTON)
mainSU00303602i202203-202206
mainSU00303602i202408
mainSU00303602i202311
mainSU00303602i202206-202310
35623FRING, O, NO.2 (FOR BRAKE PISTON)
mainSU00303603i202203-202206
mainSU00303603i202408
mainSU00303603i202311
mainSU00303603i202206-202310
35623GRING, O, NO.3 (FOR BRAKE PISTON)
mainSU00303601i202203-202206
mainSU00303601i202206-202310
mainSU00303601i202311
mainSU00303601i202408
35626SLEEVE, BRAKE REACTION
mainSU00303708i202203-202206
mainSU00303708i202206-202310
mainSU00303708i202311
mainSU00303708i202408
35666TUBE, BRAKE APPLY
mainSU00303740i202203-202206
mainSU00303740i202206-202310
mainSU00303740i202311
mainSU00303740i202408
35676FRING, SNAP (FOR TRANSMISSION CASE)
mainSU00303530i202203-202206
mainSU00303530i202206-202310
mainSU00303530i202311
mainSU00303530i202408
35684DISC, BRAKE, NO.4
mainSU00305188i202203-202206
mainSU00305188i202206-202310
mainSU00305188i202311
mainSU00305188i202408
35689FLANGE, BRAKE, NO.4
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KG
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KF
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=K2
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KY
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KV
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KC
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KA
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=E3
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=E1
mainSU00305642i202408
T=1.8 MARK 0
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KS
mainSU00305642i202408
T=1.8 MARK 0,DESTINATION CODE=KR
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KR
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KS
mainSU00305642i202206-202310
T=1.8 MARK 0
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=EC
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=EK
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=ER
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=E1
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=E3
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KA
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KC
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KV
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KY
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=K2
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KF
mainSU00305642i202206-202310
T=1.8 MARK 0,DESTINATION CODE=KG
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KG
mainSU00305643i202206-202310
T=1.97 MARK 1
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=EC
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=EK
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=ER
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=E1
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=E3
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KA
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KC
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KV
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KY
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=K2
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KF
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KG
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KR
mainSU00305643i202206-202310
T=1.97 MARK 1,DESTINATION CODE=KS
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KF
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=K2
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KY
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KV
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KC
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KA
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=E3
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=E1
mainSU00305643i202408
T=1.97 MARK 1
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KS
mainSU00305643i202408
T=1.97 MARK 1,DESTINATION CODE=KR
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KF
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=K2
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KY
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KV
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KC
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KA
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=E3
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=E1
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=ER
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=EK
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=EC
mainSU00305644i202206-202310
T=2.11 MARK 3
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KS
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KR
mainSU00305644i202206-202310
T=2.11 MARK 3,DESTINATION CODE=KG
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=E1
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=E3
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KA
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KC
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KV
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KY
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=K2
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KF
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KG
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KR
mainSU00305644i202408
T=2.11 MARK 3,DESTINATION CODE=KS
mainSU00305644i202408
T=2.11 MARK 3
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KC
mainSU00305645i202206-202310
T=2.25 MARK 4
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=EC
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=EK
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=ER
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=E1
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=E3
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KA
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KC
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KV
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KY
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=K2
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KF
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KG
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KR
mainSU00305645i202206-202310
T=2.25 MARK 4,DESTINATION CODE=KS
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KS
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KR
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KG
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KF
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=K2
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KY
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KV
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=KA
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=E3
mainSU00305645i202408
T=2.25 MARK 4,DESTINATION CODE=E1
mainSU00305645i202408
T=2.25 MARK 4
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KY
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KV
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KC
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KA
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=E3
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=E1
mainSU00305646i202408
T=2.39 MARK 5
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KS
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KR
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KG
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=KF
mainSU00305646i202408
T=2.39 MARK 5,DESTINATION CODE=K2
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KC
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KA
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=E3
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=E1
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=ER
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=EK
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=EC
mainSU00305646i202206-202310
T=2.39 MARK 5
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KS
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KR
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KG
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KF
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=K2
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KY
mainSU00305646i202206-202310
T=2.39 MARK 5,DESTINATION CODE=KV
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KC
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=E3
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=E1
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=ER
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=EK
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=EC
mainSU00305647i202206-202310
T=2.53 MARK 7
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KS
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KR
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KG
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KF
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=K2
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KY
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KV
mainSU00305647i202206-202310
T=2.53 MARK 7,DESTINATION CODE=KA
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KS
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KR
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KG
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KF
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=K2
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KY
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KV
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KC
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=KA
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=E3
mainSU00305647i202408
T=2.53 MARK 7,DESTINATION CODE=E1
mainSU00305647i202408
T=2.53 MARK 7
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=K2
mainSU00305648i202206-202310
T=2.67 MARK 8
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=EC
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=EK
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=ER
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=E1
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=E3
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KA
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KC
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KV
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KY
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=K2
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KF
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KG
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KR
mainSU00305648i202206-202310
T=2.67 MARK 8,DESTINATION CODE=KS
mainSU00305648i202408
T=2.67 MARK 8
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=E1
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=E3
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KA
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KC
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KV
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KY
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KF
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KG
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KR
mainSU00305648i202408
T=2.67 MARK 8,DESTINATION CODE=KS
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KG
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KF
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=K2
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KY
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KV
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KC
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KA
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=E3
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=E1
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=ER
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=EK
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=EC
mainSU00305649i202206-202310
T=2.81 MARK 10
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KS
mainSU00305649i202206-202310
T=2.81 MARK 10,DESTINATION CODE=KR
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=E1
mainSU00305649i202408
T=2.81 MARK 10
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KS
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KR
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KG
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KF
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=K2
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KY
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KV
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KC
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=KA
mainSU00305649i202408
T=2.81 MARK 10,DESTINATION CODE=E3
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KR
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KS
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KG
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KF
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=K2
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KY
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KV
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KC
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=KA
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=E3
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=E1
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=ER
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=EK
mainSU00305650i202206-202310
T=2.95 MARK 11,DESTINATION CODE=EC
mainSU00305650i202206-202310
T=2.95 MARK 11
mainSU00305650i202408
T=2.95 MARK 11
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=E1
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=E3
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KA
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KC
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KV
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KY
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=K2
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KF
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KG
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KR
mainSU00305650i202408
T=2.95 MARK 11,DESTINATION CODE=KS
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KA
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=EC
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=EK
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=ER
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=E1
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=E3
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KC
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KV
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KY
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=K2
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KF
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KG
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KR
mainSU00305651i202206-202310
T=3.09 MARK 12,DESTINATION CODE=KS
mainSU00305651i202206-202310
T=3.09 MARK 12
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KF
mainSU00305651i202408
T=3.09 MARK 12
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=E1
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=E3
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KA
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KC
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KV
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KY
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=K2
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KG
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KR
mainSU00305651i202408
T=3.09 MARK 12,DESTINATION CODE=KS
35689AFLANGE, BRAKE, NO.4
mainSU00303785i202203-202206
mainSU00303785i202206-202310
mainSU00303785i202311
mainSU00303785i202408
35694PLATE, BRAKE, NO.4
mainSU00303796i202203-202206
mainSU00303796i202206-202310
mainSU00303796i202311
mainSU00303796i202408

16 parts on this diagram · 1 diagram in section

Toyota GR 86 BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) — Parts Diagram | EPC Data
