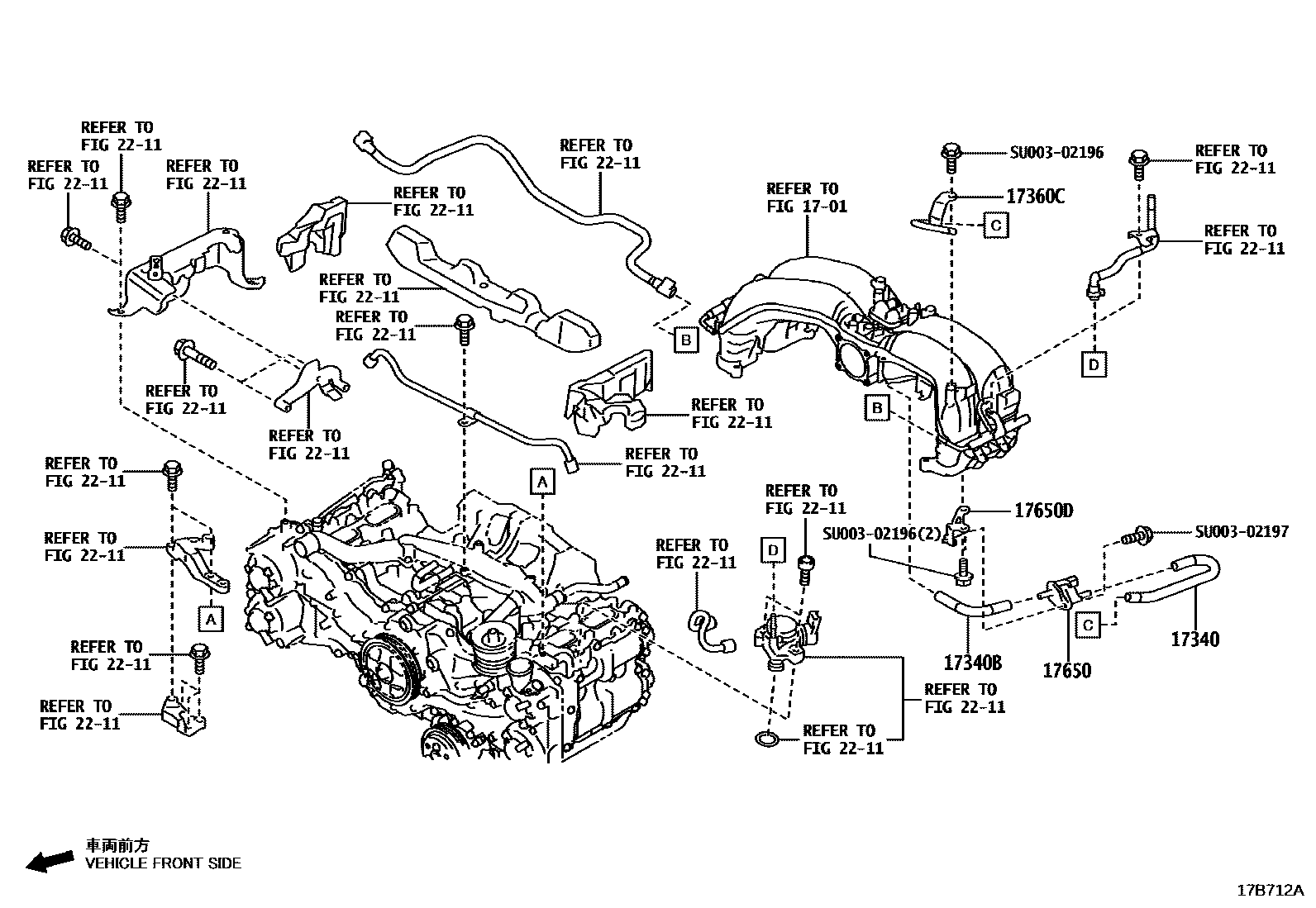

Toyota GR 86 — VACUUM PIPING

1701

17340HOSE ASSY, VACUUM SWITCHING VALVE

mainSU00309438iFA24..ZN8202203-202310

17340BHOSE ASSY, VACUUM SWITCHING VALVE, NO.1

mainSU00309439iFA24..ZN8202203-202310

17360CPIPE ASSY, AIR

mainSU00309597iFA24..ZN8202203-202310

17650VALVE ASSY, VACUUM SWITCHING

mainSU00308413iFA24..ZN8202203-202310

17650DBRACKET, VACUUM SWITCHING VALVE

mainSU00309507iFA24..ZN8202203-202310

2211

SU00302196

mainSU003-02196¥80

SU00302197

mainSU003-02197¥120

9 parts on this diagram · 1 diagram in section
