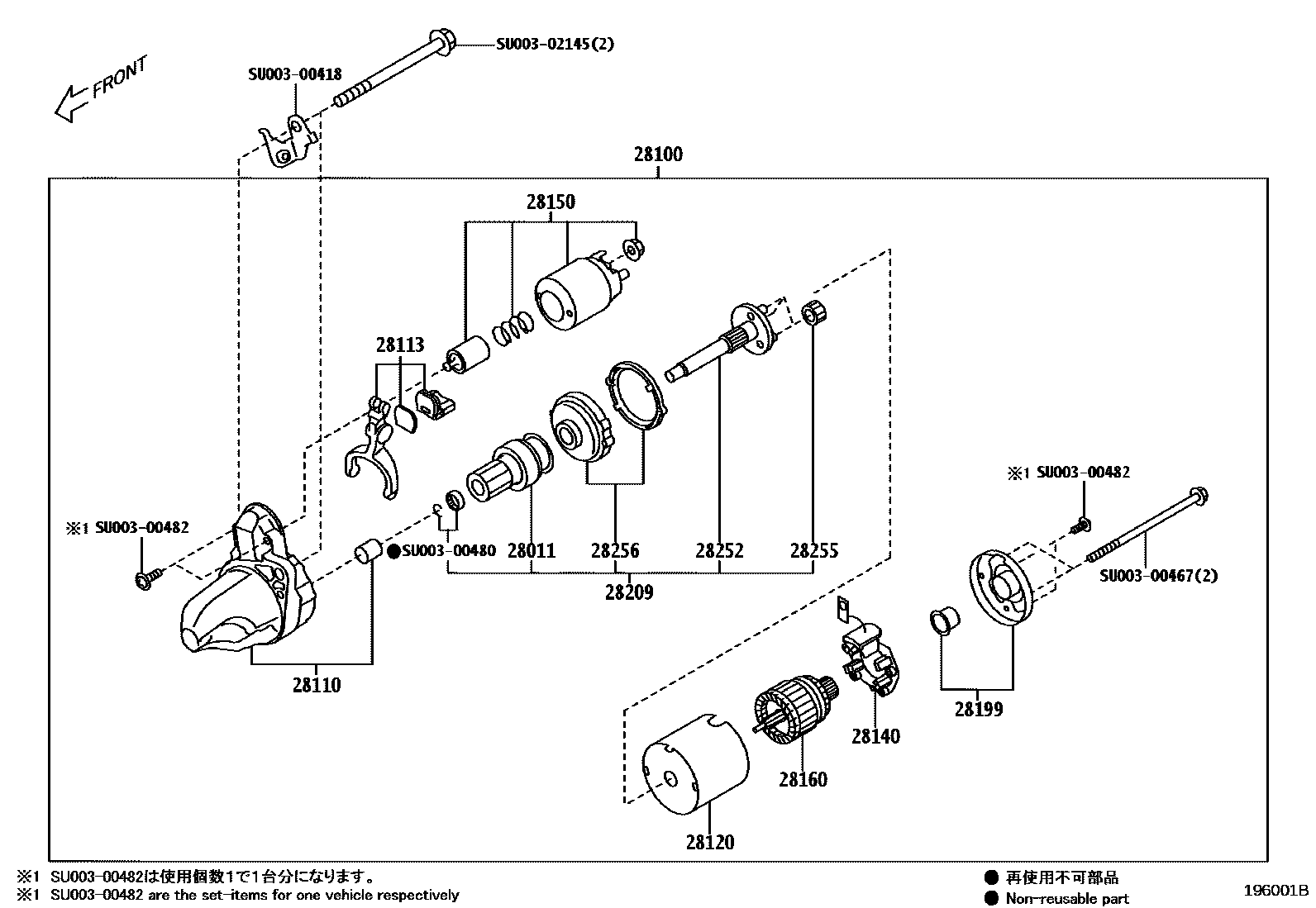

Toyota GR 86 — STARTER

0001 112V 1.0KW 0002 112V 1.6KW

28011CLUTCH SUB-ASSY, STARTER

mainSU00309602iFA24..ZN8..6F202203-202206

mainSU00309602iFA24..ZN8..6F..B202206-202310

mainSU00309602iFA24..ZN8..6F..C202311

mainSU00309602iFA24..ZN8..6F..D202408

28100STARTER ASSY

mainSU00309517iFA24..ZN8..6FC..D202408

12V 1.6KW

mainSU00309517iFA24..ZN8..6FC202203-202206

12V 1.6KW

mainSU00309517iFA24..ZN8..6FC..B202206-202310

12V 1.6KW

mainSU00309517iFA24..ZN8..6FC..C202311

12V 1.6KW

mainSU00309518iFA24..ZN8..6F..C202311

12V 1.0KW

mainSU00309518iFA24..ZN8..6F202203-202206

12V 1.0KW

mainSU00309518iFA24..ZN8..6F..B202206-202310

12V 1.0KW

mainSU00309518iFA24..ZN8..6F..D202408

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

mainSU00309603iFA24..ZN8..6F..C202311

mainSU00309603iFA24..ZN8..6F202203-202206

mainSU00309603iFA24..ZN8..6F..B202206-202310

mainSU00309603iFA24..ZN8..6F..D202408

28113LEVER, STARTER PINION DRIVE

mainSU00300460iFA24..ZN8..6F202203-202206

mainSU00300460iFA24..ZN8..6F..B202206-202310

mainSU00300460iFA24..ZN8..6F..C202311

mainSU00300460iFA24..ZN8..6F..D202408

28120YOKE ASSY, STARTER

mainSU00300452iFA24..ZN8..6F202203-202206

mainSU00300452iFA24..ZN8..6F..B202206-202310

mainSU00300452iFA24..ZN8..6F..C202311

mainSU00300452iFA24..ZN8..6F..D202408

mainSU00300453iFA24..ZN8..6FC..C202311

mainSU00300453iFA24..ZN8..6FC202203-202206

mainSU00300453iFA24..ZN8..6FC..B202206-202310

mainSU00300453iFA24..ZN8..6FC..D202408

28140HOLDER ASSY, STARTER BRUSH

mainSU00300463iFA24..ZN8..6FC..C202311

mainSU00300463iFA24..ZN8..6FC202203-202206

mainSU00300463iFA24..ZN8..6FC..B202206-202310

mainSU00300463iFA24..ZN8..6FC..D202408

mainSU00309605iFA24..ZN8..6F..C202311

mainSU00309605iFA24..ZN8..6F202203-202206

mainSU00309605iFA24..ZN8..6F..D202408

mainSU00309605iFA24..ZN8..6F..B202206-202310

28150SWITCH ASSY, MAGNET STARTER

mainSU00300471iFA24..ZN8..6F..D202408

mainSU00300471iFA24..ZN8..6F202203-202206

mainSU00300471iFA24..ZN8..6F..B202206-202310

mainSU00300471iFA24..ZN8..6F..C202311

mainSU00300472iFA24..ZN8..6FC..C202311

mainSU00300472iFA24..ZN8..6FC..B202206-202310

mainSU00300472iFA24..ZN8..6FC202203-202206

mainSU00300472iFA24..ZN8..6FC..D202408

28160ARMATURE ASSY, STARTER

mainSU00300454iFA24..ZN8..6F..B202206-202310

mainSU00300454iFA24..ZN8..6F202203-202206

mainSU00300454iFA24..ZN8..6F..C202311

mainSU00300454iFA24..ZN8..6F..D202408

mainSU00308275iFA24..ZN8..6FC..D202408

mainSU00308275iFA24..ZN8..6FC..C202311

mainSU00308275iFA24..ZN8..6FC202203-202206

mainSU00308275iFA24..ZN8..6FC..B202206-202310

28199COVER, STARTER

mainSU00300465iFA24..ZN8..6F202203-202206

mainSU00300465iFA24..ZN8..6F..B202206-202310

mainSU00300465iFA24..ZN8..6F..C202311

mainSU00300465iFA24..ZN8..6F..D202408

mainSU00300466iFA24..ZN8..6FC..C202311

mainSU00300466iFA24..ZN8..6FC202203-202206

mainSU00300466iFA24..ZN8..6FC..D202408

mainSU00300466iFA24..ZN8..6FC..B202206-202310

28209SHAFT SUB-ASSY, STARTER

mainSU00309604iFA24..ZN8..6F202203-202206

mainSU00309604iFA24..ZN8..6F..B202206-202310

mainSU00309604iFA24..ZN8..6F..C202311

mainSU00309604iFA24..ZN8..6F..D202408

28252GEAR, STARTER IDLE

mainSU00300462iFA24..ZN8..6F202203-202206

mainSU00300462iFA24..ZN8..6F..B202206-202310

mainSU00300462iFA24..ZN8..6F..C202311

mainSU00300462iFA24..ZN8..6F..D202408

28255GEAR, PLANET

mainSU00300473iFA24..ZN8..6F..B202206-202310

mainSU00300473iFA24..ZN8..6F202203-202206

mainSU00300473iFA24..ZN8..6F..C202311

mainSU00300473iFA24..ZN8..6F..D202408

mainSU00300474iFA24..ZN8..6FC..C202311

mainSU00300474iFA24..ZN8..6FC..D202408

mainSU00300474iFA24..ZN8..6FC202203-202206

mainSU00300474iFA24..ZN8..6FC..B202206-202310

28256GEAR, STARTER INTERNAL

mainSU00300464iFA24..ZN8..6F202203-202206

mainSU00300464iFA24..ZN8..6F..D202408

mainSU00300464iFA24..ZN8..6F..C202311

mainSU00300464iFA24..ZN8..6F..B202206-202310

SU00300418

mainSU003-00418¥370

SU00300467

mainSU003-00467¥220

SU00300480

mainSU003-00480¥340

SU00300482

mainSU003-00482¥120

SU00302145

mainSU003-02145¥240

18 parts on this diagram · 2 diagrams in section
