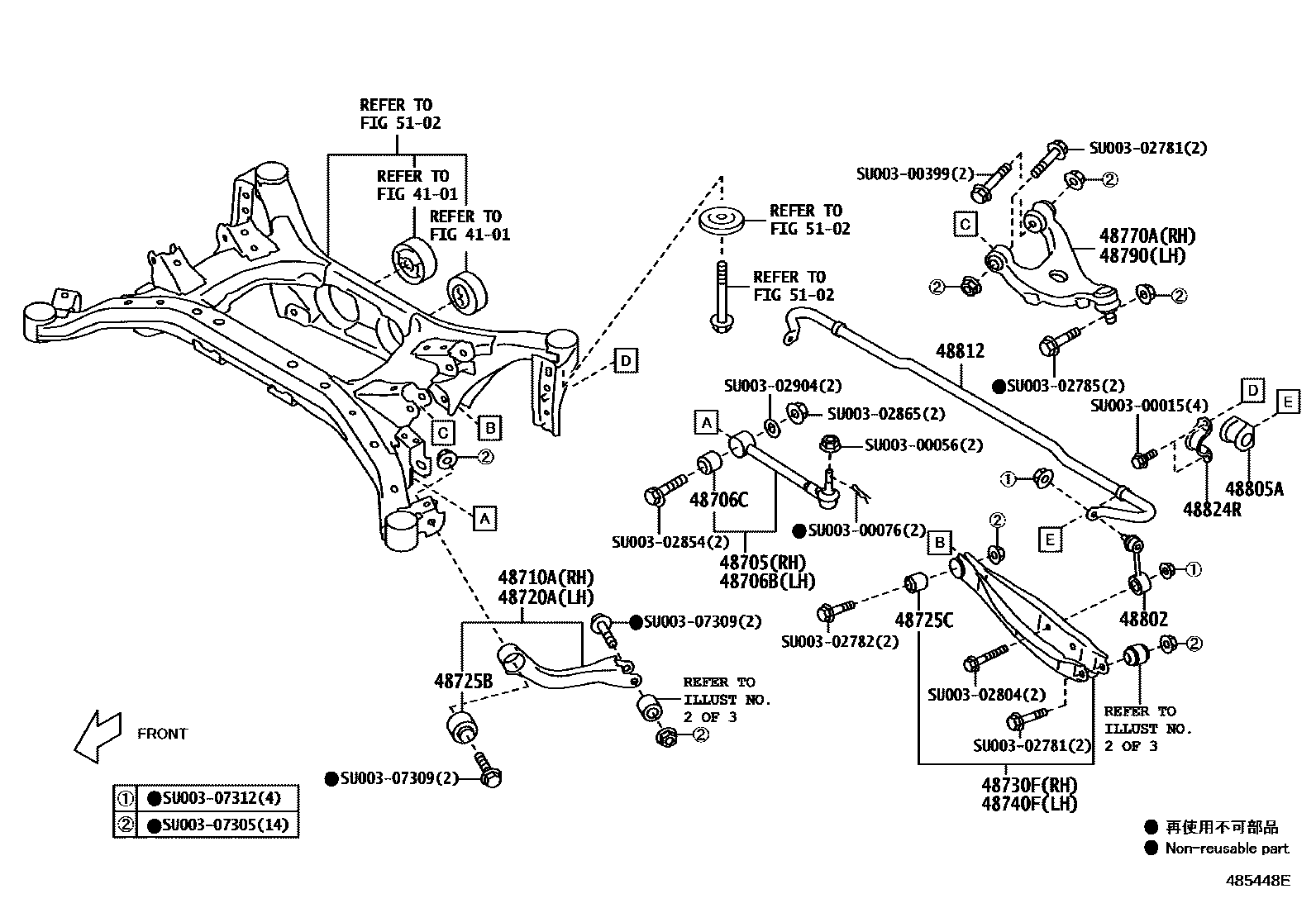

Toyota GR 86 — REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

4101

48705LINK SUB-ASSY, TOE CONTROL, RH

mainSU00300362iZN8202203-202310

48706BLINK SUB-ASSY, TOE CONTROL, LH

mainSU00300362iZN8202203-202310

48706CBUSH SUB-ASSY, LATERAL CONTROL ROD

mainSU00300367iZN8202203-202310

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

mainSU00300360iZN8202203-202310

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

mainSU00300360iZN8202203-202310

48725BBUSH, REAR SUSPENSION ARM, NO.1

mainSU00300366iZN8202203-202310

48725CBUSH, REAR SUSPENSION ARM, NO.2

mainSU00300365iZN8202203-202310

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

mainSU00308417iZN8202203-202310

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

mainSU00308417iZN8202203-202310

48770AARM ASSY, UPPER CONTROL, REAR RH

mainSU00307492iZN8202203-202310

48790ARM ASSY, UPPER CONTROL, REAR LH

mainSU00307493iZN8202203-202310

48802LINK SUB-ASSY, STABILIZER

mainSU00300398iZN8202203-202310

48805ABUSH(FOR REAR STABILIZER BAR)

mainSU00306462iZN8202203-202310

48812BAR, STABILIZER, REAR

mainSU00306461iZN8202203-202310

48824RBRACKET, STABILIZER(FOR REAR)

mainSU00300397iZN8202203-202310

5102

SU00300015

mainSU003-00015¥30

SU00300056

mainSU003-00056¥60

SU00300076

mainSU003-00076¥60

SU00300399

mainSU003-00399¥280

SU00302781

mainSU003-02781¥190

SU00302782

mainSU003-02782¥160

SU00302785

mainSU003-02785¥240

SU00302804

mainSU003-02804¥130

SU00302854

mainSU003-02854¥660

SU00302865

mainSU003-02865¥270

SU00302904

mainSU003-02904¥250

SU00307305

mainSU003-07305¥290

SU00307309

mainSU003-07309¥300

SU00307312

mainSU003-07312¥80

31 parts on this diagram · 3 diagrams in section
