Toyota GR 86 — RADIO RECEIVER & AMPLIFIER & CONDENSER

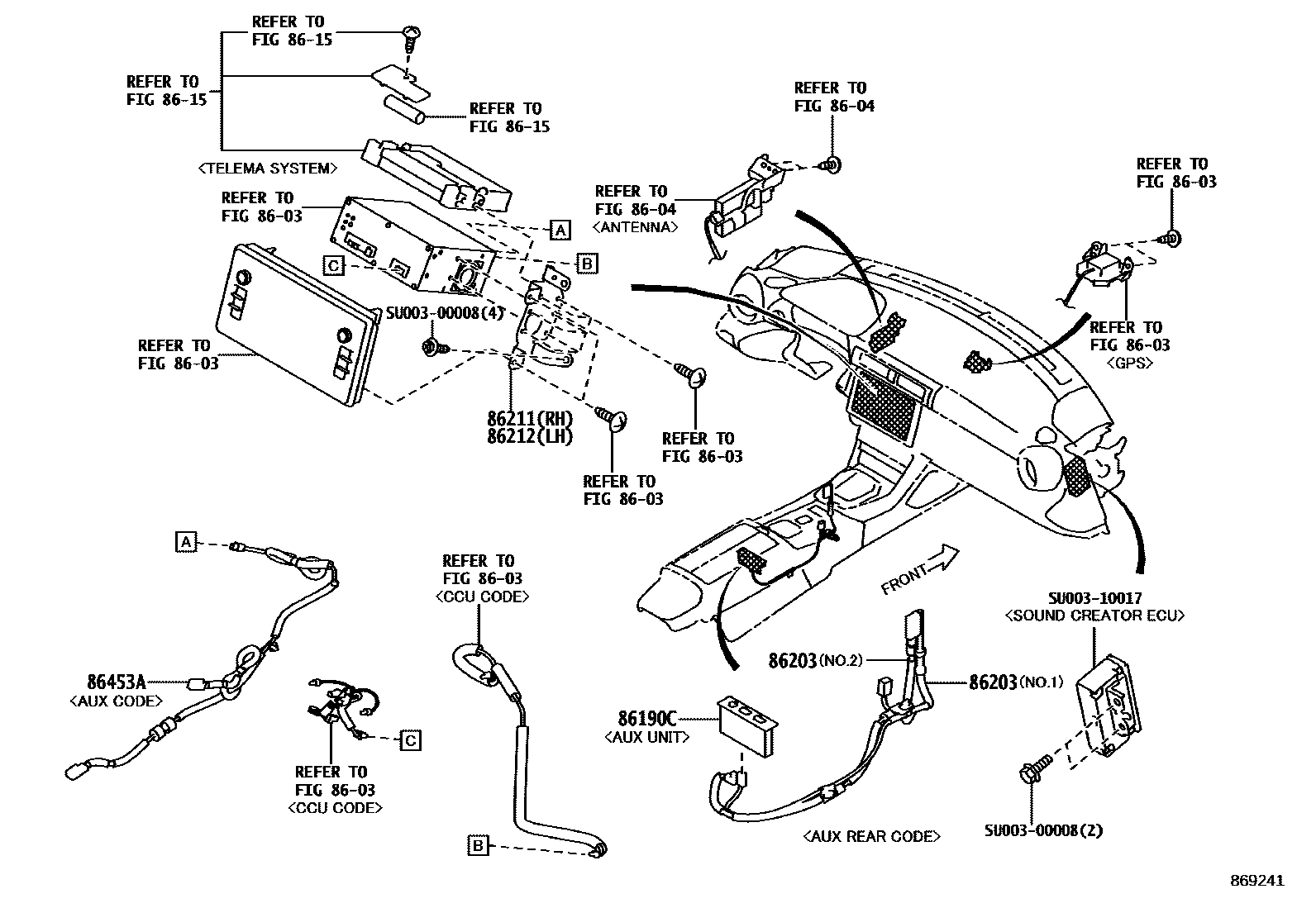

Parts diagram
8603
8604
8615
86190CADAPTER ASSY, STEREO JACK, NO.1
mainSU00309645i202203-202302
subSU003-11399¥12,200
mainSU00311399i202302-202310
86203WIRE, RADIO
mainSU00309647i202203-202302
NO.1
mainSU00309648i202203-202302
NO.1
mainSU00309649i202203-202302
NO.1
mainSU00309650i202203-202302
NO.1
subSU003-11346¥9,900
mainSU00309651i202203-202206
NO.2
mainSU00310129i202203-202302
NO.1
mainSU00310130i202203-202302
NO.1
mainSU00310131i202203-202302
NO.1
mainSU00310132i202203-202302
NO.1
mainSU00310133i202203-202206
NO.2
mainSU00311339i202408
mainSU00311339i202302-202310
NO.1
mainSU00311340i202302-202310
NO.1
mainSU00311340i202408
mainSU00311341i202408
mainSU00311341i202302-202310
NO.1
mainSU00311342i202408
mainSU00311342i202302-202310
NO.1
mainSU00311343i202302-202310
NO.1
mainSU00311343i202408
mainSU00311344i202302-202310
NO.1
mainSU00311344i202408
mainSU00311345i202302-202310
NO.1
mainSU00311345i202408
mainSU00311346i202302-202310
NO.1
mainSU00311346i202408
86211BRACKET, RADIO, NO.1
mainSU00309816i202203-202310
86212BRACKET, RADIO, NO.2
mainSU00309817i202203-202310
86453AWIRE, MULTI-MEDIA MODULE
mainSU00309653i202203-202310
SU00300008
mainSU003-00008¥20
SU00310017
mainSU003-10017

10 parts on this diagram · 3 diagrams in section
