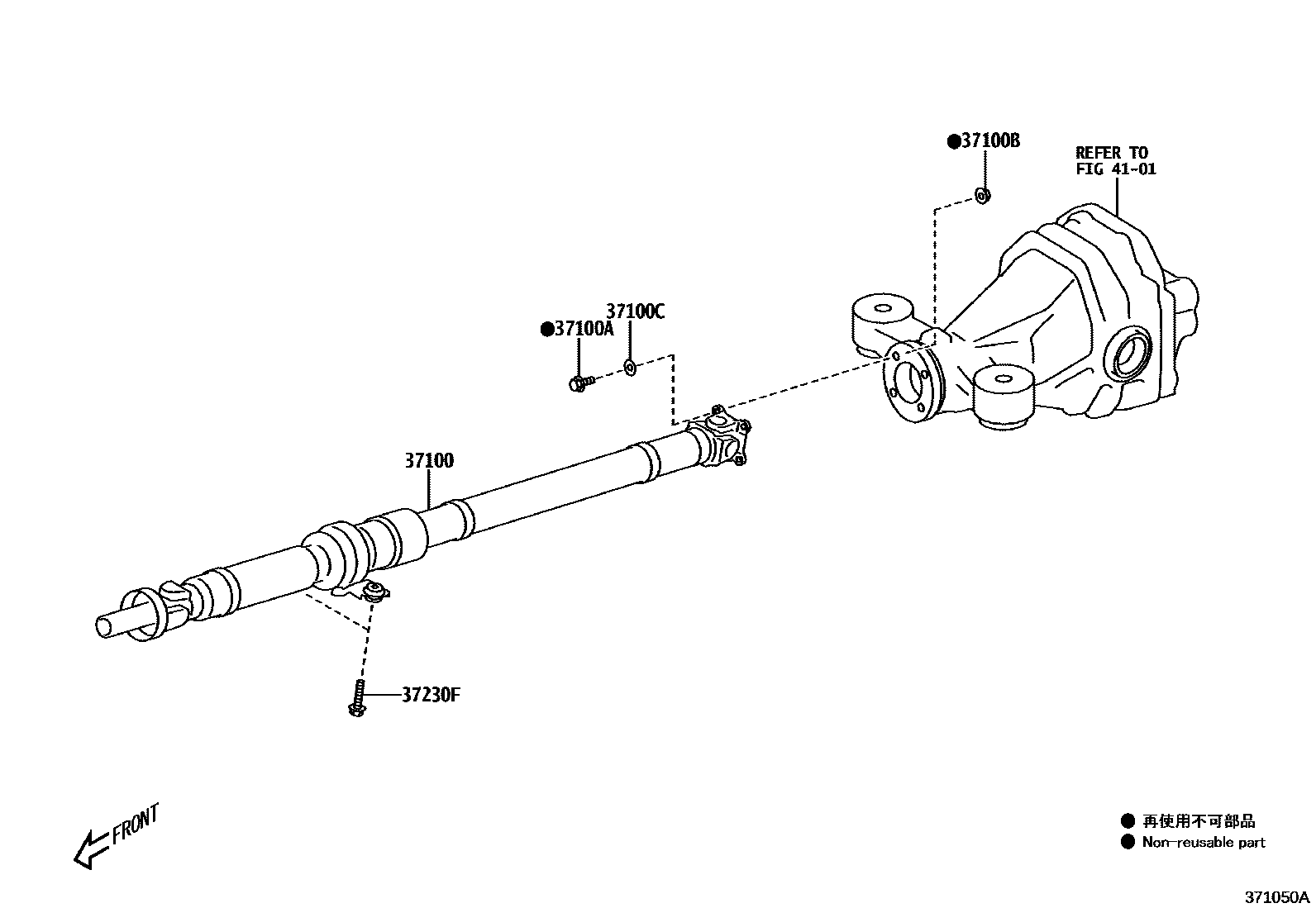

Toyota GR 86 — PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

mainSU00308583iZN8..6F202203-202206

mainSU00308583iZN8..6F..B202206-202310

mainSU00308583iZN8..6F..C202311

mainSU00308583iZN8..6F..D202408

mainSU00308584iZN8..6FC..C202311

mainSU00308584iZN8..6FC202203-202206

mainSU00308584iZN8..6FC..D202408

mainSU00308584iZN8..6FC..B202206-202310

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

mainSU00302814iZN8202203-202206

mainSU00302814iZN8..D202408

mainSU00302814iZN8..C202311

mainSU00302814iZN8..B202206-202310

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

mainSU00302884iZN8202203-202206

mainSU00302884iZN8..B202206-202310

mainSU00302884iZN8..C202311

mainSU00302884iZN8..D202408

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

mainSU00302903iZN8202203-202206

mainSU00302903iZN8..B202206-202310

mainSU00302903iZN8..C202311

mainSU00302903iZN8..D202408

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

mainSU00302843iZN8202203-202206

mainSU00302843iZN8..B202206-202310

mainSU00302843iZN8..C202311

mainSU00302843iZN8..D202408

4101

6 parts on this diagram · 1 diagram in section
