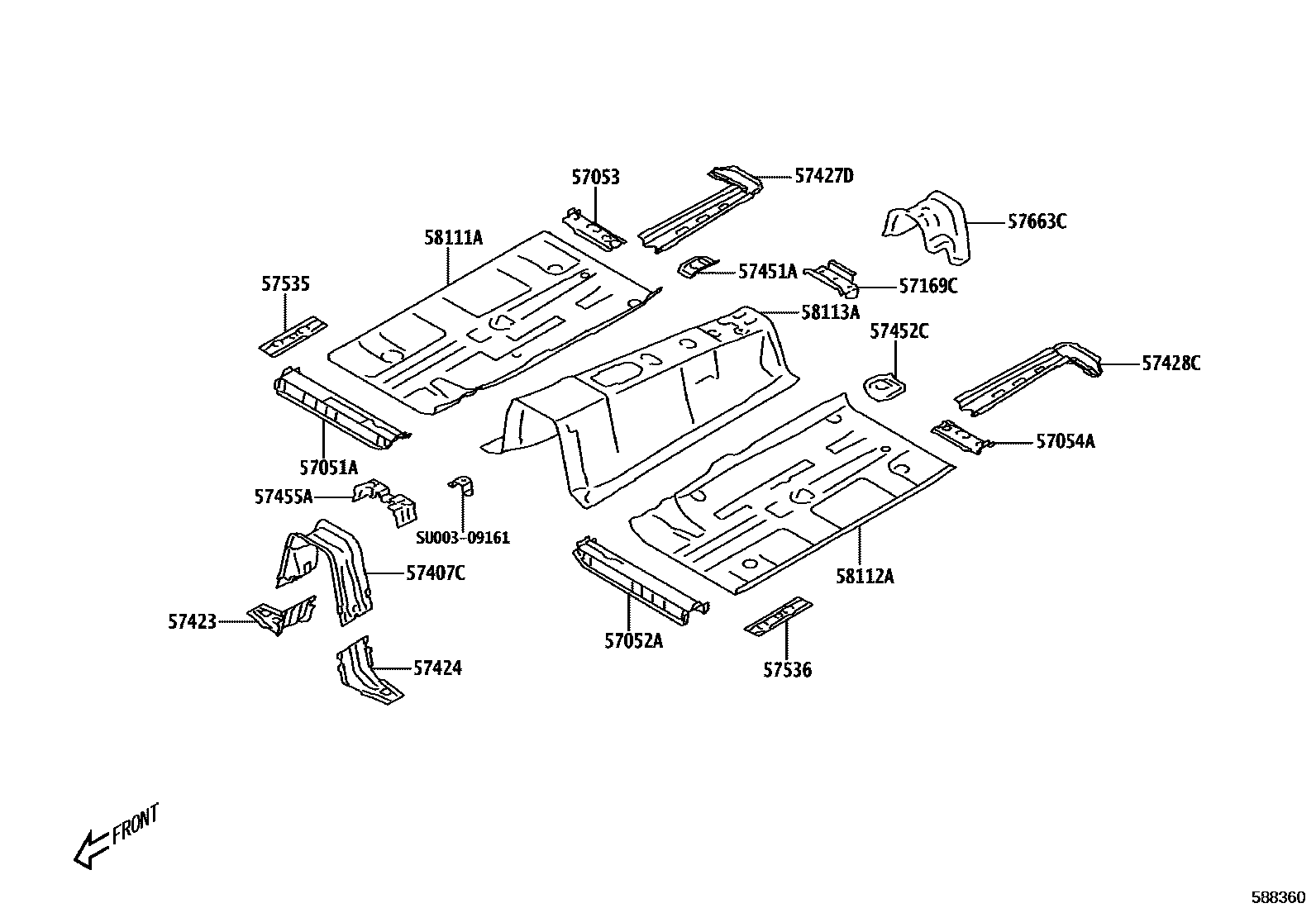

Toyota GR 86 — FLOOR PAN & LOWER BACK PANEL
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57169CPATCH, FRONT FLOOR, REAR
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57455ABRACKET, FRONT FLOOR CROSSMEMBER
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
57663CMEMBER, REAR FLOOR CROSS, CENTER
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
SU00309161
20 parts on this diagram · 4 diagrams in section
