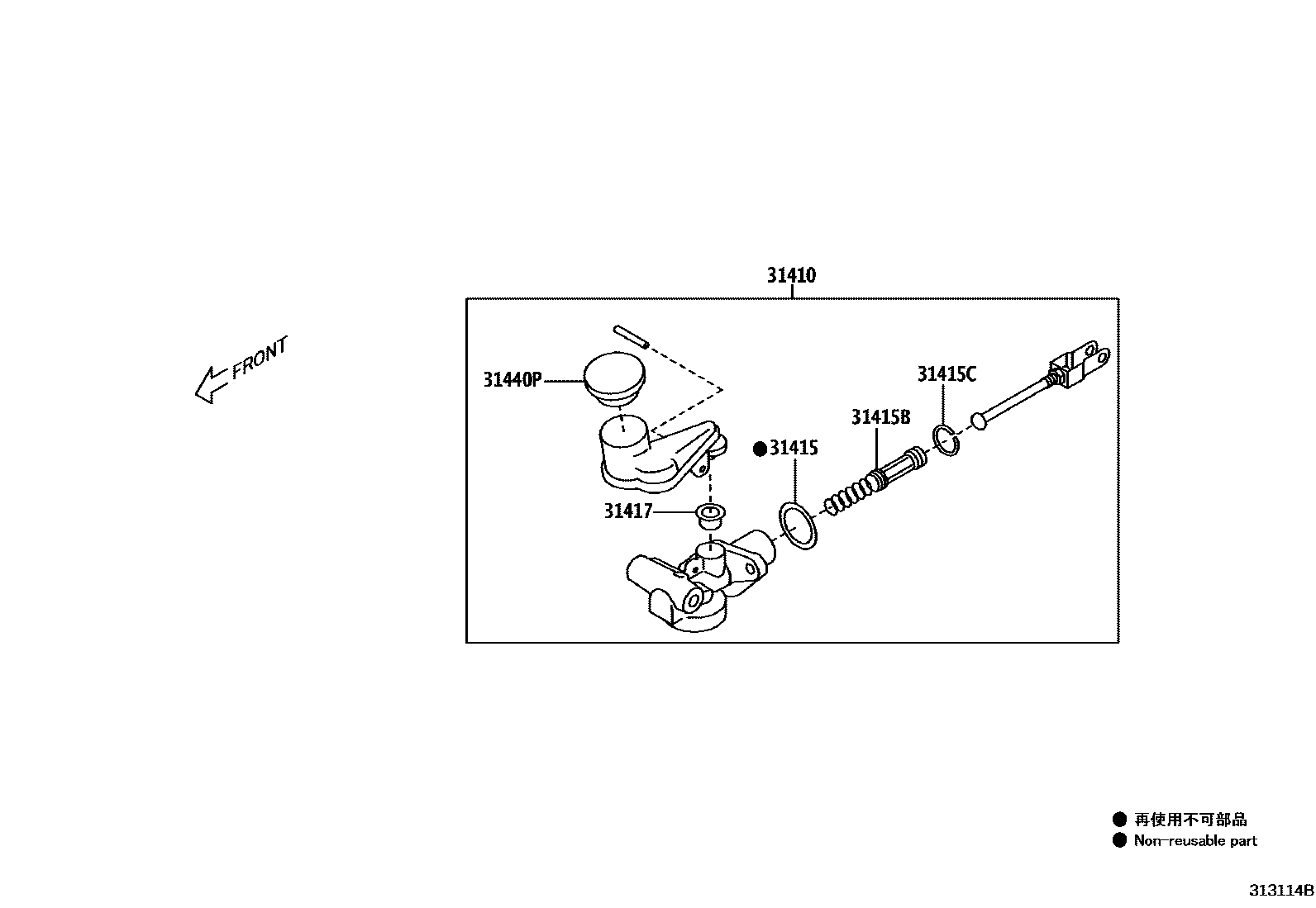

Toyota GR 86 — CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

mainSU00309880iZN8..LHD..6F..C202203-202310

mainSU00310674iZN8..RHD..6F202203-202310

31415GASKET, CLUTCH MASTER CYLINDER

mainSU00300994iZN8..6F202203-202310

31415BPISTON ASSY

mainSU00300992iZN8..6F..C202203-202310

31415CSTOP RING

mainSU00300126iZN8..6F202203-202310

31417GROMMET, CLUTCH RESERVOIR

mainSU00300592iZN8..6F202203-202310

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

mainSU00310676iZN8..6F202203-202310

6 parts on this diagram · 2 diagrams in section
