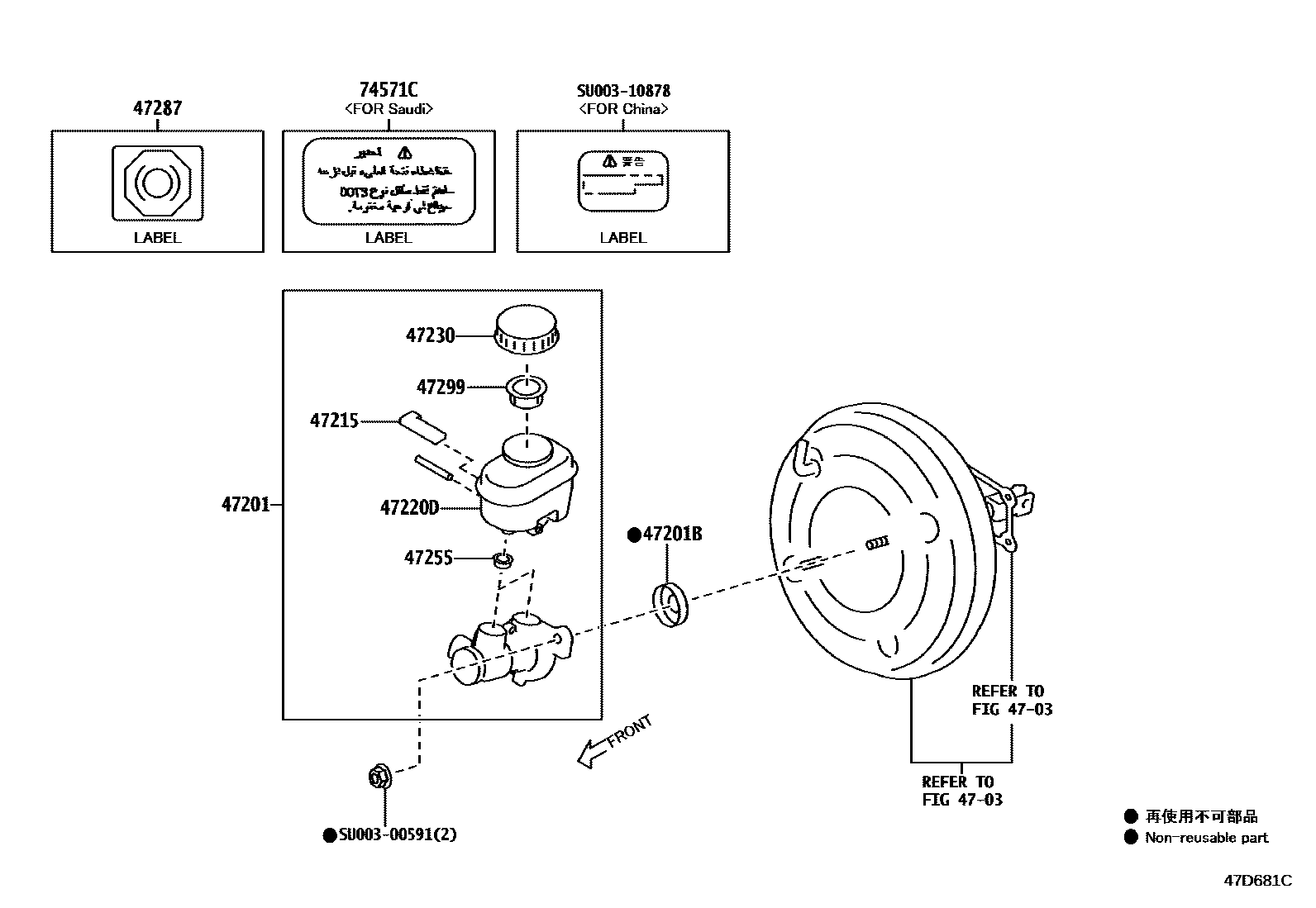

Toyota GR 86 — BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

mainSU00309708iZN8..LHD..C202203-202310

mainSU00310513iZN8..RHD..D202203-202310

47201BRING, O(FOR BRAKE MASTER CYLINDER)

mainSU00300593iZN8..C202203-202310

subSU003-12052¥900

47215INDICATOR, BRAKE FLUID

mainSU00304246iZN8202203-202310

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

mainSU00310515iZN8202203-202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

mainSU00310494iZN8202203-202310

47255GROMMET, MASTER CYLINDER RESERVOIR

mainSU00304245iZN8202203-202310

47287LABEL, BRAKE FLUID INFORMATION

mainSU00300565iZN8202203-202310

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

mainSU00304243iZN8202203-202310

74571CLABEL, BRAKE FLUID INFORMATION

mainSU00310701iZN8..LHD202203-202310

SU00300591

mainSU003-00591¥40

SU00310878

mainSU003-10878¥230

12 parts on this diagram · 2 diagrams in section
