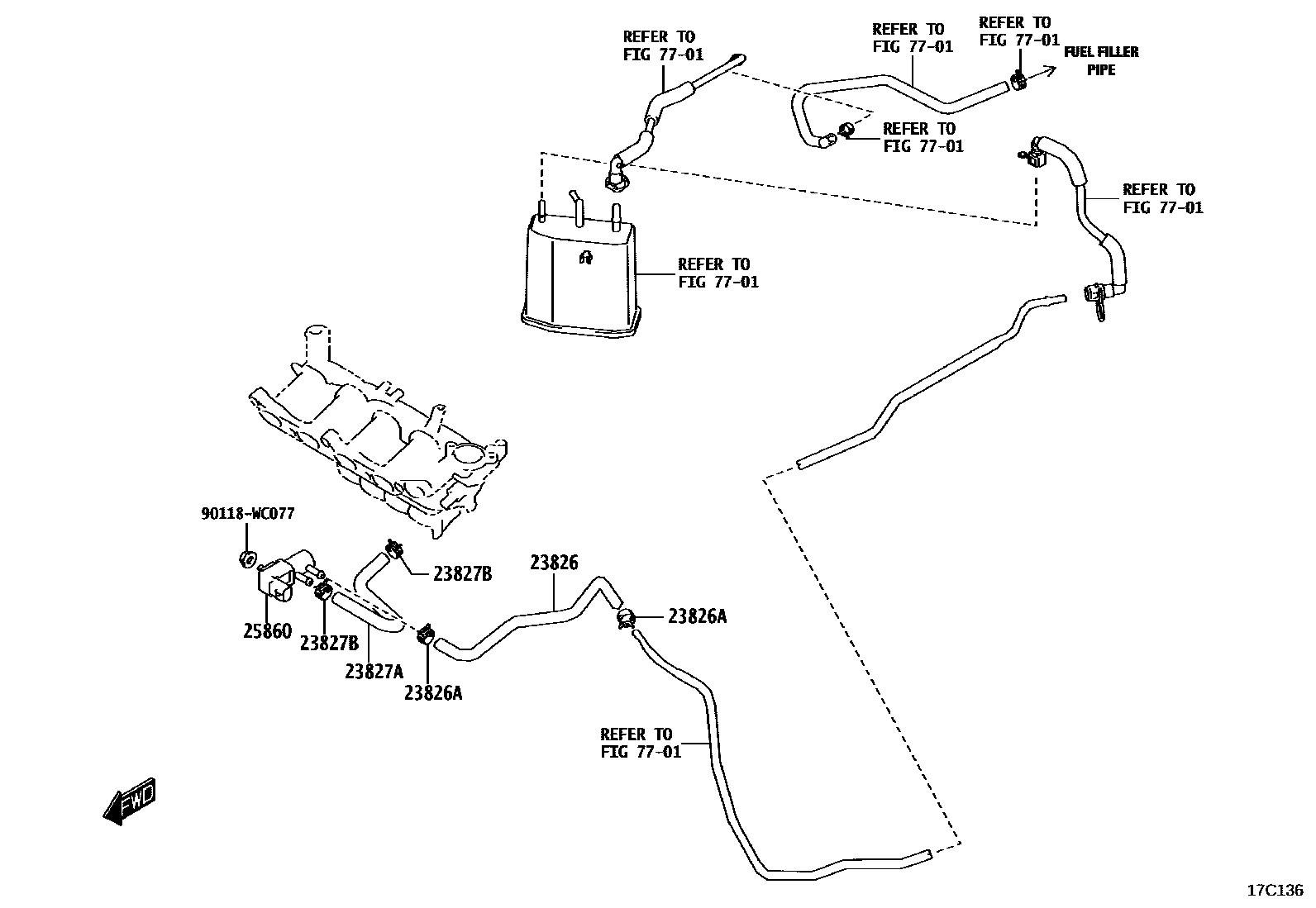

Toyota GLANZA — VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-WC002

main23826-WC011

main23826-WC027

main23826-WC028

main90118-WC234

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

23827AHOSE, FUEL VAPOR FEED, NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-WC001

7701

90118WC077

main90118-WC077

7 parts on this diagram · 1 diagram in section
