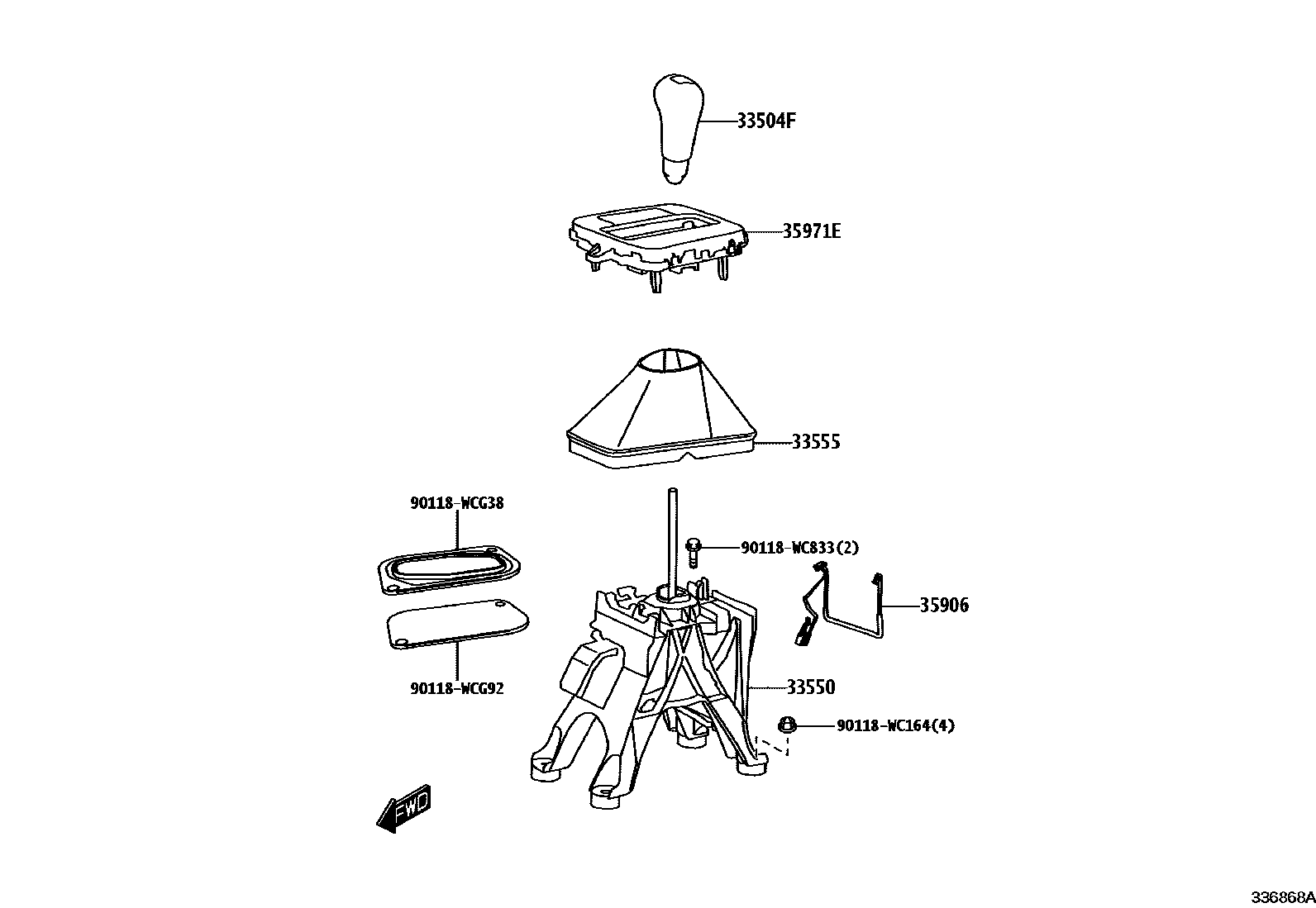

Toyota GLANZA — SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-WC005

33555BOOT, SHIFT LEVER

main58808-WC012

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-WC012

35971EHOUSING, POSITION INDICATOR

90118WC164

main90118-WC164

90118WC833

main90118-WC833

90118WCG38

main90118-WCG38

90118WCG92

main90118-WCG92

9 parts on this diagram · 2 diagrams in section
