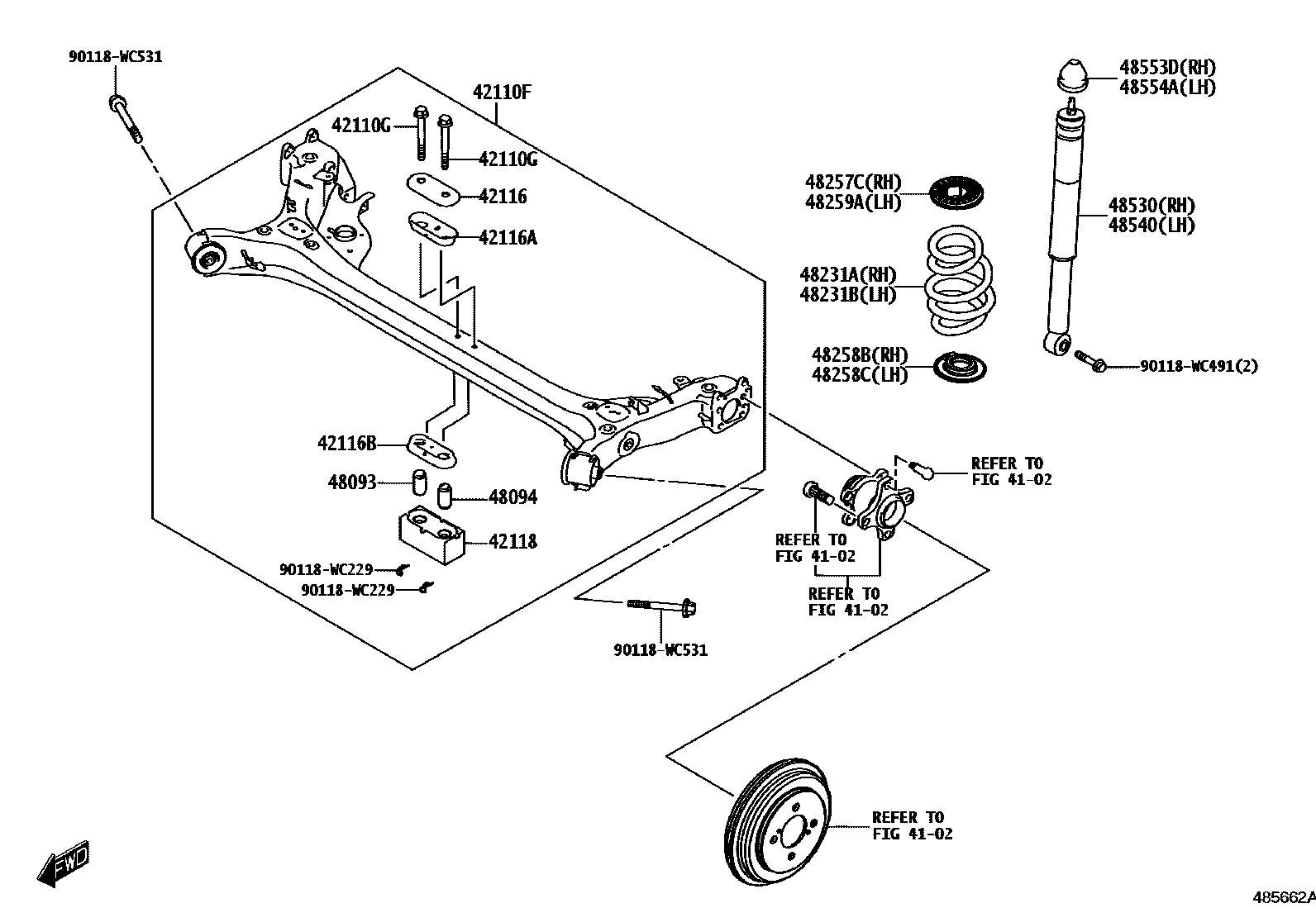

Toyota GLANZA — REAR SPRING & SHOCK ABSORBER

4102

42110FBEAM ASSY, REAR AXLE

42110GBOLT (FOR REAR AXLE BEAM)

42116COVER, REAR AXLE BEAM

main90118-WCU43

main90118-WCU46

42116ACUSHION, NO.1 (FOR REAR AXLE BEAM COVER)

42116BCUSHION, NO.2 (FOR REAR AXLE BEAM COVER)

42118DAMPER, REAR AXLE BEAM

main90118-WCU45

48093SLEEVE SUB-ASSY, REAR SUSPENSION, RH

main90118-WCU44

48094SLEEVE SUB-ASSY, REAR SUSPENSION, LH

main90118-WCU44

48231ASPRING, COIL, REAR RH

48231BSPRING, COIL, REAR LH

48257CINSULATOR, REAR COIL SPRING, UPPER RH

48258BINSULATOR, REAR COIL SPRING, LOWER RH

48258CINSULATOR, REAR COIL SPRING, LOWER LH

48259AINSULATOR, REAR COIL SPRING, UPPER LH

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-WC021

main48530-WC022

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-WC021

main48530-WC022

48553DCAP, REAR SHOCK ABSORBER, RH

48554ACAP, REAR SHOCK ABSORBER, LH

90118WC229

main90118-WC229

90118WC491

main90118-WC491

90118WC531

main90118-WC531

22 parts on this diagram · 1 diagram in section
