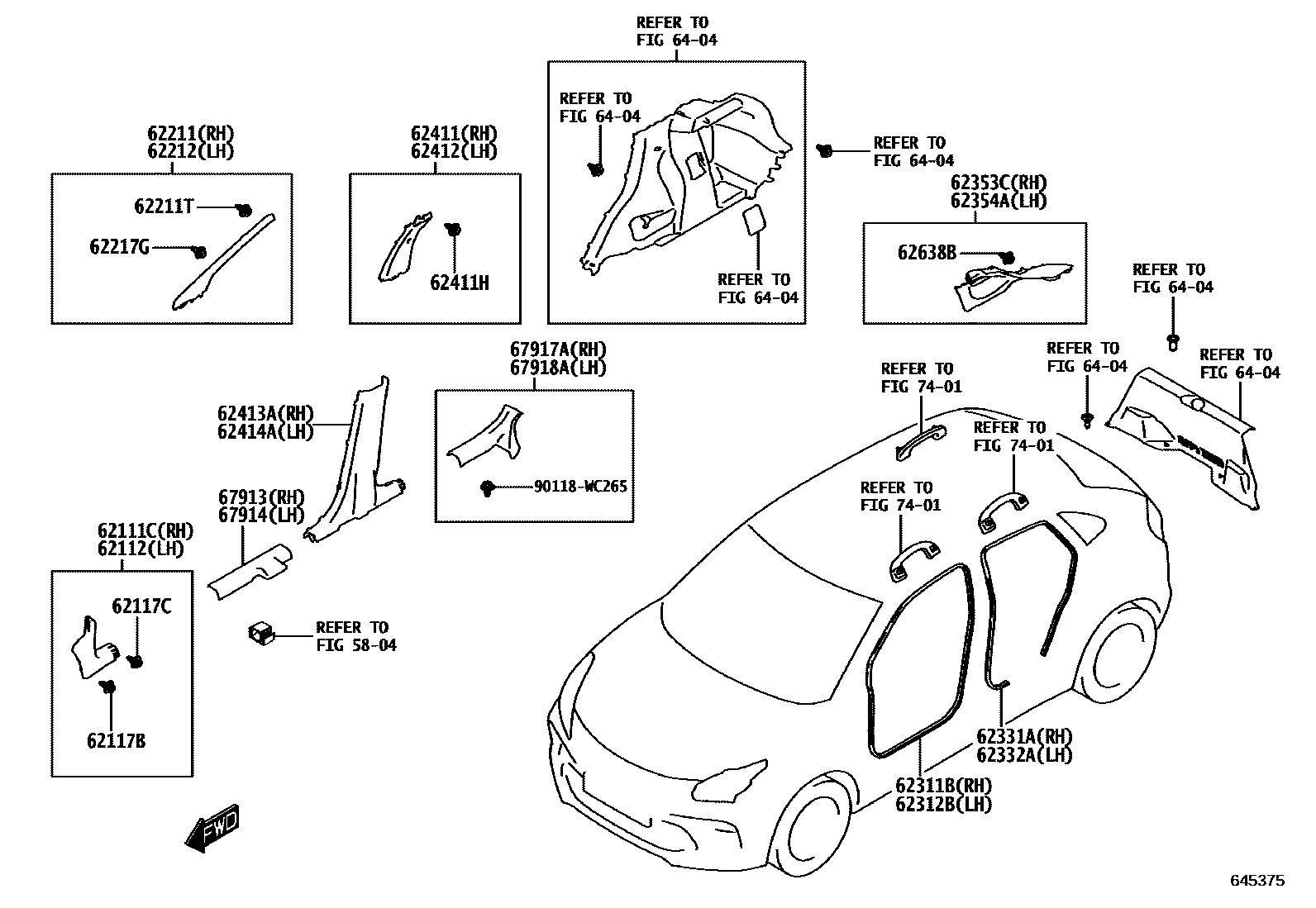

Toyota GLANZA — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

5804

62111CBOARD, COWL SIDE TRIM, RH

62112BOARD, COWL SIDE TRIM, LH

main62112-WC005

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

62211GARNISH, FRONT PILLAR, RH

main62211-WC005

main90118-WC265

62211TCLIP(FOR FRONT PILLAR GARNISH)

62212GARNISH, FRONT PILLAR, LH

main62212-WC005

62217GCLIP, FRONT PILLAR GARNISH

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

62353CTRIM, QUARTER WINDOW INSIDE, RH

62354ATRIM, QUARTER WINDOW INSIDE, LH

62411GARNISH, CENTER PILLAR, RH

main62411-WC008

main62411-WC009

main90118-WC265

62411HCLIP

62412GARNISH, CENTER PILLAR, LH

main62412-WC008

main62412-WC009

62413AGARNISH, CENTER PILLAR, LOWER RH

62414AGARNISH, CENTER PILLAR, LOWER LH

62638BCLIP

6404

67913PLATE, FRONT DOOR SCUFF, RH

main67913-WC005

67914PLATE, FRONT DOOR SCUFF, LH

main67914-WC005

67917APLATE, REAR DOOR SCUFF, RH

67918APLATE, REAR DOOR SCUFF, LH

7401

90118WC265

main90118-WC265

28 parts on this diagram · 2 diagrams in section
