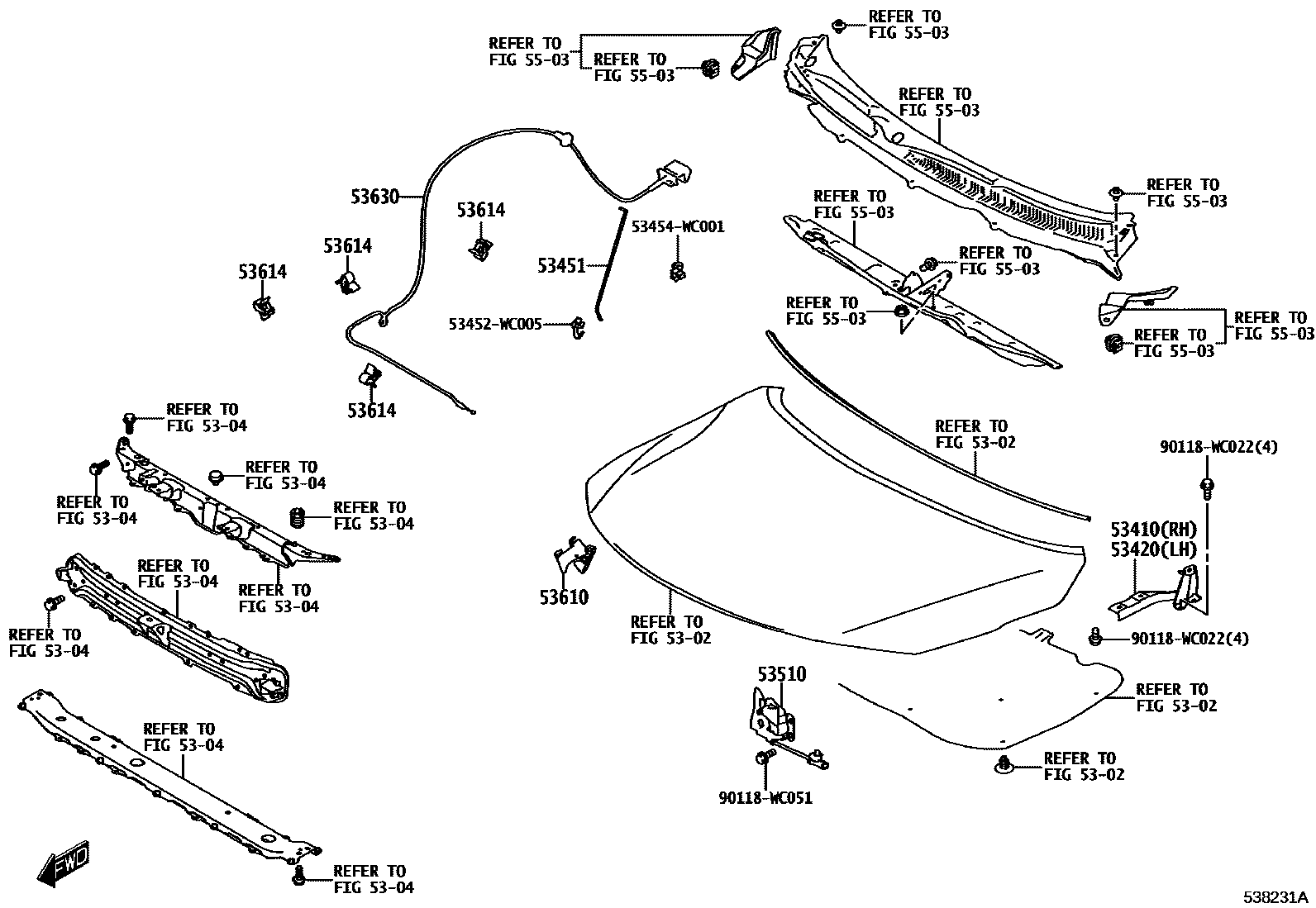

Toyota GLANZA — HOOD LOCK & HINGE

5302

5304

53410HINGE ASSY, HOOD, RH

main53410-WC005

53420HINGE ASSY, HOOD, LH

main53420-WC005

53451ROD, HOOD SUPPORT

main53440-WC005

53510LOCK ASSY, HOOD

main53510-WC012

main53510-WC013

53610LEVER ASSY, HOOD LOCK RELEASE

main53510-WC015

53614CLAMP, HOOD LOCK CONTROL CABLE

main90118-WCC55

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC006

5503

53452WC005HOLDER, HOOD STAY

main53452-WC005

53454WC001CLIP, HOOD SUPPORT ROD

main53454-WC001

90118WC022

main90118-WC022

90118WC051

main90118-WC051

14 parts on this diagram · 1 diagram in section
