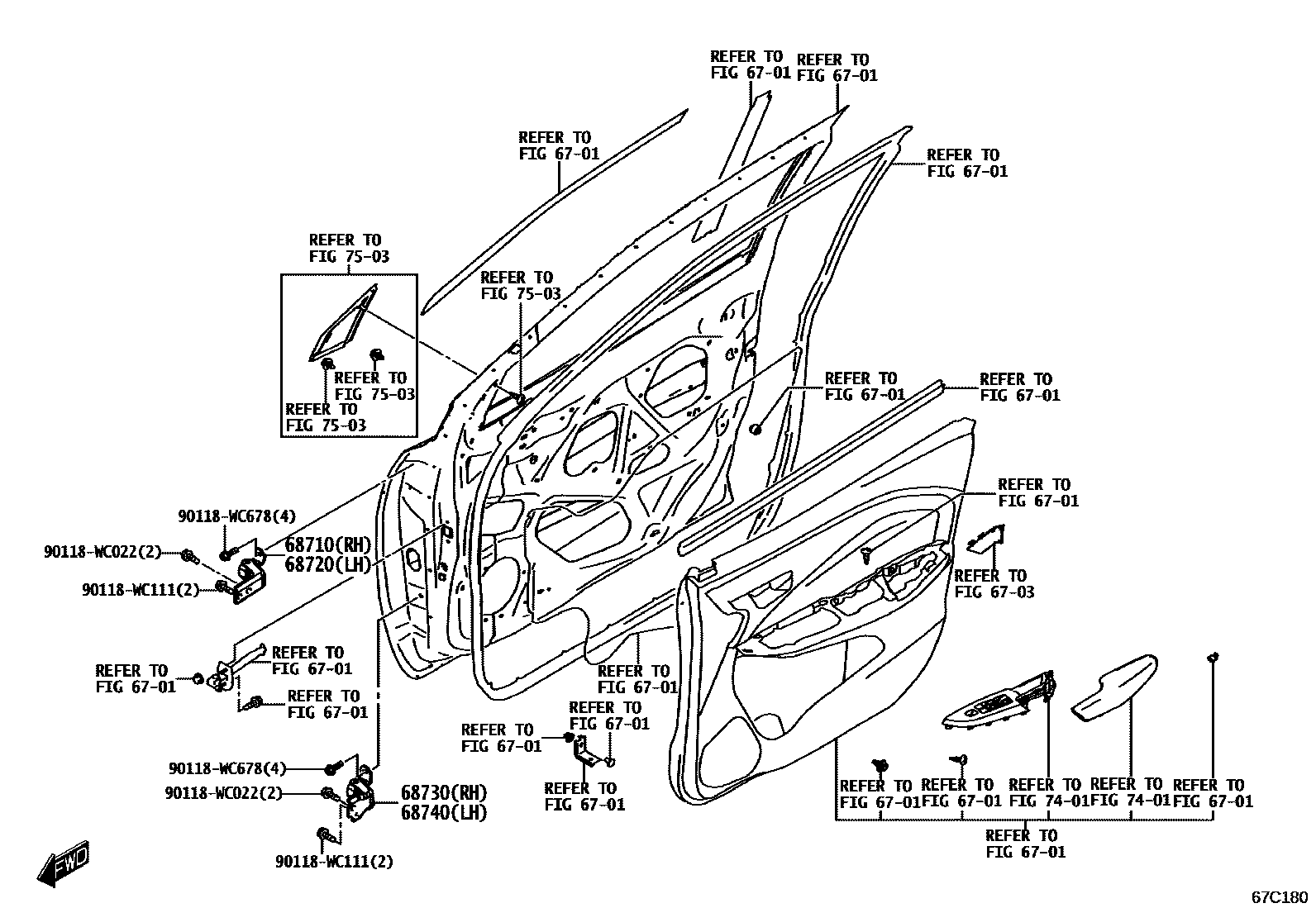

Toyota GLANZA — FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6701

6703

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-WC001

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-WC001

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-WC001

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-WC001

7401

7503

90118WC022

main90118-WC022

90118WC111

main90118-WC111

90118WC678

main90118-WC678

11 parts on this diagram · 2 diagrams in section
