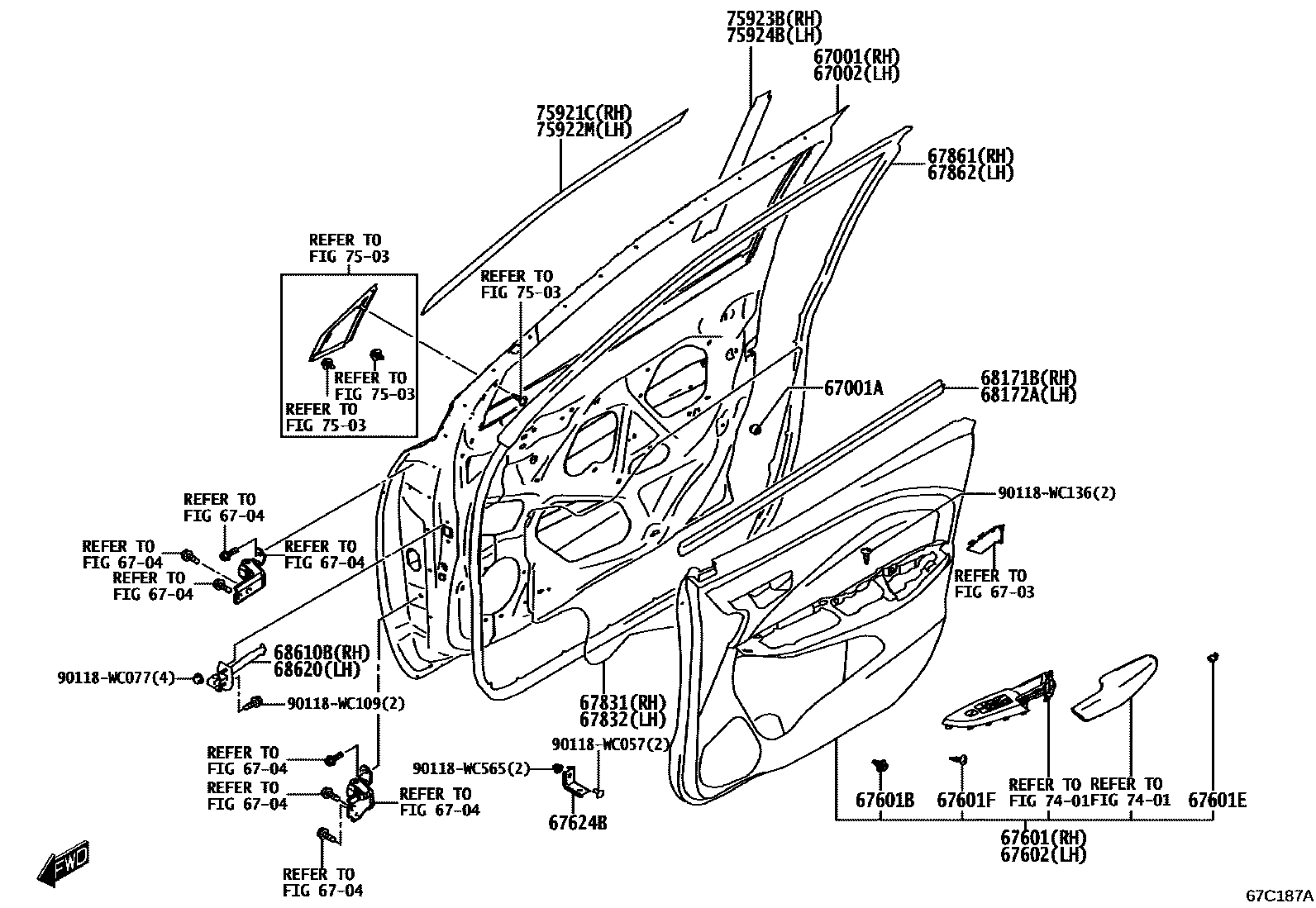

Toyota GLANZA — FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-WC012

main90118-WC601

67001ACUSHION, FRONT DOOR PANEL

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-WC012

6703

6704

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-WC017

main67610-WC018

main90118-WC060

main90118-WC265

main90118-WC606

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

67601ECAP(FOR FRONT DOOR TRIM BOARD)

67601FSCREW(FOR FRONT DOOR TRIM BOARD)

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-WC017

main67620-WC018

67624BBRACKET, FRONT DOOR TRIM BOARD

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-WC005

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-WC005

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-WC005

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-WC005

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

68610BCHECK ASSY, FRONT DOOR, RH

68620CHECK ASSY, FRONT DOOR, LH

main68610-WC017

7401

7503

75921CTAPE, BLACK OUT, NO.1 RH

75922MTAPE, BLACK OUT, NO.1 LH

75923BTAPE, BLACK OUT, NO.2 RH

75924BTAPE, BLACK OUT, NO.2 LH

90118WC057

main90118-WC057

90118WC077

main90118-WC077

90118WC109

main90118-WC109

90118WC136

main90118-WC136

90118WC565

main90118-WC565

30 parts on this diagram · 4 diagrams in section
