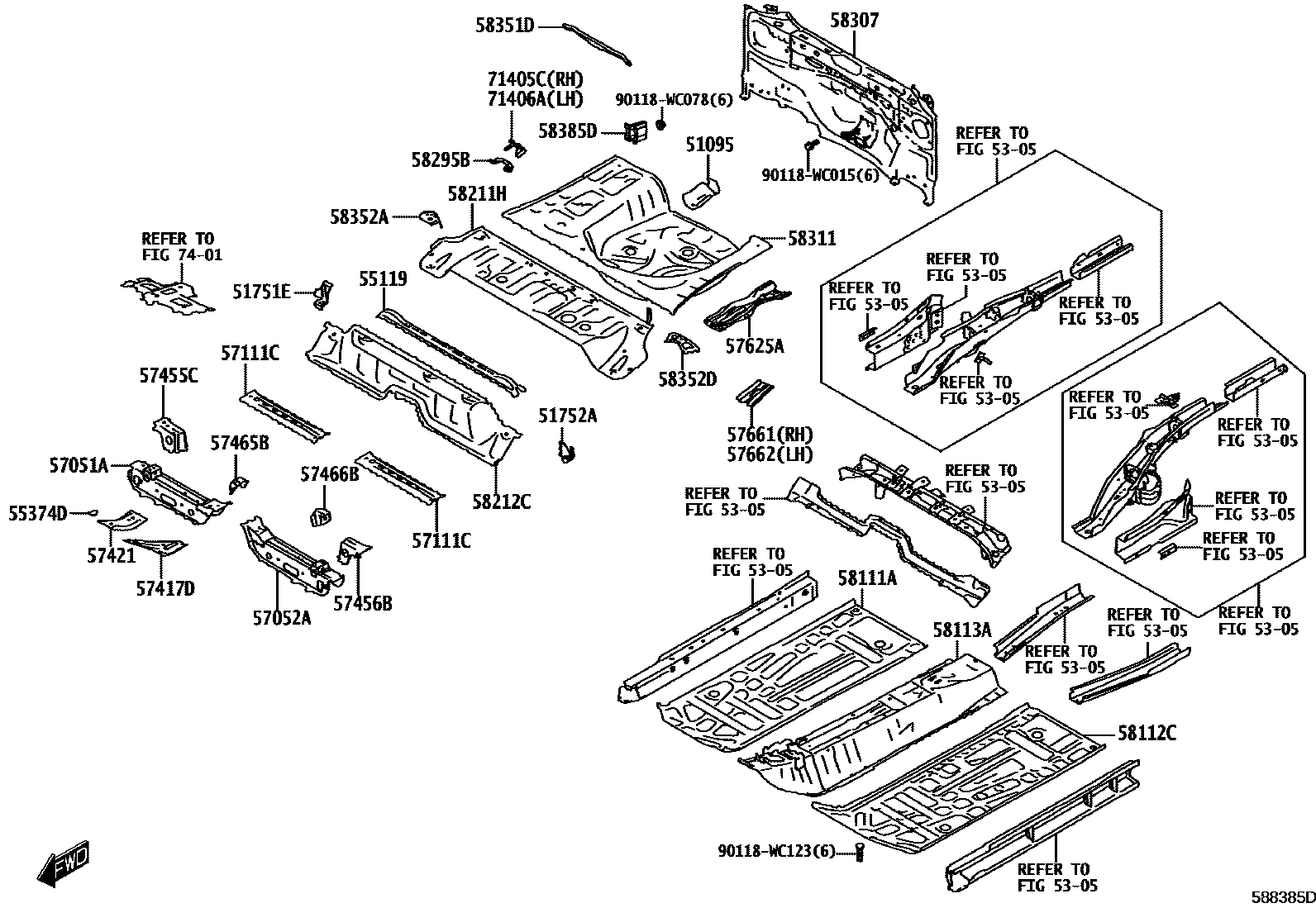

Toyota GLANZA — FLOOR PAN & LOWER BACK PANEL
51095HOOK, TRANSPORT, REAR
51751EBRACKET, BODY SUPPORT, NO.1 RH
51752ABRACKET, BODY SUPPORT, NO.1 LH
5305
55119MEMBER, SEAT RISER, CENTER
main57661-WC002
55374DBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57111CCROSSMEMBER, FLOOR, NO.1
57417DREINFORCEMENT, FLOOR SIDE, INNER RH
57421REINFORCEMENT, FRONT FLOOR, NO.1
main57145-WC001
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57465BBRACKET, FRONT SEAT, INNER
57466BBRACKET, FRONT SEAT, INSIDE LH
57625AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR OUTSIDE
57661PANEL, REAR FLOOR SIDE, FRONT RH
main57661-WC004
57662PANEL, REAR FLOOR SIDE, FRONT LH
main57661-WC004
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58295BREINFORCEMENT, SEAT BELT ANCHOR FLOOR
58351DREINFORCEMENT, REAR FLOOR PANEL
58352ABRACKET, REAR FLOOR STAY
58352DBRACKET, REAR FLOOR STAY
58385DBRACKET, REAR BUMPER COVER
71405CSTRIKER SUB-ASSY, REAR SEAT LOCK, RH
71406ASTRIKER SUB-ASSY, REAR SEAT LOCK, LH
7401
90118WC015
main90118-WC015
90118WC078
main90118-WC078
90118WC123
main90118-WC123
36 parts on this diagram · 4 diagrams in section
