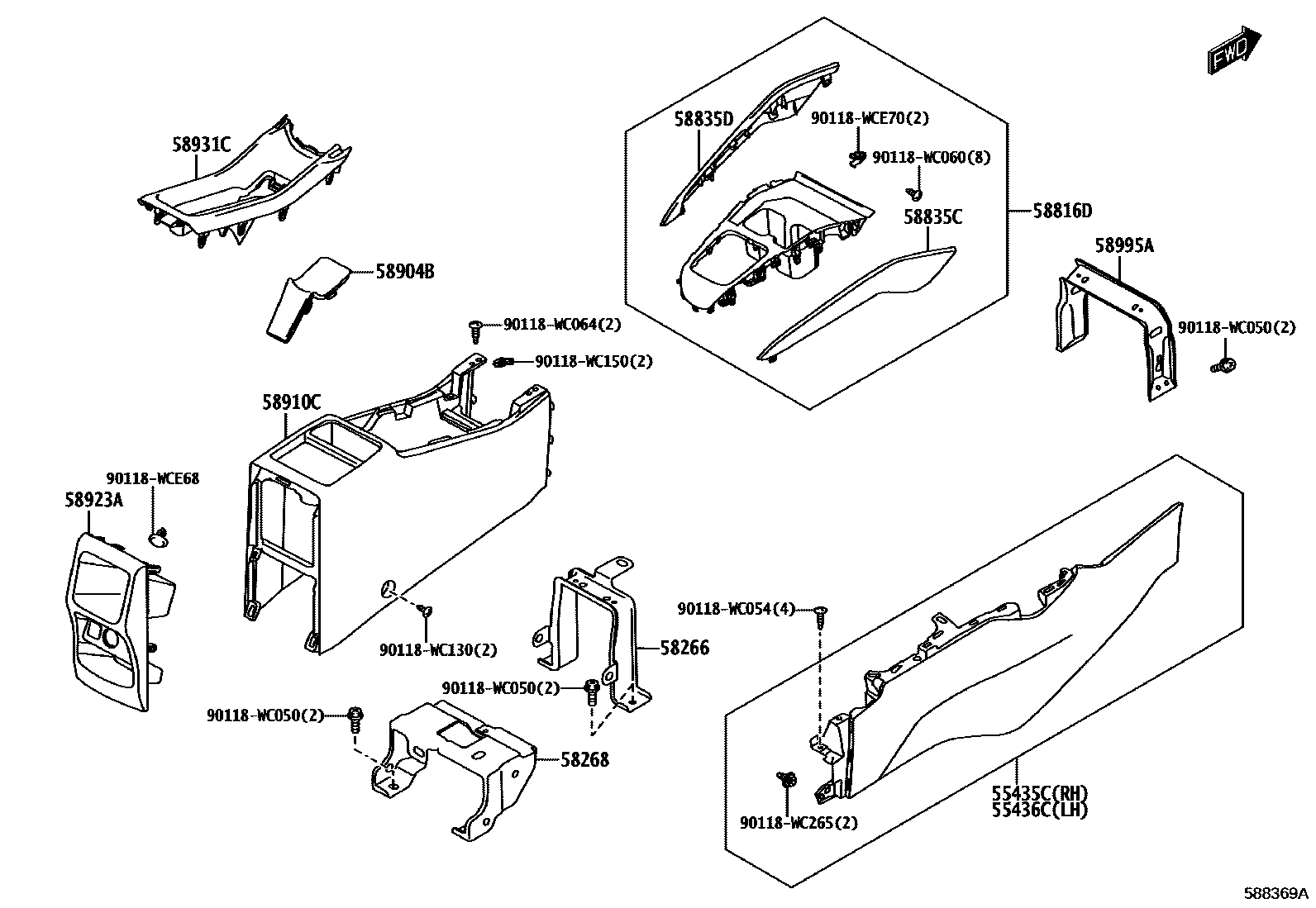

Toyota GLANZA — CONSOLE BOX & BRACKET

0001 1W/O(REAR VENTILATION) 0002 1W(REAR VENTILATION) 0003 1

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58997-WC009

main58995-WC013

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58821-WC003

main58821-WC004

58816DINSERT, CONSOLE BOX, FRONT NO.1

58835CORNAMENT, CONSOLE BOX

58835DORNAMENT, CONSOLE BOX, NO.2

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

58910CBOX ASSY, CONSOLE, REAR

58923APANEL, CONSOLE REAR END

58931CGARNISH, REAR CONSOLE UPPER PANEL

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

90118WC050

main90118-WC050

90118WC054

main90118-WC054

90118WC060

main90118-WC060

90118WC064

main90118-WC064

90118WC130

main90118-WC130

90118WC150

main90118-WC150

90118WC265

main90118-WC265

90118WCE68

main90118-WCE68

90118WCE70

main90118-WCE70

21 parts on this diagram · 3 diagrams in section
