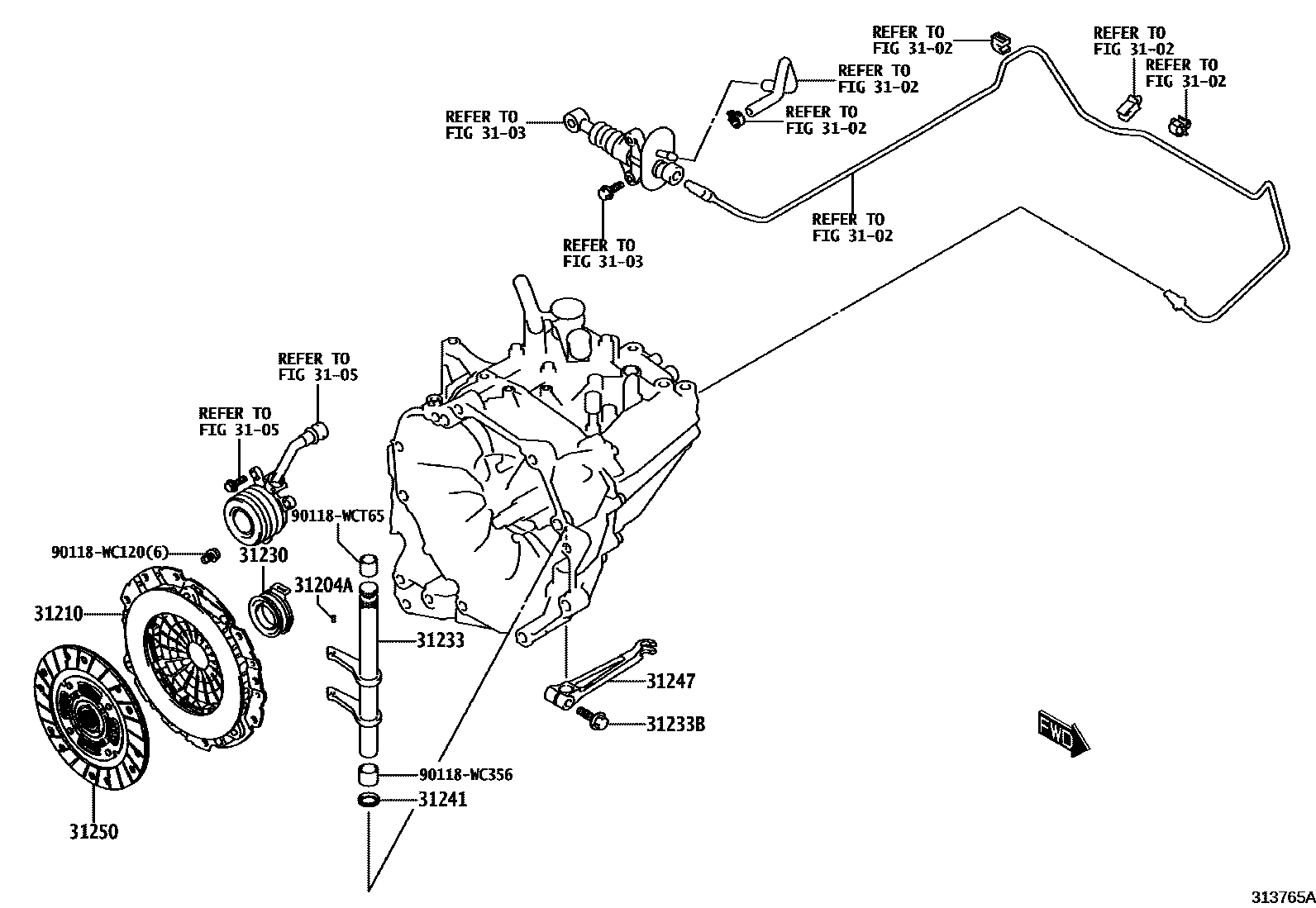

Toyota GLANZA — CLUTCH & RELEASE FORK

0001 1 0002 1

3102

3103

3105

31204APIN(FOR CLUTCH RELEASE FORK)

31210COVER ASSY, CLUTCH

main31210-WC005

main31210-WC006

31230BEARING ASSY, CLUTCH RELEASE

main31230-WC002

31233FORK, CLUTCH RELEASE

main31247-WC002

main90118-WC025

31233BBOLT(FOR RELEASE FORK & RELEASE LEVER SETTING)

31241SEAL, CLUTCH RELEASE FORK DUST

main90118-WC354

31247LEVER, CLUTCH RELEASE FORK

main33229-WC002

main33229-WC003

31250DISC ASSY, CLUTCH

main31250-WC005

main31250-WC006

90118WC120

main90118-WC120

90118WC356

main90118-WC356

90118WCT65

main90118-WCT65

14 parts on this diagram · 2 diagrams in section
