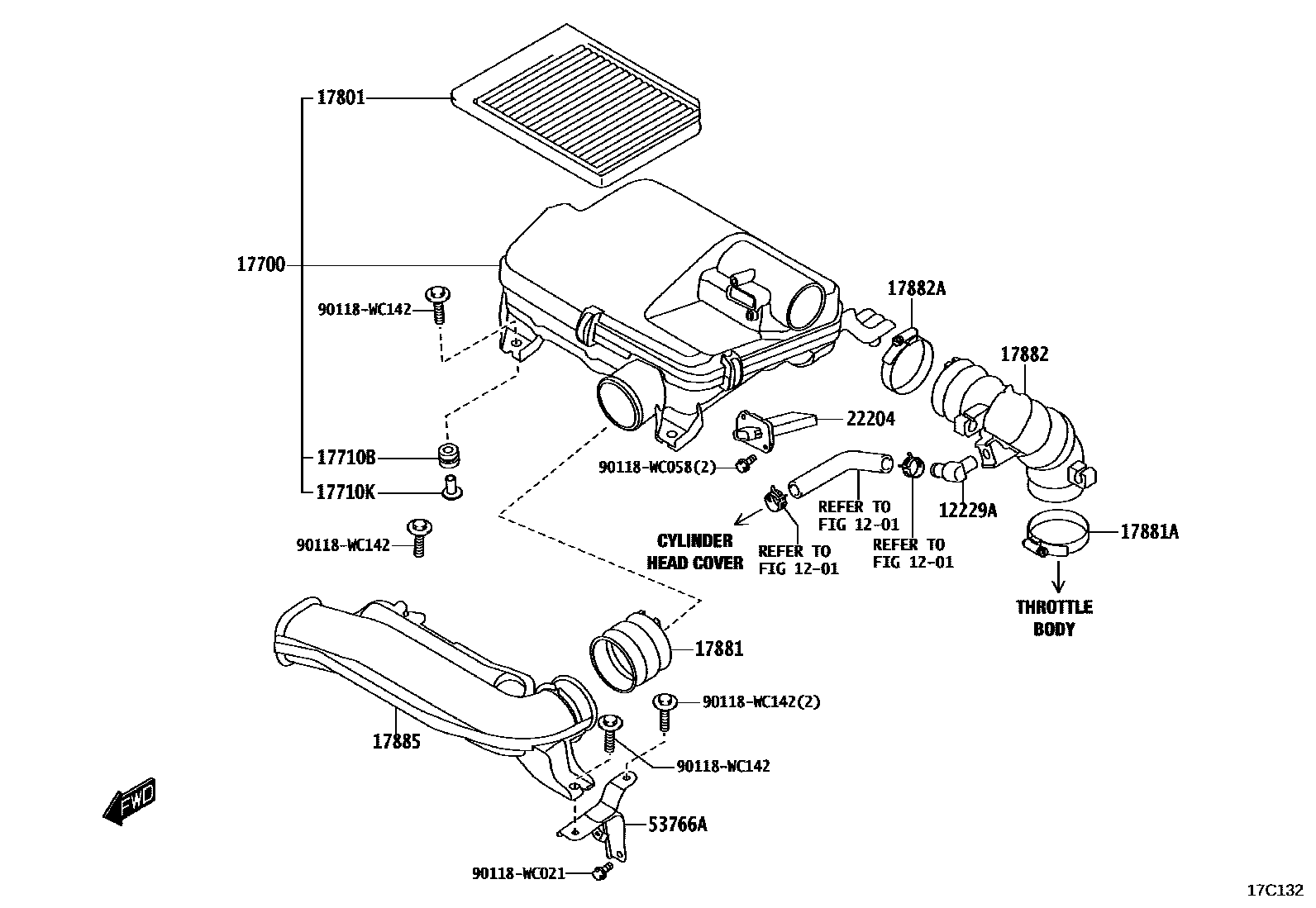

Toyota GLANZA — AIR CLEANER

0001 1 0002 1

1201

12229APIPE, VENTILATION

17700CLEANER ASSY, AIR

main17700-WC005

17710BGROMMET

17710KCOLLAR(FOR AIR CLEANER)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-WC004

17881HOSE, AIR CLEANER, NO.1

main52812-WC005

main90118-WCT57

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

17882HOSE, AIR CLEANER, NO.2

main17881-WC003

main90118-WCT58

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

17885PIPE, AIR CLEANER

main52811-WC006

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-WC002

53766ABRACKET, AIR CLEANER INLET PIPE

90118WC021

main90118-WC021

90118WC058

main90118-WC058

90118WC142

main90118-WC142

16 parts on this diagram · 2 diagrams in section
