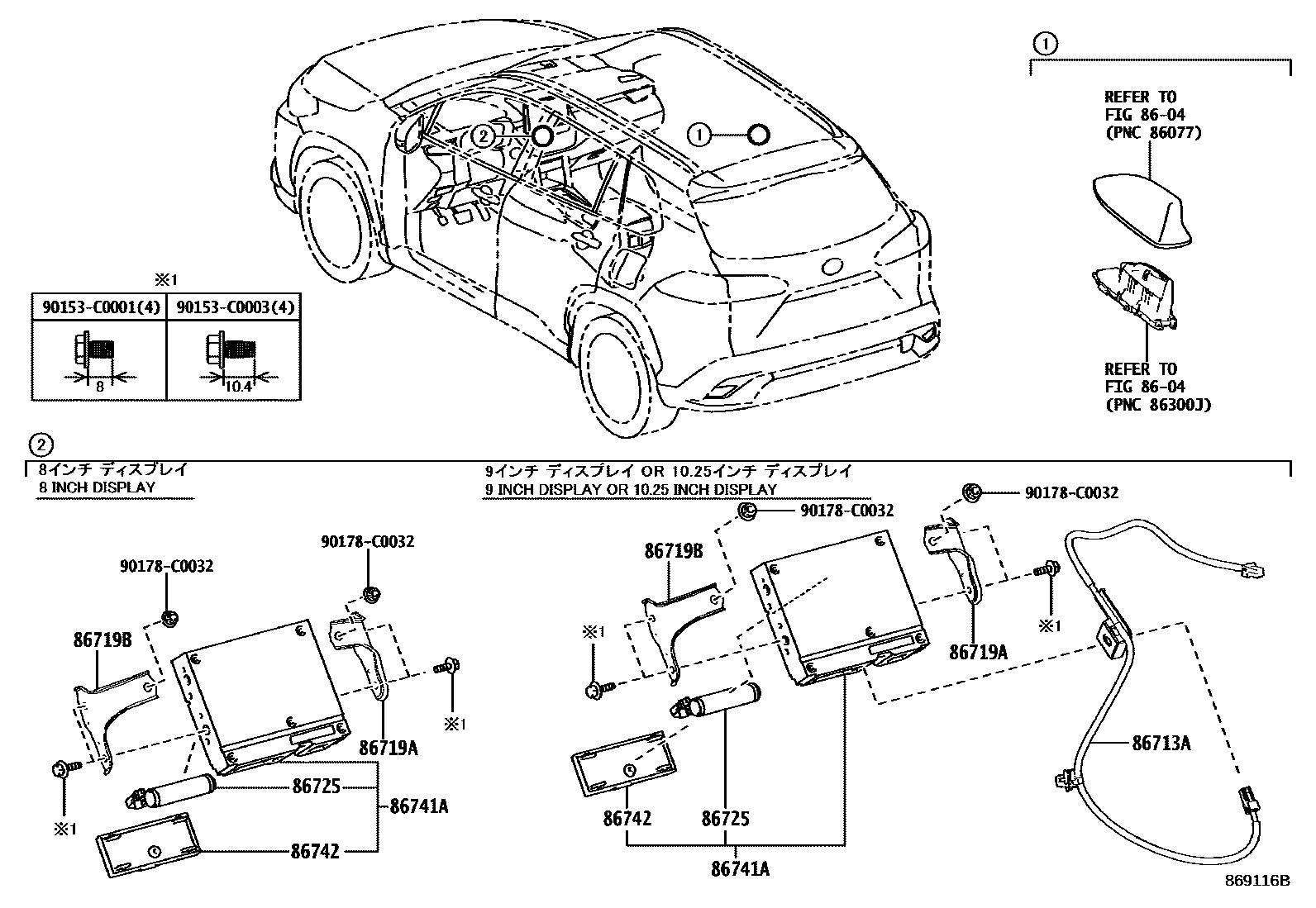

Toyota FRONT LANDER — TELEPHONE & MAYDAY

8604

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-0A020iMXGA10..A,E202201-202304

main86713-0A020iMXGA10,MXGH10202304

86719ABRACKET, TELEPHONE NO.1

main86719-02100iMXGA10202201-202304

main86719-02100iMXGA10,MXGH10202304

86719BBRACKET, TELEPHONE NO.2

main86719-02110iMXGA10202201-202304

main86719-02110iMXGA10,MXGH10202304

86725BATTERY, MOBILEPHONE

main86725-F4010iMXGA10202201-202304

main86725-F4010iMXGA10,MXGH10202304

86741ATRANSCEIVER, TELEMATICS

main86741-02230iMXGA10,MXGH10202304

main86741-0A010iMXGA10202201-202304

86742COVER, TRANSCEIVER

main86742-0A010iMXGA10202201-202304

main86742-0A010iMXGA10,MXGH10202304

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90178C0032

main90178-C0032

10 parts on this diagram · 1 diagram in section
