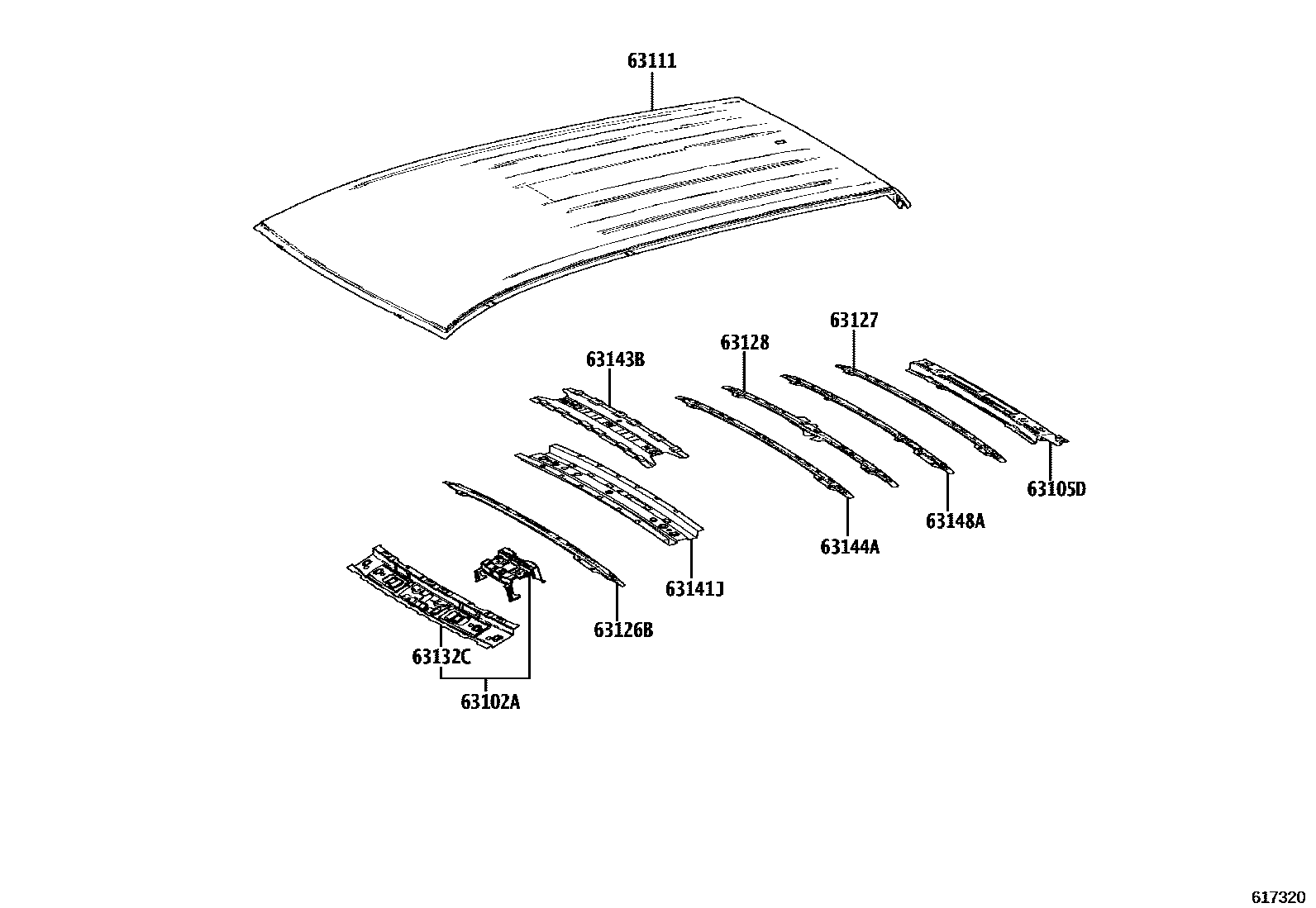

Toyota FRONT LANDER — ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL (NORMAL ROOF) 0002 1ROOF PANEL (MOON ROOF) 0003 1ROOF PANEL (PANORAMA ROOF) 0004 1MOON ROOF 0005 1PANORAMA ROOF 0006 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0A120iMXGA10..J202201-202304

main63102-0A130iMXGA10..A,E,G,N202201-202304

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0A040iMXGA10,MXGH10202201-202304

63111PANEL, ROOF

main63111-0A050iMXGA10..J202201-202304

main63111-0A060iMXGA10,MXGH10..A,G,N202201-202304

main63111-0A070iMXGA10,MXGH10..E202201-202304

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-0A030iMXGA10..J202201-202304

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-0A040iMXGA10..A,G,J,N202201-202304

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-0A040iMXGA10..A,G,J,N202201-202304

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-0A070iMXGA10,MXGH10202201-202304

63141JREINFORCEMENT, ROOF PANEL

main63141-0A070iMXGA10..J202201-202304

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0A040iMXGA10..J202201-202304

main63143-0A050iMXGA10..E202201-202304

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0A030iMXGA10..A,G,J,N202201-202304

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0A040iMXGA10..A,G,J,N202201-202304

11 parts on this diagram · 6 diagrams in section
