Toyota FRONT LANDER — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0A060iMXGA10202201-202304

main85130-0A060iMXGA10,MXGH10202304

85143RGROMMET, REAR WIPER MOTOR

main85143-0A060iMXGA10202201-202304

main85143-0A060iMXGA10,MXGH10202304

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMXGA10¥70202201-202304

TYPE A

main90179-06158iMXGA10,MXGH10¥70202304

TYPE A

main90182-C0004iMXGA10,MXGH10202304

TYPE B

main90182-C0004iMXGA10202201-202304

TYPE B

85214RRUBBER, REAR WIPER

main85214-0E240iMXGA10202201-202304

main85214-0E240iMXGA10,MXGH10202304

85241AARM, REAR WIPER

main85241-0E110iMXGA10202201-202304

main85241-0E110iMXGA10,MXGH10202304

85242BLADE, RR WIPER

main85242-0E130iMXGA10202201-202304

main85242-0E130iMXGA10,MXGH10202304

85292ACAP, REAR WIPER ARM HEAD

main85292-0E070iMXGA10202201-202304

main85292-0E070iMXGA10,MXGH10202304

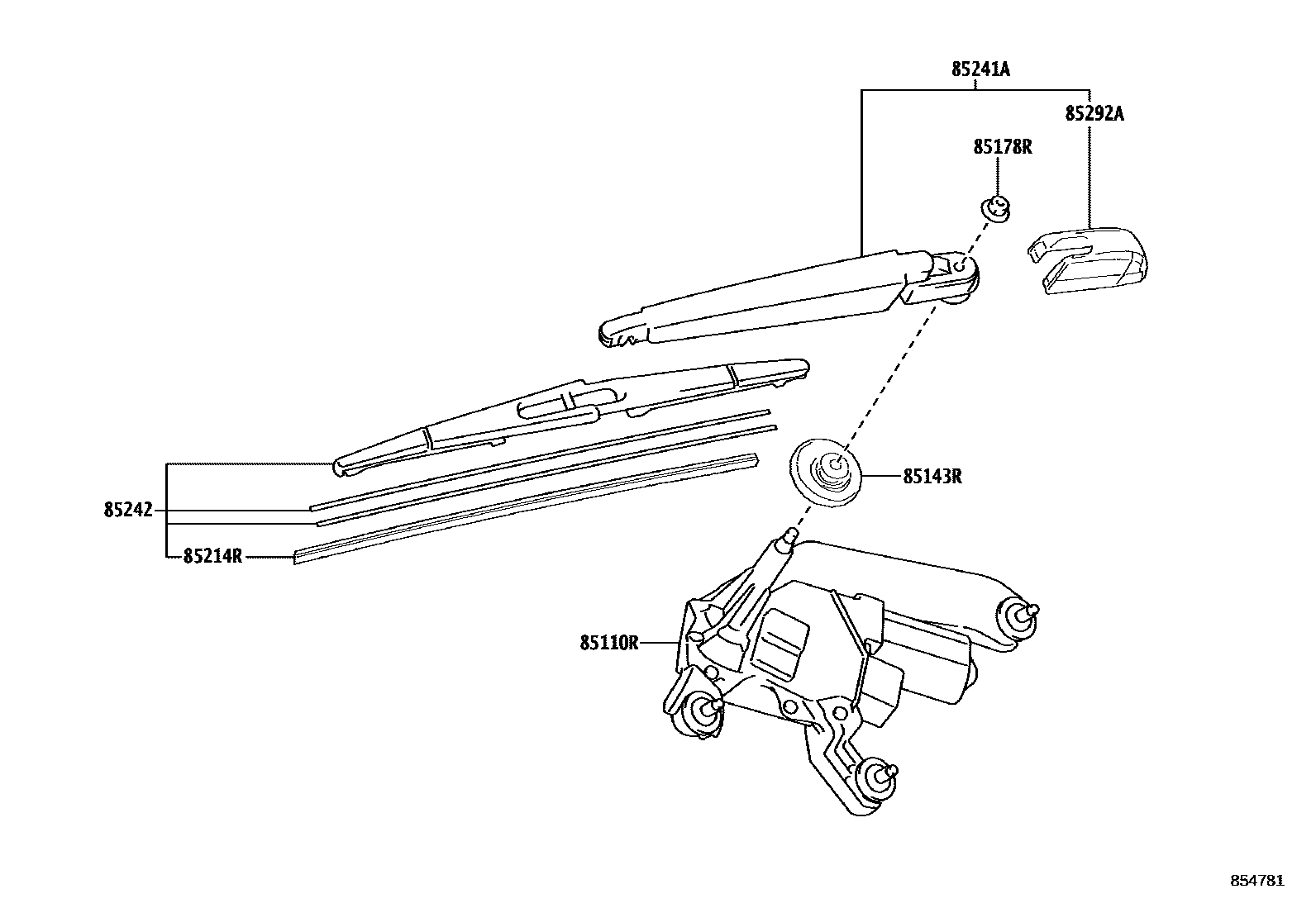

7 parts on this diagram · 1 diagram in section
