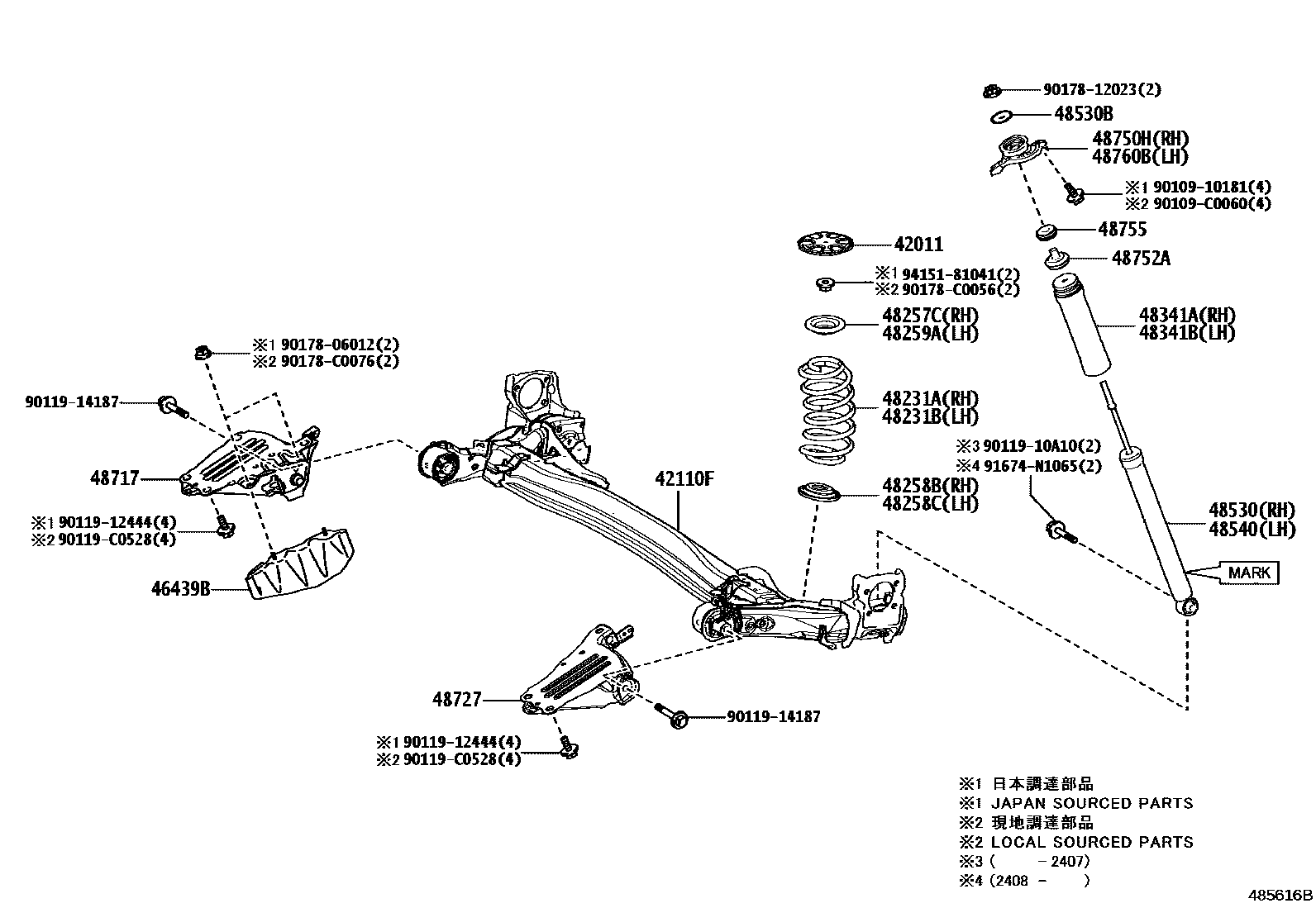

Toyota FRONT LANDER — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
46439BINSULATOR, PARKING BRAKE CABLE HEAT
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
48717BRACKET, REAR SUSPENSION ARM, RH
48727BRACKET, REAR SUSPENSION ARM, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
9010910181
90109C0060
main90109-C0060
9011910A10
9011912444
9011914187
90119C0528
main90119-C0528
9017806012
9017812023
90178C0056
main90178-C0056
90178C0076
main90178-C0076
91674N1065
main91674-N1065
9415181041
32 parts on this diagram · 1 diagram in section
