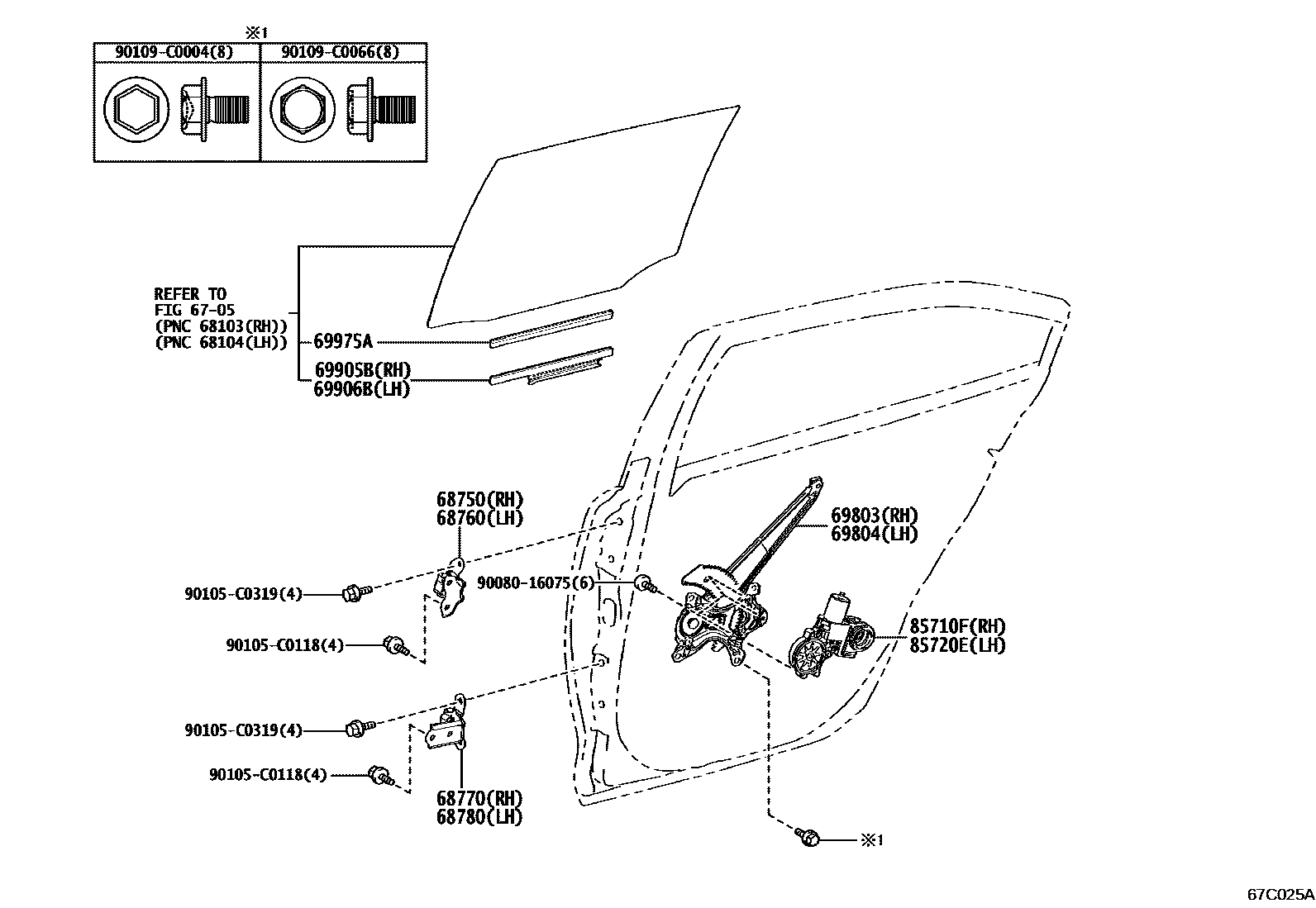

Toyota FRONT LANDER — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iMXGA10,MXGH10¥2,030202201-202304

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iMXGA10202201-202304

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iMXGA10202201-202304

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iMXGA10202201-202304

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0A040iMXGA10202201-202304

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0A040iMXGA10,MXGH10202201-202304

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-F4030iMXGA10,MXGH10202201-202304

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-F4030iMXGA10202201-202304

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-47020iMXGA10,MXGH10¥370202201-202304

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0A120iMXGA10,MXGH10202304

main85720-F4120iMXGA10202201-202304

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0A130iMXGA10,MXGH10202304

main85710-F4120iMXGA10202201-202304

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90109C0004

main90109-C0004

90109C0066

main90109-C0066

17 parts on this diagram · 1 diagram in section
