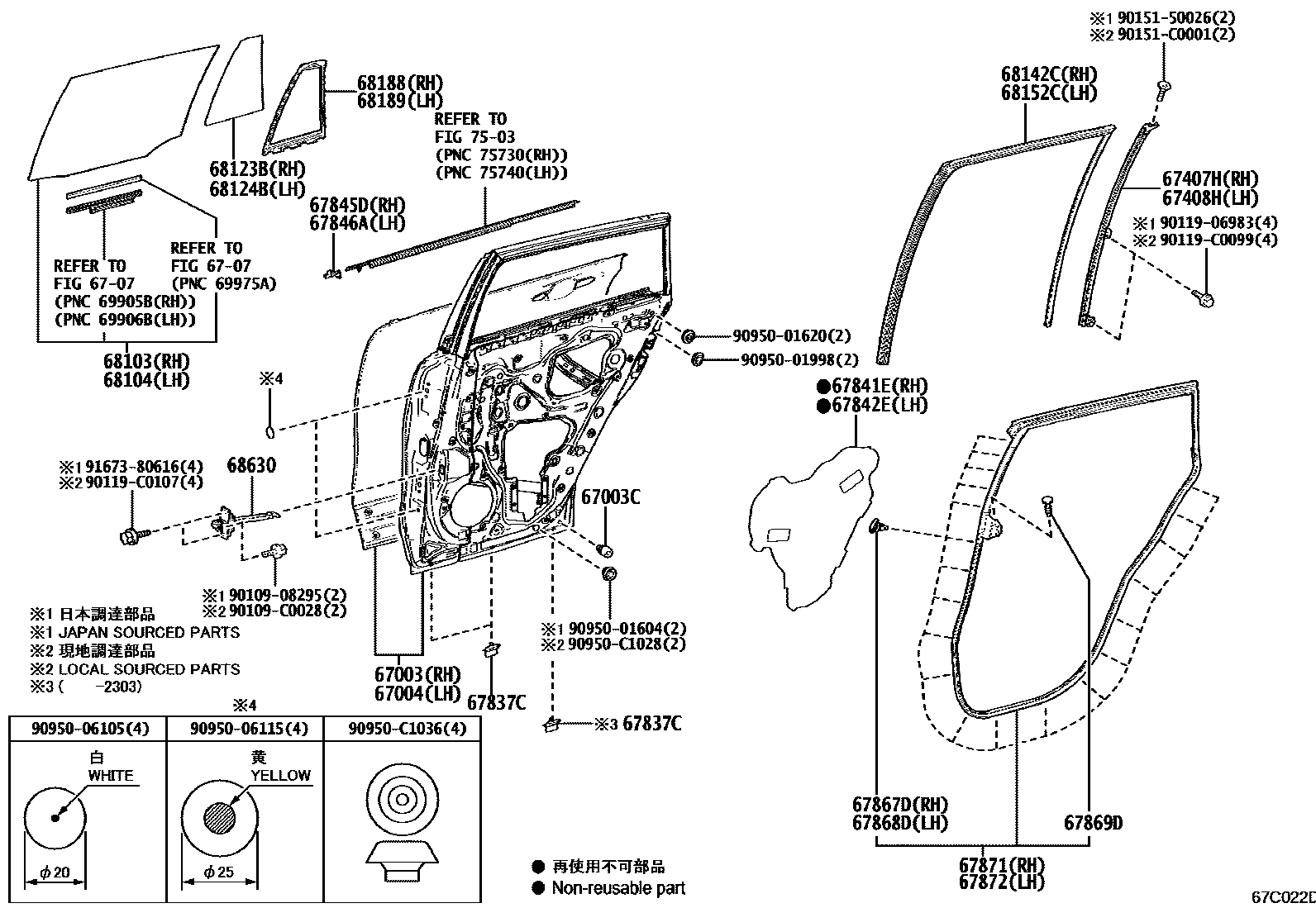

Toyota FRONT LANDER — REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
(J)
#,(J)
(L)
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
WHITE
PURPLE
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
WHITE
RED
67869DCLIP, DOOR WEATHERSTRIP
BLACK
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630CHECK ASSY, REAR DOOR
7503
9010908295
90109C0028
main90109-C0028
9011906983
90119C0099
main90119-C0099
90119C0107
main90119-C0107
9015150026
90151C0001
main90151-C0001
9095001604
9095001620
9095001998
9095006105
9095006115
90950C1028
main90950-C1028
90950C1036
main90950-C1036
9167380616
41 parts on this diagram · 2 diagrams in section
