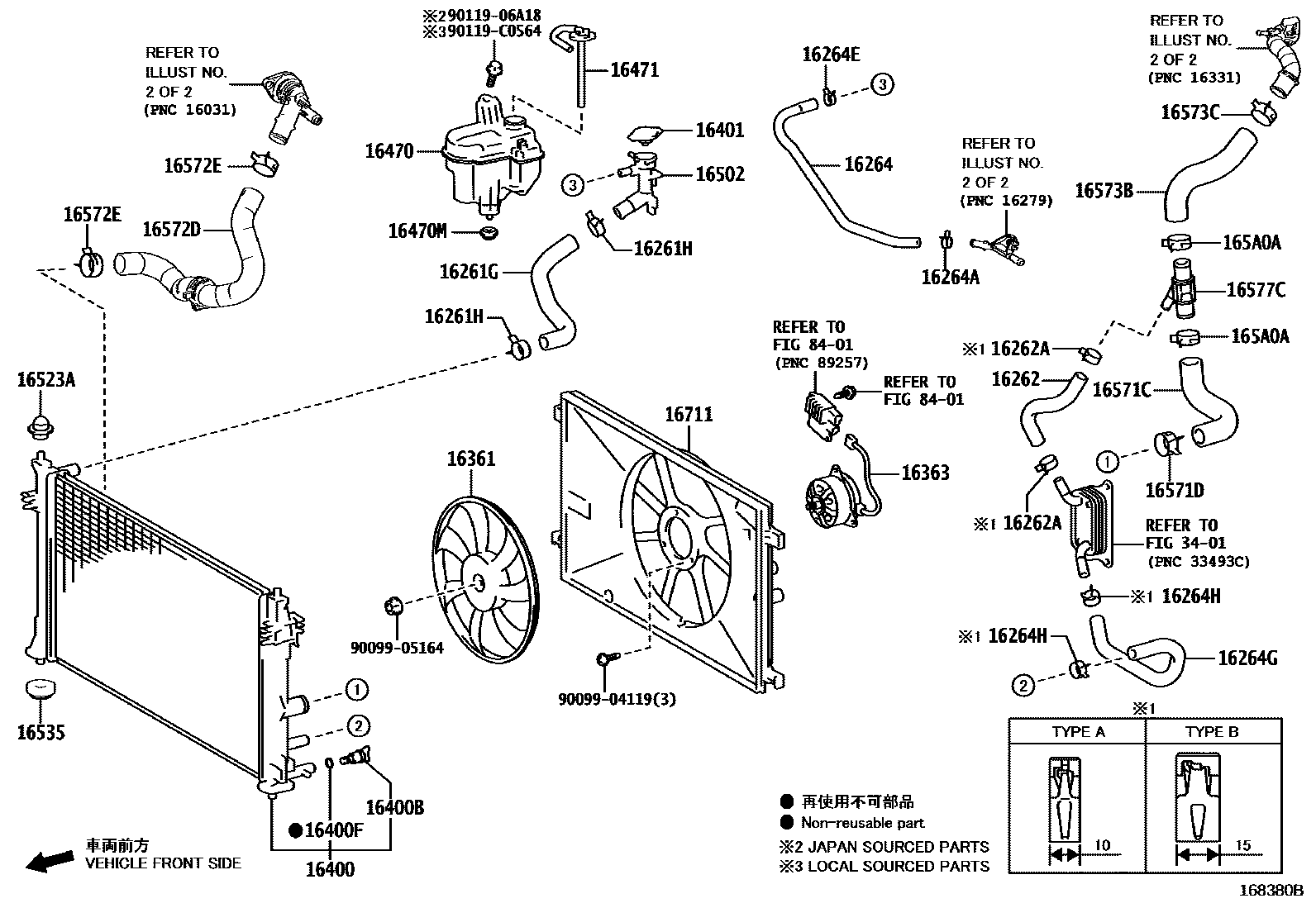

Toyota FRONT LANDER — RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16264GHOSE, WATER BY-PASS, NO.3
16264HCLIP(FOR WATER BY-PASS HOSE NO.3)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16361FAN
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
(J)
(L)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
(J)
(L)
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
(J)
(L)
16535SUPPORT, RADIATOR, LOWER
(J)
(L)
16571DCLIP, RADIATOR HOSE, NO.1
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
165A0ACLIP, HOSE
16711SHROUD, FAN
3401
8401
9009904119
main90099-04119
9009905164
9011906A18
90119C0564
main90119-C0564
36 parts on this diagram · 4 diagrams in section
