Toyota FRONT LANDER — PARTIAL ENGINE ASSEMBLY

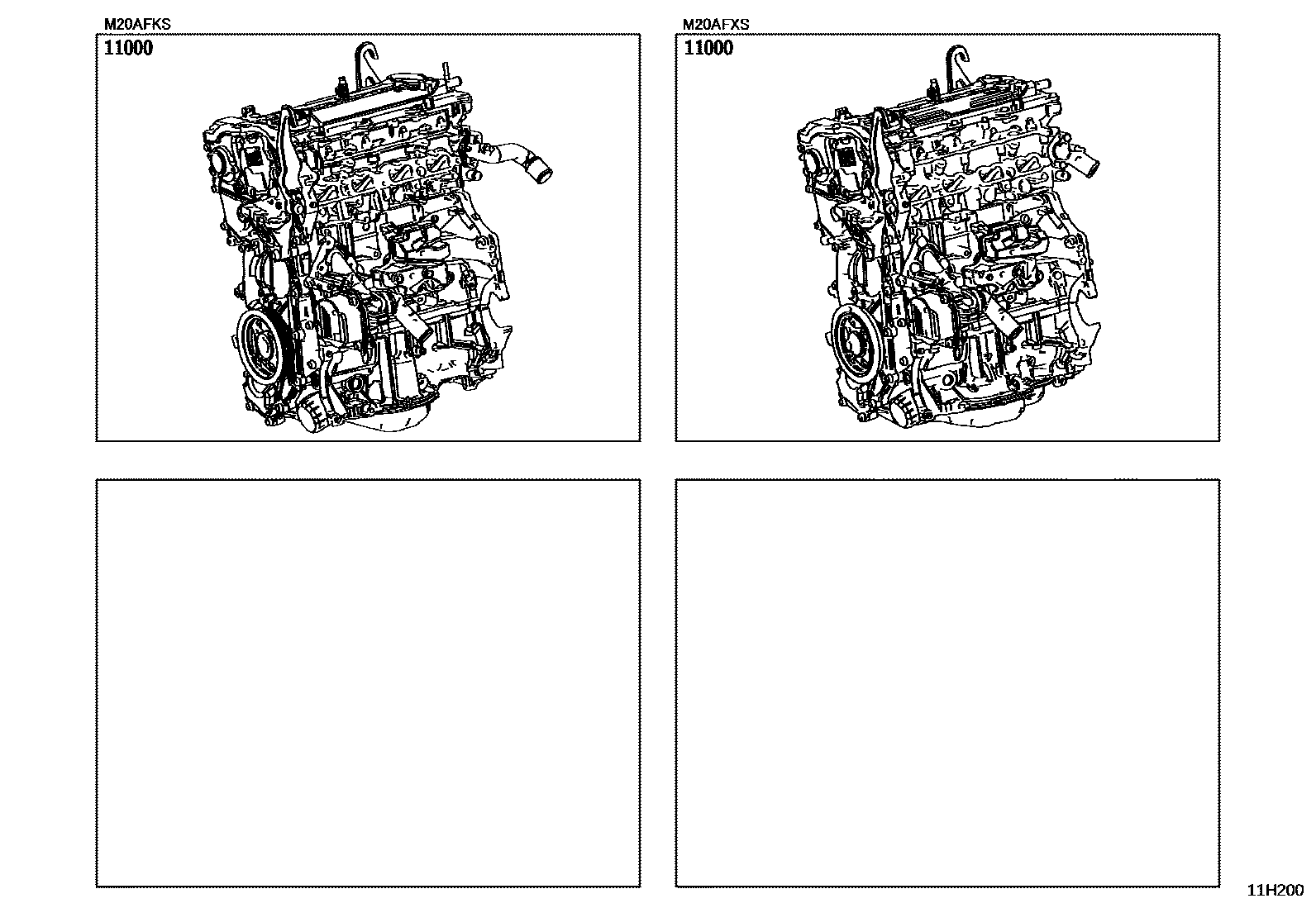

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-24400i202201-202304
*632
main19000-24420i202304-202409
*632
sub19000-2U020
main19000-2U020i202409
*632
main19000-F2180i202201-202304
*668,*669
main19000-F2290i202304
*668,*669
main19000-F2300i202307
*668,*669

1 parts on this diagram · 1 diagram in section
