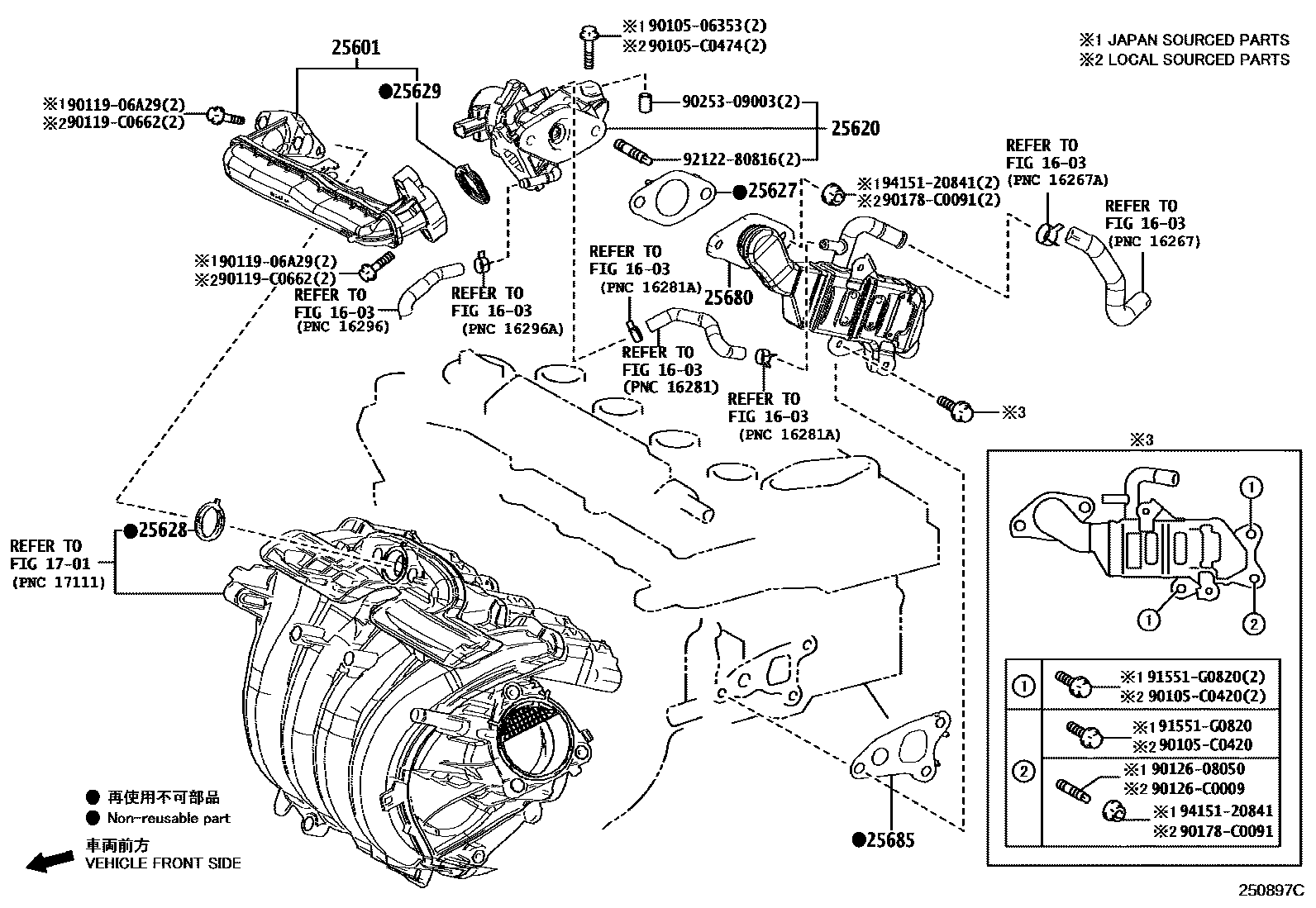

Toyota FRONT LANDER — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20..MXGA10¥3,140202201-202304

*132

main25601-F2030iM20..MXGA10,MXGH10202201-202501

*668,*669

main25601-F2070iM20..MXGA10,MXGH10202501

*668,*669

25620VALVE ASSY, EGR

main25620-24060iM20..MXGA10¥18,400202201-202304

*132

main25620-F2060iM20..MXGA10,MXGH10202201-202304

*668,*669

25627GASKET, EGR VALVE

main25627-24010iM20..MXGA10¥270202201-202304

*132

main25627-F2020iM20..MXGA10,MXGH10202201-202304

*668,*669

25628GASKET, EGR INLET

main25628-25010iM20..MXGA10¥340202201-202304

*132,*668,*669

main25628-25010iM20..MXGH10¥340202307

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20..MXGA10¥340202304

*668,*669

main25629-25010iM20..MXGA10¥340202201-202304

*132,*668,*669

main25629-25010iM20..MXGA10¥340202304

*132

25680COOLER ASSY, EGR

main25680-24020iM20..MXGA10202201-202304

*132

main25680-24040iM20..MXGH10¥16,700202307

(J)

main25680-F2020iM20..MXGA10202201-202304

*668,*669

main25680-F2050iM20..MXGH10202307

(L)

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20..MXGA10¥270202201-202304

*132

main25685-F2010iM20..MXGA10202201-202304

*668,*669

main25685-F2010iM20..MXGH10202307

9010506353

main90105-06353¥60

90105C0420

main90105-C0420

90105C0474

main90105-C0474

9011906A29

main90119-06A29¥60

90119C0662

main90119-C0662

9012608050

main90126-08050¥80

90126C0009

main90126-C0009

90178C0091

main90178-C0091

9025309003

main90253-09003¥50

91551G0820

main91551-G0820¥80

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

21 parts on this diagram · 1 diagram in section
