Toyota FRONT LANDER — CYLINDER HEAD

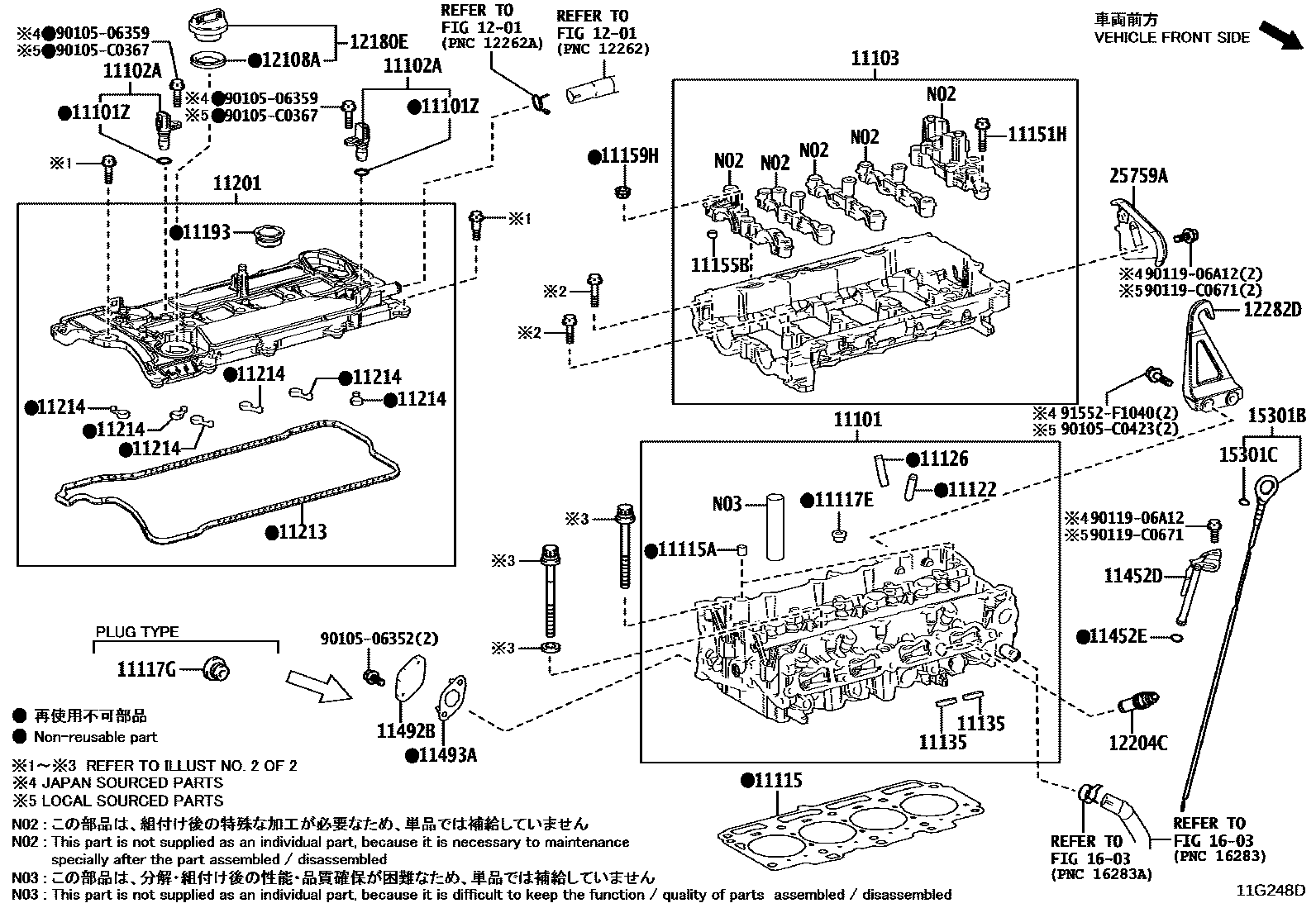

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-29635i¥96,900202201-202211
*132
sub11101-29636¥97,000
main11101-29636i¥97,000202212-202304
*132
main11101-29636i¥97,000202304-202410
*132
main11101-29637i¥88,100202410
*132
main11101-F9060i202201-202212
*668,*669
sub11101-F9061
main11101-F9061i202304-202412
*668,*669
sub11101-F9062
main11101-F9061i202212-202304
*668,*669
sub11101-F9062
main11101-F9062i202412
*668,*669
main11101-F9121i202307-202412
sub11101-F9122
main11101-F9122i202412
11101ZO RING, CAM POSITION SENSOR
main90301-11038i¥0202307
main90301-11038i¥0202201-202304
*132,*668,*669
main90301-11038i¥0202304
*632,*668,*669
11102ASENSOR, CAMSHAFT POSITION
main90919-05096i¥4,130202408
(J)
main90919-05096i¥4,130202201-202304
*132,*668,*669
main90919-05096i¥4,130202304-202408
*668,*669
main90919-05096i¥4,130202307-202408
main90919-05096i¥4,130202304
*632
main90919-05096i¥4,130202408
(J),*668,*669
main90919-C5007i202408
(L),*668,*669
main90919-C5007i202408
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
main11103-24011i¥23,900202201-202304
*132
main11103-24011i¥23,900202304
*132
main11103-24022i¥23,700202307
(J)
main11103-F2051i202304
*668,*669
main11103-F2051i202201-202304
*668,*669
main11103-F2110i202307
(L)
11115GASKET, CYLINDER HEAD
main11115-24040i¥4,380202201-202304
*132
main11115-24040i¥4,380202304
*132
main11115-F2020i202201-202304
*668,*669
main11115-F2020i202304
*668,*669
11115APIN, RING
main90253-12002i¥50202304
*132
main90253-12002i¥50202201-202304
*132
main90253-C0002i202304
*668,*669
main90253-C0002i202201-202304
*668,*669
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-14015i¥120202304
*132
main90341-14015i¥120202201-202304
*132
main90341-C0012i202201-202304
*668,*669
main90341-C0012i202304
*668,*669
main90341-C0012i202307
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
main90341-20012i¥200202301-202304
*132,*668,*669
main90341-20012i¥200202304
*132
11122BUSH, INTAKE VALVE GUIDE
main11122-31090i¥550202201-202304
STD,*132,*668,*669
main11122-31090i¥550202304-202310
STD,*668,*669
main11122-31090i¥550202307-202310
STD
main11122-31090i¥550202304
STD,*132
main11122-31090i¥550202311
STD,*668,*669
main11122-31090i¥550202311
STD
main11123-31090i¥550202304
O/S 0.05,*132
main11123-31090i¥550202311
O/S 0.05
main11123-31090i¥550202311
O/S 0.05,*668,*669
main11123-31090i¥550202201-202304
O/S 0.05,*132,*668,*669
main11123-31090i¥550202304-202310
O/S 0.05,*668,*669
main11123-31090i¥550202307-202310
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-31041i¥610202201-202304
STD,*132
sub11122-47010¥550
main11122-31041i¥610202304
STD,*132
sub11122-47010¥550
main11122-47010i¥550202304
STD,*668,*669
main11122-47010i¥550202307
STD
main11122-47010i¥550202201-202304
STD,*668,*669
main11123-31041i¥620202201-202304
O/S 0.05,*132
sub11123-47010¥550
main11123-31041i¥620202304-202401
O/S 0.05,*132
sub11123-47010¥550
main11123-47010i¥550202201-202304
O/S 0.05,*668,*669
main11123-47010i¥550202304
O/S 0.05,*668,*669
main11123-47010i¥550202401
O/S 0.05,*132
main11123-47010i¥550202307
O/S 0.05
11135SEAT, EXHAUST VALVE
main11135-24020i¥490202304
STD,*132
main11135-24020i¥490202201-202304
STD,*132
main11135-F2030i202304
STD,*668,*669
main11135-F2030i202201-202304
STD,*668,*669
main11135-F2030i202307
STD
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
main90119-07009i¥90202201-202304
*132
main90119-07009i¥90202304
*132
main90119-07009i¥90202307
(J)
main90119-C0469i202201-202304
*668,*669
main90119-C0469i202304
*668,*669
main90119-C0469i202307
(L)
11155BPIN, RING
main90253-13005i¥50202205-202304
(J),*668,*669
main90253-13005i¥50202201-202205
*668,*669
main90253-13005i¥50202201-202304
*132
main90253-13005i¥50202304
(J),*668,*669,*132
main90253-13005i¥50202307
(J)
main90253-C0004i202307
(L)
main90253-C0004i202304
(L),*668,*669
main90253-C0004i202205-202304
(L),*668,*669
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
main11159-31040i¥340202304
*132
main11159-31040i¥340202201-202304
*132
main11159-F2010i202307
main11159-F2010i202201-202304
*668,*669
main11159-F2010i202304
*668,*669
11193GASKET, SPARK PLUG TUBE
main11193-37030i¥230202201-202304
*132
main11193-37030i¥230202304
*132
main11193-37030i¥230202307
(J)
main11193-F2020i202201-202304
*668,*669
main11193-F2020i202304
*668,*669
main11193-F2020i202307
(L)
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-24032i¥12,600202201-202304
*132
main11201-24032i¥12,600202304
*132
main11201-24040i¥12,600202307
(J)
main11201-F2041i202304
*668,*669
main11201-F2041i202201-202304
*668,*669
main11201-F2080i202307
(L)
11213GASKET, CYLINDER HEAD COVER
main11213-24020i¥700202304
*132
main11213-24020i¥700202307
(J)
main11213-24020i¥700202201-202304
*132
main11213-F2020i202304
*668,*669
main11213-F2020i202201-202304
*668,*669
main11213-F2020i202307
(L)
11214GASKET, CYLINDER HEAD COVER, NO.2
main11213-31080i¥370202201-202304
*132,*668,*669
main11213-31080i¥370202304
*132,*668,*669
main11213-31080i¥370202307
11452DGUIDE, OIL LEVEL GAGE
main11452-24020i¥700202201-202304
*132
main11452-24020i¥700202304
*132
main11452-F2040i202201-202304
*668,*669
main11452-F2040i202304
*668,*669
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
main90301-C0037i202208-202304
(L),*668,*669
main90301-C0037i202304
(L),*668,*669
main96741-19010i¥250202304
*132
main96741-19010i¥250202304
(J),*668,*669
main96741-19010i¥250202201-202208
*668,*669
main96741-19010i¥250202201-202304
*132
main96741-19010i¥250202208-202304
(J),*668,*669
11492BPLATE, WATER SEAL
main11492-24010i¥500202201-202207
*668,*669
main11492-24010i¥500202201-202301
*132
main11492-24010i¥500202207-202301
(J),*668,*669
main11492-F2040i202207-202301
(L),*668,*669
11493AGASKET, WATER SEAL PLATE
main16258-24010i¥270202201-202301
*132
main16258-F2030i202201-202301
*668,*669
1201
12108AGASKET(FOR OIL FILLER CAP)
main90430-35001i¥120202304
*132
main90430-35001i¥120202201-202304
*132,*668,*669
main90430-35001i¥120202304
*668,*669
12180ECAP ASSY, OIL FILLER
main12180-0V010i202304
*668,*669
main12180-0V010i202201-202304
*668,*669
main12180-38010i¥640202201-202304
*132
main12180-38010i¥640202304
*132
12204CVALVE SUB-ASSY, VENTILATION
main12204-25010i¥800202304
*132
main12204-25010i¥800202201-202304
*132
main12204-F2010i202304
*668,*669
main12204-F2010i202201-202304
*668,*669
12282DHANGER, ENGINE, NO.2
main12282-25010i¥4,190202201-202304
*132
main12282-25010i¥4,190202304
*132
main12282-F2010i202201-202304
*668,*669
main12282-F2010i202304
*668,*669
15301BGAGE SUB-ASSY, OIL LEVEL
main15301-24020i¥750202201-202304
*132
main15301-24020i¥750202304
*132
main15301-F2090i202304
*668,*669
main15301-F2090i202201-202304
*668,*669
15301CRING, O(FOR OIL LEVEL GAGE)
main90301-C0083i202201-202304
(L),*668,*669
main90301-C0083i202304
(L),*668,*669
main96741-19005i¥140202304
*132
main96741-19005i¥140202304
(J),*668,*669
main96741-19005i¥140202201-202304
*132,(J),*668,*669
1603
25759ABRACKET, VACUUM SURGE TANK
main25759-24010i¥450202201-202304
*132
main25759-24010i¥450202304
*632
main25759-F2010i202201-202304
*668,*669
main25759-F2010i202304
*668,*669
9010506352
main90105-06352¥60
9010506359
main90105-06359¥60
90105C0367
main90105-C0367
90105C0423
main90105-C0423
9011906A12
main90119-06A12¥60
90119C0671
main90119-C0671
91552F1040
main91552-F1040¥120

38 parts on this diagram · 3 diagrams in section
