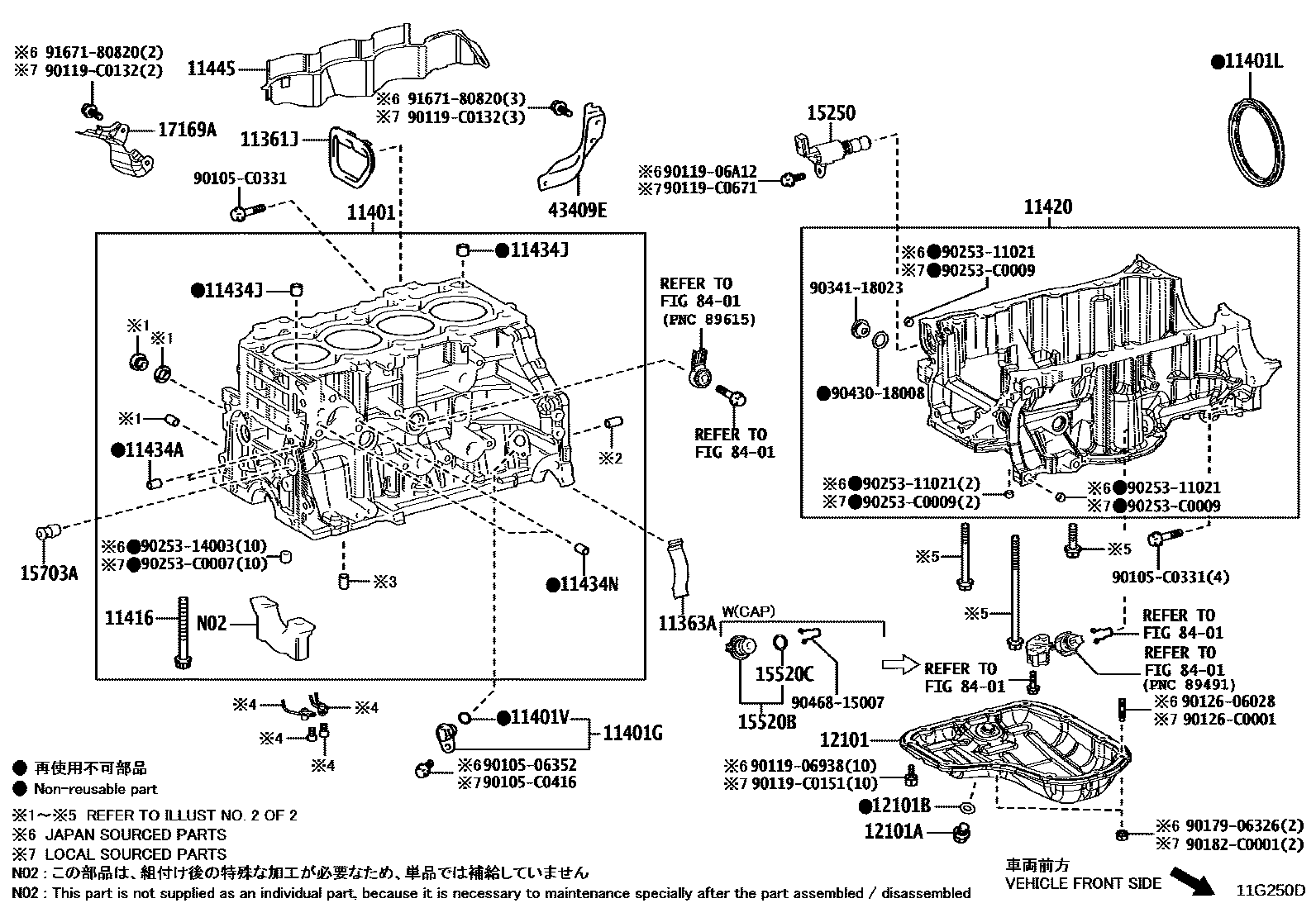

Toyota FRONT LANDER — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(J)
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(J)
(L)
11401BLOCK SUB-ASSY, CYLINDER
*132
*668,*669
11401GSENSOR, CRANK POSITION
*632
*132,*668,*669
*668,*669
(J),*668,*669
(J)
(L),*668,*669
(L)
11401LSEAL, ENGINE REAR OIL
*132
*668,*669
11401VO-RING, CRANK POSITION SENSOR
*132,*668,*669
*668,*669,*632
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*668,*669
*132,*668,*669
*132
11420CRANKCASE ASSY, STIFFENING
*132
*132,(J),*668,*669
(J),*668,*669
(L),*668,*669
(L),*668,*669
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6,*668,*669
L=14,OD=6,*132,*668,*669
L=14,OD=6,*132
11434JPIN, RING (FOR CYLINDER HEAD SET)
*132
*668,*669
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*132
*668,*669
*132,*668,*669
11445SPACER, CYLINDER BLOCK WATER JACKET
*132
*632
*668,*669
12101PAN SUB-ASSY, OIL
*632
*132
*668,*669
12101APLUG(FOR OIL PAN DRAIN)
*632
*132
*668,*669
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*132
*632
*668,*669
15250VALVE ASSY, OIL PRESSURE CONTROL
(J),*668,*669
(J),*668,*669,*132
*132
(L),*668,*669
15520BCAP ASSY, CRANKCASE
*668,*669
*132
15520CRING, O (FOR CRANKCASE CAP)
*668,*669
*132
15703AVALVE SUB-ASSY, OIL NOZZLE
(J),*668,*669
*668,*669
*132
*632
(L),*668,*669
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
*132
(J),*668,*669,*132
(J),*668,*669
(L),*668,*669
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
8401
9010506352
90105C0331
main90105-C0331
90105C0416
main90105-C0416
9011906938
9011906A12
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
9012606028
90126C0001
main90126-C0001
9017906326
90182C0001
main90182-C0001
9025311021
9025314003
90253C0007
main90253-C0007
90253C0009
main90253-C0009
9034118023
9043018008
9046815007
9167180820
42 parts on this diagram · 3 diagrams in section
