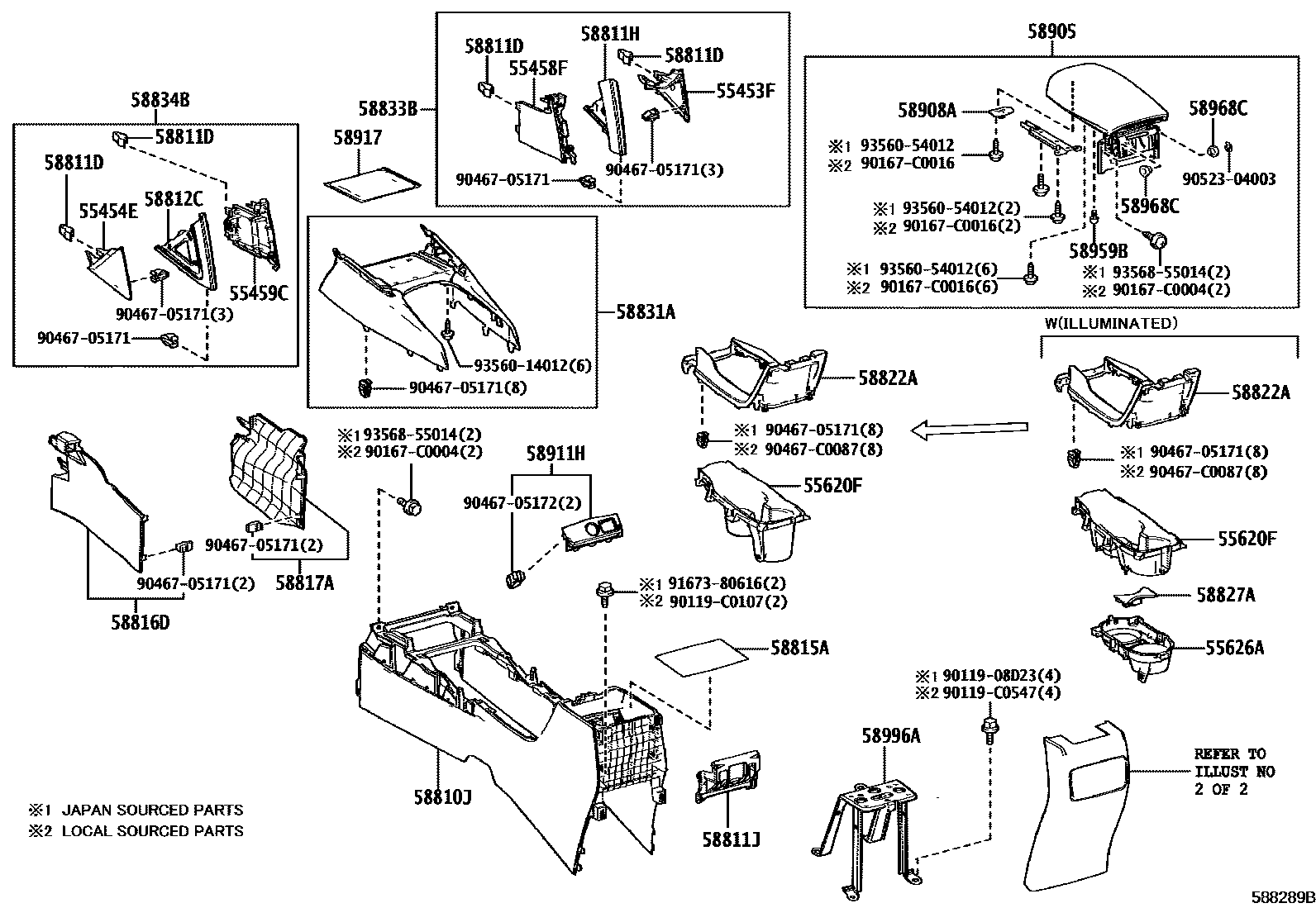

Toyota FRONT LANDER — CONSOLE BOX & BRACKET

0001 1 0002 1

55453FPAD, INSTRUMENT, LOWER RH

main55453-0A060iMXGA10202201-202304

main55453-0A060iMXGA10,MXGH10202304

55454EPAD, INSTRUMENT, LOWER LH

main55454-0A140iMXGA10202201-202304

main55454-0A140iMXGA10,MXGH10202304

55458FCOVER, INSTRUMENT, LOWER RH

main55458-0A060iMXGA10202201-202304

main55458-0A060iMXGA10,MXGH10202304

55459CCOVER, INSTRUMENT, LOWER LH

main55459-0A060iMXGA10,MXGH10202304

main55459-0A060iMXGA10202201-202304

55620FHOLDER ASSY, CONSOLE BOX CUP

main55620-0A160iMXGA10..J,N202201-202304

main55620-0A160iMXGA10,MXGH10..J,N202304

main55620-0A170iMXGA10,MXGH10..A,E,G202304

main55620-0A170iMXGA10..A,E,G202201-202304

55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL

main55626-0A060iMXGA10,MXGH10..A,E,G202304

main55626-0A060iMXGA10..A,E,G202201-202304

58810JBOX ASSY, CONSOLE

main58810-0A130-C0iMXGA10,MXGH10..G202304

BLACK,TRIM4#

main58810-0A130-C0iMXGA10,MXGH10..G202304

BLACK,TRIM1#,2#

main58810-0A130-C0iMXGA10,MXGH10..E,J,N202304

BLACK,TRIM1#,2#,4#

main58810-0A130-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

58811DCLIP(FOR CONSOLE BOX)

main90467-13082-A0iMXGA10202201-202304

MELLOW WHITE

sub90467-13082¥80

main90467-13082-A0iMXGA10,MXGH10202304

MELLOW WHITE

sub90467-13082¥80

58811HBOX, CONSOLE, RH

main58811-0A060-B0iMXGA10202201-202304

SILVER,TRIM1#,2#

main58811-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM4#

main58811-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM1#,2#,4#

main58811-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM1#,2#

58811JPLATE, CONSOLE

main58811-0A090iMXGA10202201-202304

main58811-0A090iMXGA10,MXGH10202304

58812CBOX, CONSOLE, LH

main58812-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM1#,2#,4#

main58812-0A060-B0iMXGA10202201-202304

SILVER,TRIM1#,2#

main58812-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM4#

main58812-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM1#,2#

58815ACARPET, CONSOLE BOX

main58815-02480iMXGA10202201-202304

main58815-02480iMXGA10,MXGH10202304

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM4#

main58816-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM1#,2#,4#

main58816-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM1#,2#

main58816-0A070-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM1#,2#

main58817-0A070-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

main58817-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM4#

main58817-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM1#,2#,4#

58822APANEL, CONSOLE, UPPER REAR

main58822-0A100iMXGA10..A,E,G202201-202304

main58822-0A100iMXGA10,MXGH10..A,E,G202304

main58822-0A140iMXGA10..J,N202201-202304

main58822-0A140iMXGA10,MXGH10..J,N202304

58827AGARNISH, CONSOLE BOX POCKET

main58827-02250iMXGA10..A,E,G202207-202304

(L)

main58827-02250iMXGA10,MXGH10..A,E,G202304

(L)

main58827-12020iMXGA10..A,E,G¥1,310202207-202304

(J)

main58827-12020iMXGA10,MXGH10..A,E,G¥1,310202304

(J)

main58827-12020iMXGA10..A,E,G¥1,310202201-202207

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-0A070-B0iMXGA10,MXGH10..E,G,J,N202304

LT.GRAY,TRIM1#

main58831-0A070-B0iMXGA10202201-202304

LT.GRAY,TRIM1#

main58831-0A070-C0iMXGA10,MXGH10..G202304

BLACK,TRIM2#

main58831-0A070-C0iMXGA10202201-202304

BLACK,TRIM2#

main58831-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM4#

main58831-0A070-C0iMXGA10,MXGH10..A202304

BLACK,TRIM2#,4#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0A060-B0iMXGA10202201-202304

SILVER,TRIM1#,2#

main58833-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM1#,2#,4#

main58833-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM1#,2#

main58833-0A060-B0iMXGA10,MXGH10..G202304

SILVER,TRIM4#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0A060-B0iMXGA10,MXGH10..E,J,N202304

SILVER,TRIM1#,2#,4#

main58834-0A060-B0iMXGA10202201-202304

SILVER,TRIM1#,2#

main58834-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM4#

main58834-0A060-B0iMXGA10,MXGH10..A202304

SILVER,TRIM1#,2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0A110-C0iMXGA10..J,N202201-202304

BLACK,TRIM1#,2#

main58905-0A110-C0iMXGA10,MXGH10..J,N202304

BLACK,TRIM1#,2#

main58905-0A120-C0iMXGA10..A,E,G202201-202304

BLACK,TRIM1#,2#

main58905-0A120-C0iMXGA10,MXGH10..E,G202304

BLACK,TRIM1#,2#

main58905-0A120-E0iMXGA10,MXGH10..A202304

SAND BROWN,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-02170iMXGA10,MXGH10202304

main58908-02170iMXGA10202201-202304

58911HBOX, CONSOLE, REAR

main58911-02650-C0iMXGA10,MXGH10..E,J,N202304

BLACK,TRIM1#,2#

main58911-02650-C0iMXGA10,MXGH10..A202304

BLACK,TRIM4#

main58911-02650-C0iMXGA10,MXGH10..A202304

BLACK,TRIM1#,2#,4#

main58911-02650-C0iMXGA10..A,E,G202201-202304

BLACK,TRIM1#,2#

main58911-0A030-C0iMXGA10..J,N202201-202304

BLACK,TRIM1#,2#

58917MAT, BOX BOTTOM, NO.2

main58917-0A070iMXGA10202201-202304

main58917-0A070iMXGA10,MXGH10202304

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iMXGA10¥100202201-202304

main58959-60060iMXGA10,MXGH10¥100202304

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-33010iMXGA10202201-202304

main58968-33010iMXGA10,MXGH10202304

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0A070iMXGA10202201-202304

main58996-0A070iMXGA10,MXGH10202304

9011908D23

main90119-08D23¥60

90119C0107

main90119-C0107

90119C0547

main90119-C0547

90167C0004

main90167-C0004

90167C0016

main90167-C0016

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

90467C0087

main90467-C0087

9052304003

main90523-04003¥90

9167380616

main91673-80616¥60

9356014012

main93560-14012¥70

9356054012

main93560-54012¥60

9356855014

main93568-55014¥70

39 parts on this diagram · 2 diagrams in section
