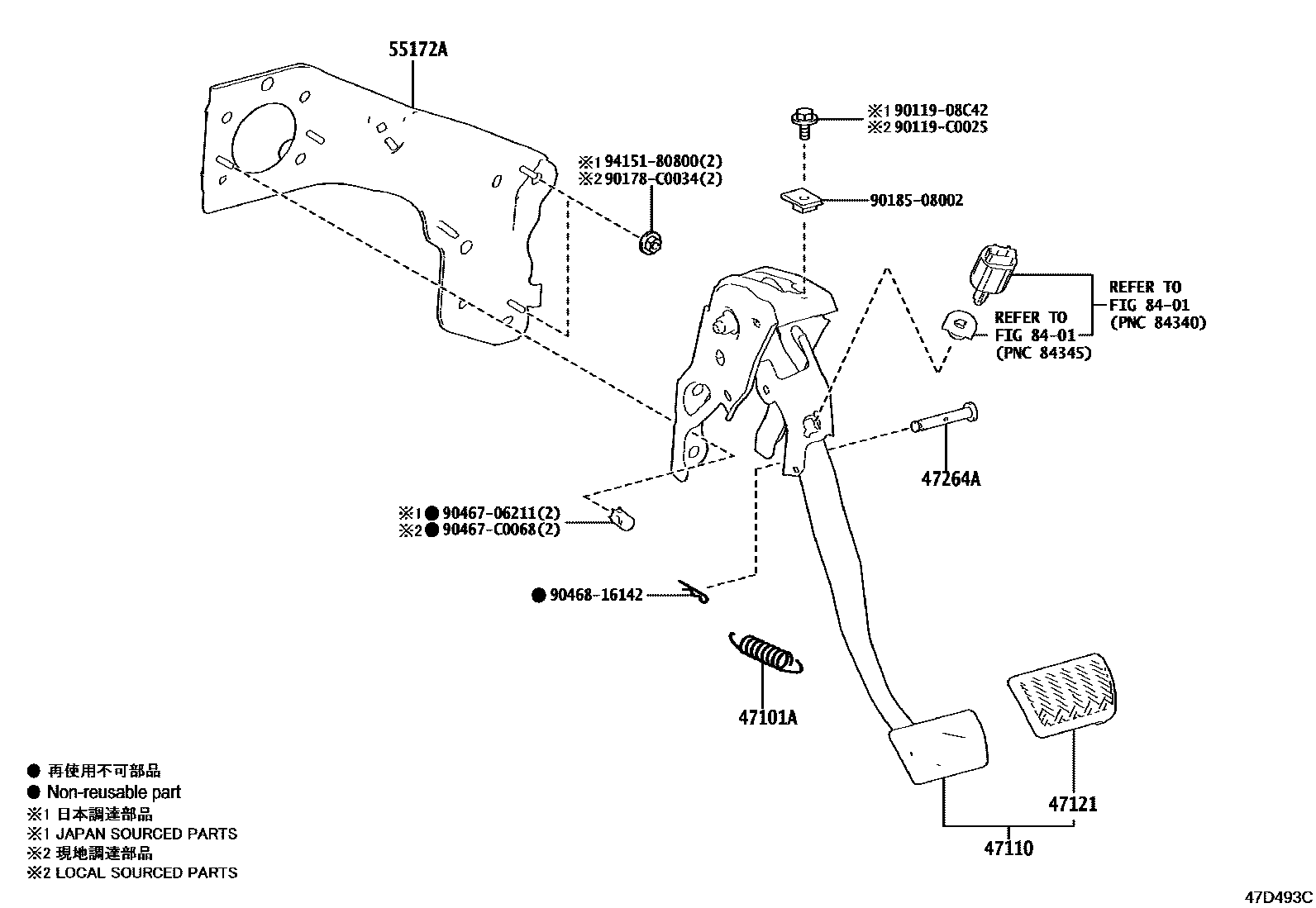

Toyota FRONT LANDER — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMXGA10¥180202405

(J)

main90507-15010iMXGA10¥180202201-202304

main90507-15010iMXGA10¥180202304-202405

main90507-16030iMXGH10¥180202405

(J)

main90507-16030iMXGH10¥180202307-202405

main90507-C0007iMXGA10202405

(L)

main90507-C0009iMXGH10202405

(L)

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0A140iMXGA10202304

main47110-0A140iMXGA10202201-202304

main47110-0A190iMXGH10202307

47121PAD, BRAKE PEDAL

main47121-02130iMXGH10202307

main47121-02180iMXGA10202201-202304

main47121-02180iMXGA10202304

47264APIN(FOR PUSH ROD)

main90249-08221iMXGA10¥220202201-202304

main90249-08221iMXGA10,MXGH10¥220202304

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4040iMXGA10202201-202304

main55172-F4040iMXGA10,MXGH10202304

8401

9011908C42

main90119-08C42¥80

90119C0025

main90119-C0025

90178C0034

main90178-C0034

9018508002

main90185-08002¥200

9046706211

main90467-06211¥80

90467C0068

main90467-C0068

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

14 parts on this diagram · 2 diagrams in section
