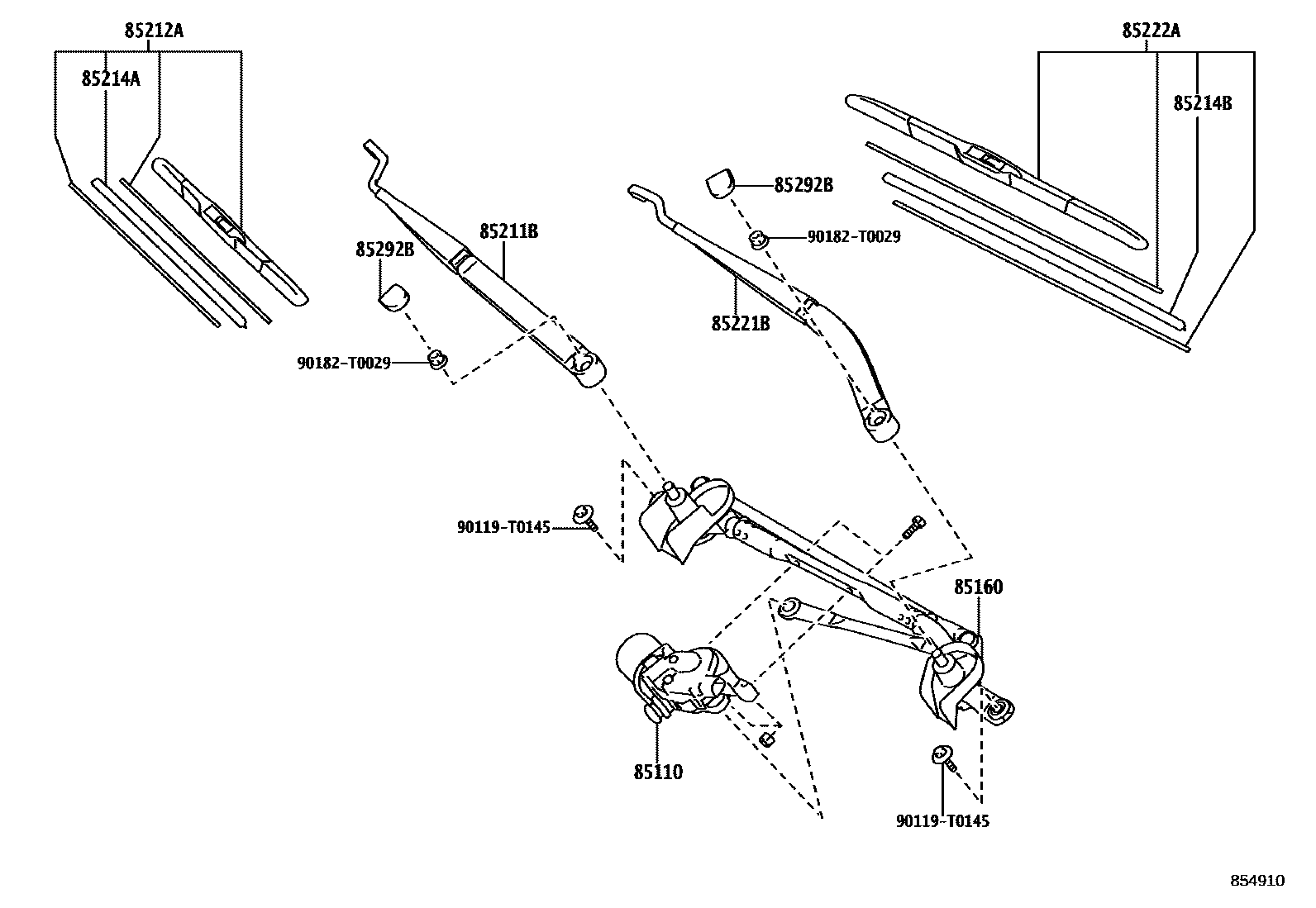

Toyota FORTUNER (SUV) — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K171iGGN155,TGN166..EPT202208-202403

main85110-0K201iGUN15#,16#..RHD..SA202208-202403

main85110-0K222iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main85110-0K251iGUN156,166,TGN166..IND202210-202309

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K140iGUN15#,16#..RHD..THP202208-202307

main85150-0K150iGGN155,GUN15#,165,TGN156,166..LHD..THP202208-202212

main85150-0K220iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main85150-0K230iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)202209-202308

main85150-0K240iGUN156,165,TGN166..VNP202209-202309

main85150-0K250iGUN156,166,TGN166..IND202210-202309

main85150-0K280iGGN155,GUN15#,165,TGN156,166..LHD..THP202212-202403

main85150-0K290iGUN15#,16#..RHD..SA202301-202403

main85150-0K300iGUN15#,LAN155,TGN156..LHD..SA202301-202401

85211BARM, FRONT WIPER, RH

main85211-0K131iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)202208-202403

main85211-0K140iGGN155,GUN156,16#,TGN156,166..AGTP202208-202403

85212ABLADE, FR WIPER, RH

main85212-42130iGGN155,GUN15#,165,TGN156,166..LHD..THP¥1,810202208-202403

main85212-71010iGUN15#,16#..RHD..SA¥3,190202208-202403

85214ARUBBER, WIPER, RH

main85214-28090iGGN155,GUN15#,165,TGN156,166..LHD..THP¥750202208-202403

main85214-53080iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)¥850202208-202403

85214BRUBBER, WIPER, LH

main85214-28090iGUN15#,16#..RHD..THP¥750202208-202403

main85214-53080iGGN155,GUN156,16#,TGN156,166..AGTP¥850202208-202403

85221BARM, FRONT WIPER, LH

main85221-0K130iGUN156,166,TGN166..IND¥3,180202208-202403

main85221-0K141iGGN155,GUN156,16#,TGN156,166..AGTP202208-202403

85222ABLADE, FR WIPER, LH

main85222-42130iGUN15#,16#..RHD..THP¥1,800202208-202403

main85222-71010iGGN155,GUN156,16#,TGN156,166..AGTP202208-202403

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iGGN155,GUN15#,16#,TGN156,166..THP¥200202208-202403

90119T0145

main90119-T0145

90182T0029

main90182-T0029

11 parts on this diagram · 2 diagrams in section
