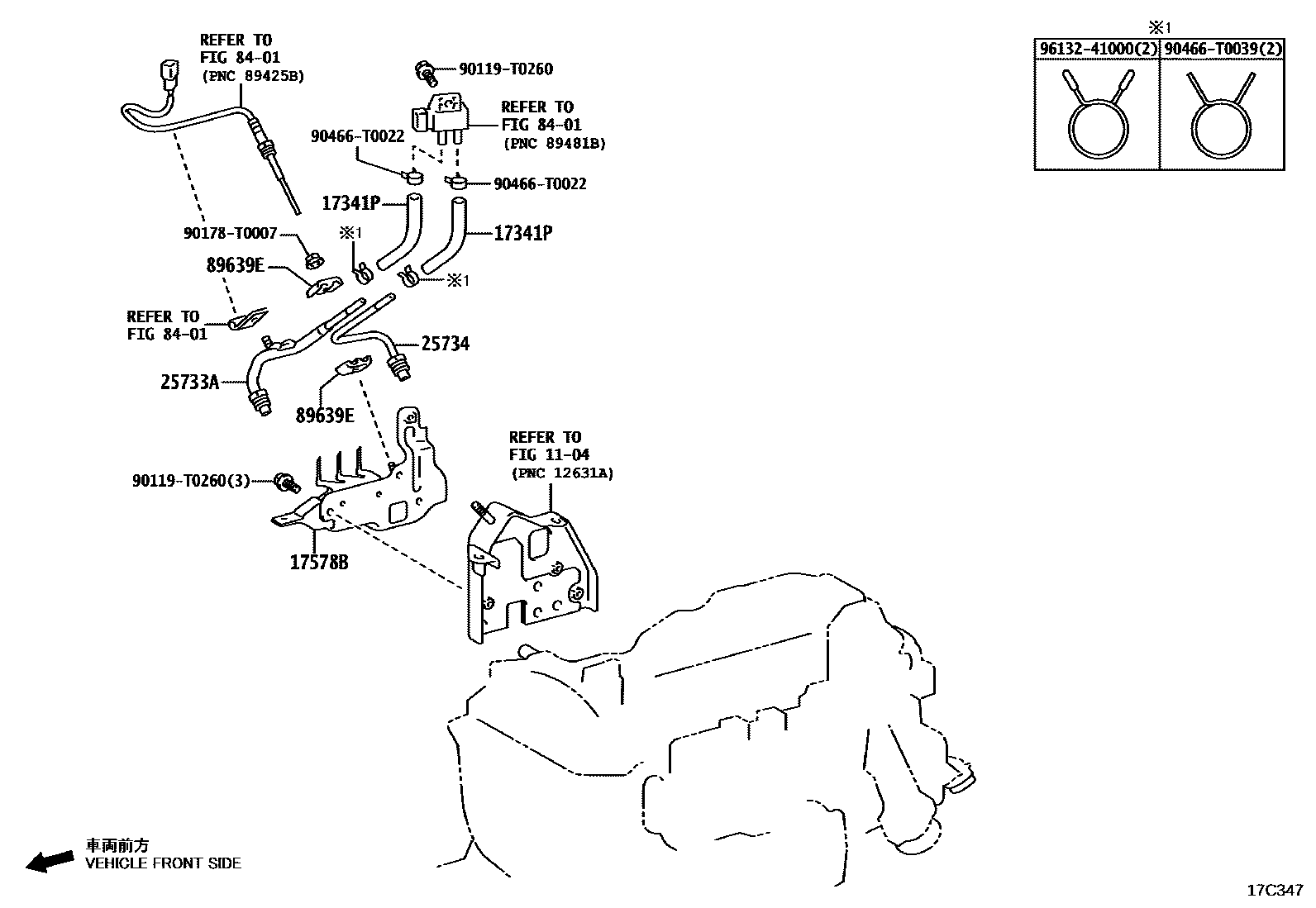

Toyota FORTUNER (SUV) — VACUUM PIPING
1104
17341PHOSE, AIR
THA SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
IND SOURCED PARTS
17578BCLAMP, PIPE
main17578-0E020i1GDFTV..GUN166..6FC..LA;2GDFTV..GUN165..IDNP..VN;1GDFTV..GUN156..(AGTP,IDNP,THP)..6FC..(ARL,BZAGT,VN)202208-202307
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
25733APIPE, VACUUM, NO.1
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
25734PIPE, VACUUM, NO.2
main25734-0E010i1GDFTV..GUN166..6FC..LA;2GDFTV..GUN165..IDNP..VN;1GDFTV..GUN156..(AGTP,IDNP,THP)..6FC..(ARL,BZAGT,VN)¥1,610202208-202307
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
8401
89639ECLAMP
main89639-0K010iGUN166..6FC..LA;GUN165..IDNP..VN;GUN156..(AGTP,IDNP,THP)..6FC..(ARL,BZAGT,VN)¥200202208-202307
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
90119T0260
main90119-T0260
90178T0007
90466T0022
main90466-T0022
90466T0039
9613241000
12 parts on this diagram · 5 diagrams in section
