Toyota FORTUNER (SUV) — STARTER

0001 112V 2.0KW(DENSO) 0002 112V 2.2KW(VALEO) 0003 112V 2.4KW(DENSO) 0004 112V 1.9KW(BOSCH/SEG) 0005 112V 1.4KW 0006 112V 2.2KW 0007 112V 1.6KW 0008 112V 1.4KW(SEG) 0009 112V 1.4KW

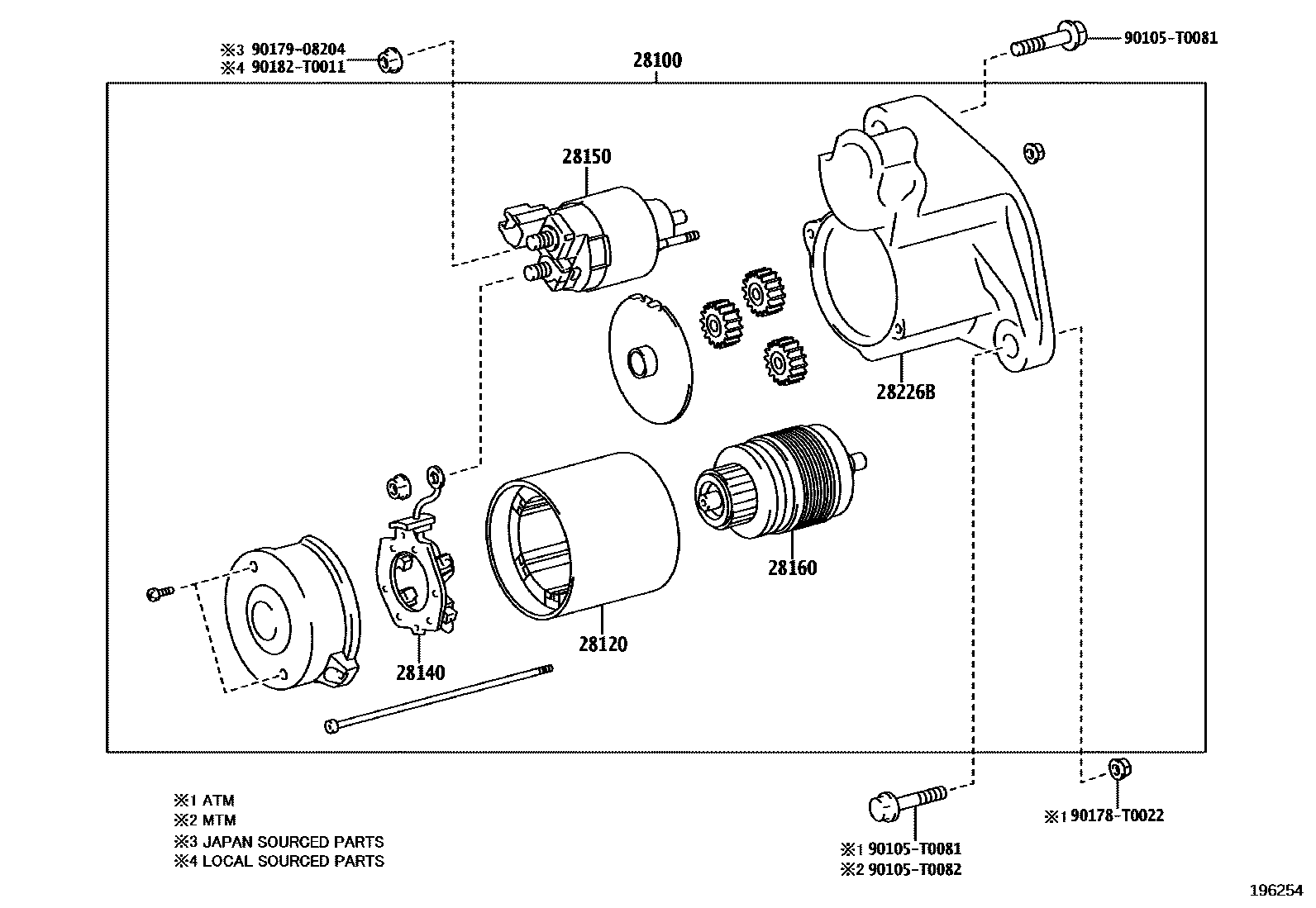

28100STARTER ASSY

main28100-0C090i2TRFE..TGN166..EPT202208-202403

12V 1.6KW

main28100-0C110i2TRFE..TGN156..SA202301-202401

12V 1.4KW

main28100-0C120i2TRFE..TGN156,166..AGTP202211-202310

12V 1.4KW

main28100-0L100i1GDFTV,2GDFTV..GUN15#,16#..TH¥84,400202208-202307

12V 2.4KW

main28100-0L100i1GDFTV,2GDFTV..GUN15#,16#..TH¥84,400202208-202307

12V 2.4KW,TOYOTA STOP & START SYSTEM-WITH

main28100-0L180i2GDFTV..GUN155,165..IDNP..6F¥76,600202209-202309

12V 2.0KW

main28100-0L180i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#,165..LHD..THP¥76,600202208-202310

12V 2.0KW,DENSO

main28100-0L180i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#,165..LHD..THP¥76,600202208-202307

12V 2.0KW,TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28100-0L190i1GDFTV..GUN166..IND;1GDFTV..GUN156..6F..IND202210-202309

12V 2.0KW

main28100-0L190i1GDFTV..GUN156..6FC..IND202210-202309

12V 2.0KW,TOYOTA STOP & START SYSTEM-WITHOUT

main28100-0L201i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

12V 1.9KW,BOSCH

main28100-0L221i1GDFTV..GUN156..6F..KEN202301-202403

12V 1.9KW

main28100-0L221i1GDFTV,2GDFTV..GUN15#,16#..6FC..SA202301-202403

12V 1.9KW,SEG

main28100-0L262i1GDFTV,2GDFTV..GUN15#,16#..TH202208-202307

12V 2.2KW,TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28100-0L262i2GDFTV..GUN155..THP..S202208-202307

12V 2.2KW,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),VALEO

main28100-0L262i1GDFTV,2GDFTV..GUN15#,16#..TH202208-202307

12V 2.2KW,VALEO

main28100-30110i1GDFTV..GUN156..6FC..IND¥84,400202210-202309

12V 2.4KW

main28100-31190i1GRFE..GGN155..LA¥58,800202208-202403

12V 1.4KW

main28100-54491i5LE..LAN155202301-202401

12V 2.2KW

28120YOKE ASSY, STARTER

main28120-0C090i2TRFE..TGN166..INDP,VNP202208-202403

main28120-0C120i2TRFE..TGN156,166..AGTP202211-202310

main28120-0L180i1GDFTV,2GDFTV..GUN15#,16#..THP..TH¥8,700202208-202403

DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN15#,16#..THP..TH¥8,700202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN15#,16#..THP..TH¥8,700202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),DENSO

main28120-0L180i1GDFTV,2GDFTV..GUN15#,16#..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN)¥8,700202208-202309

main28120-0L260i2GDFTV..GUN155..THP..S202208-202307

VALEO

main28120-0L260i2GDFTV..GUN155..THP..S202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),VALEO

main28120-0L260i2GDFTV..GUN155..THP..S202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28120-54260i5LE..LAN155202301-202401

main28120-66040i1GRFE..GGN155..EPT202208-202403

28140HOLDER ASSY, STARTER BRUSH

main28140-0C080i2TRFE..TGN156,166..PKN202208-202403

main28140-0C120i2TRFE..TGN156,166..AGTP202211-202310

main28140-0L180i2GDFTV..GUN155..THP..S¥0202208-202403

DENSO

main28140-0L180i2GDFTV..GUN155..THP..S¥0202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28140-0L180i2GDFTV..GUN155..THP..S¥0202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),DENSO

main28140-0L180i1GDFTV..GUN156..PKN¥0202208-202309

main28140-0L260i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#..LHD..THP..H202208-202307

VALEO

main28140-0L260i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#..LHD..THP..H202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),VALEO

main28140-0L260i2GDFTV..GUN155..THP..S202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28140-35060i1GRFE..GGN155..IDNP202208-202403

main28140-64040i5LE..LAN155202301-202401

28150SWITCH ASSY, MAGNET STARTER

main28150-0C080i2TRFE..TGN156,166..IDNP,MAP202208-202403

(L)

main28150-0C120i2TRFE..TGN156,166..AGTP202211-202310

main28150-0L260i2GDFTV..GUN155..THP..S202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28150-0L260i1GDFTV,2GDFTV..GUN15#,16#..THP..TH202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),VALEO

main28150-0L260i2GDFTV..GUN155..THP..S202208-202307

VALEO

main28150-0Y170i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#..LHD..THP..H202208-202403

DENSO

main28150-0Y170i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#..LHD..THP..H202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28150-0Y170i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#..LHD..THP..H202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),DENSO

main28150-0Y170i1GDFTV,2GDFTV..GUN15#,16#..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN)202208-202309

main28150-31190i1GRFE..GGN155..LA202208-202403

main28150-40130i2TRFE..TGN166..INDP,VNP¥9,400202208-202403

(J)

main28150-54330i5LE..LAN155¥14,500202301-202401

28160ARMATURE ASSY, STARTER

main28160-0C090i2TRFE..TGN156,166..THP202208-202403

main28160-0C120i2TRFE..TGN156,166..AGTP202211-202310

main28160-0L180i1GDFTV..GUN156..VNP;1GDFTV..GUN156..6F..IND;1GDFTV,2GDFTV..GUN16#..INDP,VNP202208-202309

main28160-0L180i2GDFTV..GUN155,165..THP..(L,S)..GCC202208-202403

DENSO

main28160-0L180i2GDFTV..GUN155,165..THP..(L,S)..GCC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28160-0L180i2GDFTV..GUN155,165..THP..(L,S)..GCC202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),DENSO

main28160-0L260i2GDFTV..GUN155..THP..S202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),VALEO

main28160-0L260i2GDFTV..GUN155..THP..S202208-202307

VALEO

main28160-0L260i2GDFTV..GUN155..THP..S202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28160-64041i5LE..LAN155¥18,500202301-202401

main28160-74070i1GRFE..GGN155..EPT202208-202403

28226BSTARTER KIT, REPAIR SERVICE

main28226-0C090i2TRFE..TGN156,166..PKN202208-202403

main28226-0C120i2TRFE..TGN156,166..AGTP202211-202310

main28226-0L180i1GDFTV,2GDFTV..GUN15#,16#..THP..TH¥19,700202208-202403

DENSO

main28226-0L180i1GDFTV,2GDFTV..GUN15#,16#..THP..TH¥19,700202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,DENSO

main28226-0L180i1GDFTV,2GDFTV..GUN15#,16#..THP..TH¥19,700202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),DENSO

main28226-0L180i1GDFTV..GUN156..VNP;1GDFTV..GUN156..6F..IND;1GDFTV,2GDFTV..GUN16#..INDP,VNP¥19,700202208-202309

main28226-0L260i2GDFTV..GUN155..THP..S202208-202307

VALEO

main28226-0L260i1GDFTV..GUN156..ARL;1GDFTV,2GDFTV..GUN15#..LHD..THP..H202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,VALEO

main28226-0L260i1GDFTV,2GDFTV..GUN15#,16#..THP..TH202208-202307

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),VALEO

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022¥100

9017908204

main90179-08204¥140

90182T0011

main90182-T0011¥110

11 parts on this diagram · 9 diagrams in section
