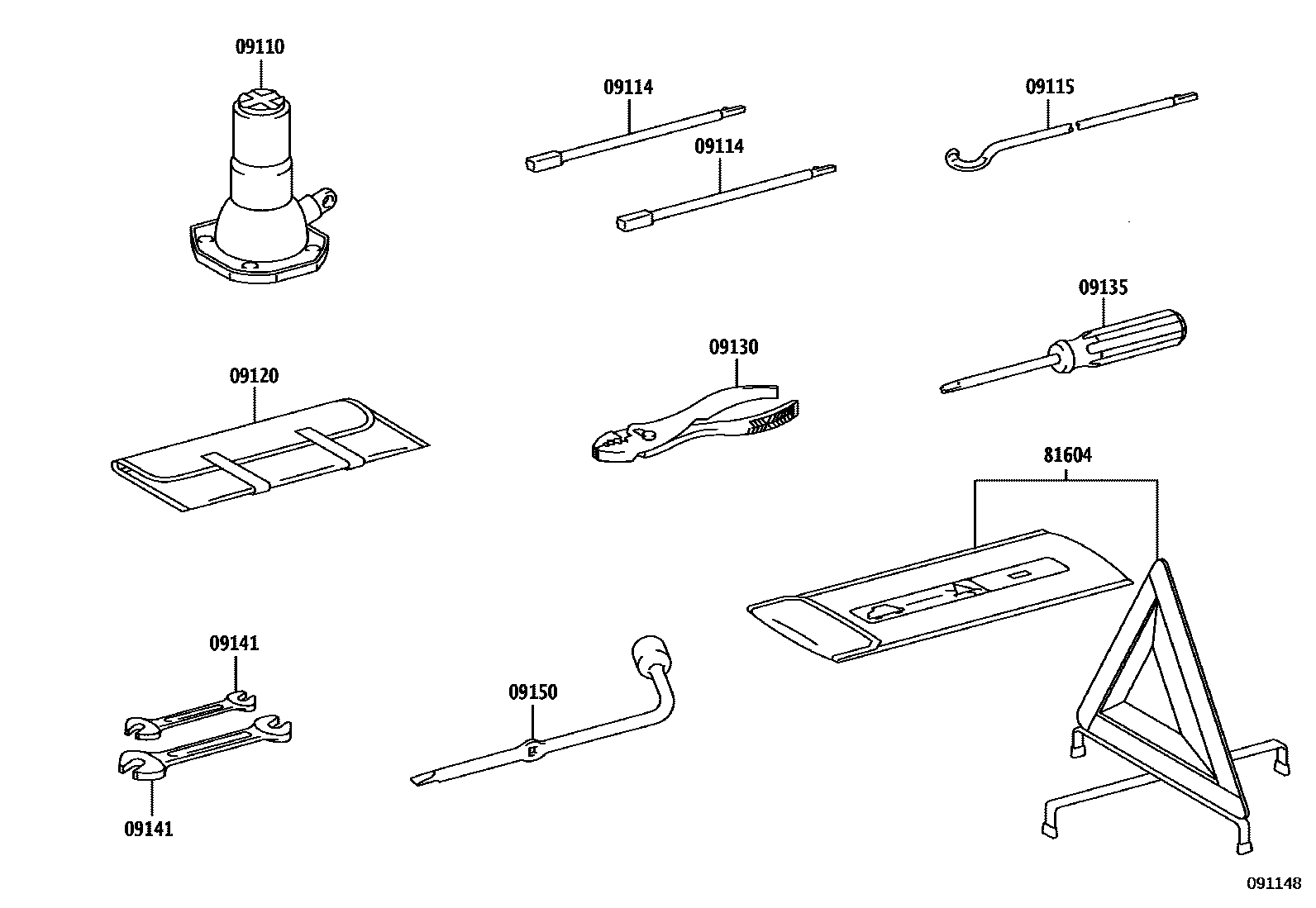

Toyota FORTUNER (SUV) — STANDARD TOOL

09110JACK ASSY

main09111-0K131iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main09111-0K162iGUN15#,TGN156..MA¥5,500202208-202403

main09111-0K190iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K160iGUN15#,TGN156..MA202208-202403

main09114-0K180iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main09114-0K200iGUN15#,16#,LAN155,TGN156..SA202301-202403

main09114-0K320iGUN156,165,TGN166..VNP202209-202309

main09114-0K340iGUN156,TGN156,166..PKNP202302

main09114-0K360iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K230iGUN15#,TGN156..MA202208-202403

main09115-0K240iGUN15#..KEN202301-202403

main09115-0K250iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main09115-0K290iGUN156,165,TGN166..VNP202209-202309

TYPE B:REFER ILLUST.

main09115-0K310iGUN156,TGN156,166..PKNP202302

main09115-0K340iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

09120BAG, TOOL

main09120-0K120iGUN156,TGN156,166..PKNP202302

main09120-0K200iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main09120-0K220iGUN156,166,TGN166..IND202210-202309

main09120-0K240iGGN155,GUN15#,16#,TGN156,166..THP¥1,180202208-202403

main09120-0K290iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main09120-0K310iGUN156,165,TGN166..VNP202209-202309

TYPE A:REFER ILLUST.

main09120-0K330iGUN15#,16#,LAN155,TGN156..SA202301-202403

09130PLIERS

main09130-0K020iGUN156,165,TGN166..VNP202209-202309

main90080-99020iGGN155,GUN156,16#,TGN156,166..LA202211-202310

main90089-99010iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP¥440202208-202403

09135DRIVER, SCREW

main09135-0K020iGUN156,165,TGN166..VNP202209-202309

main09135-0K060iGUN156,166,TGN166..IND202210-202309

main09135-0K070iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main90089-99009iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP¥500202208-202403

09141SPANNER

main09141-0K030iGGN155,GUN15#,TGN166..EPT,KEN¥530202208-202403

8 X 10

main09141-0K040iGUN15#,16#,LAN155,TGN156..SA¥800202208-202403

12 X 14

main09141-0K060iGUN156,165,TGN166..VNP202209-202309

8 X 10

main09141-0K070iGUN156,165,TGN166..VNP202209-202309

12 X 14

main09141-0K110iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

12 X 14

main09141-0K120iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

8 X 10

main09141-0K130iGUN156,166,TGN166..IND202210-202309

8 X 10

main90080-99015iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

8 X 10

main90080-99016iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

12 X 14

main90089-99006iGUN156,TGN156,166..PKNP¥440202302

8 X 10

main90089-99007iGUN156,TGN156,166..PKNP¥260202302

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGUN15#..KEN202301-202403

main09150-0K010iGGN155,TGN166..EPT¥1,300202208-202403

main09150-0K030iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main09150-0K070iGUN156,TGN156,166..PKNP202302

main09150-0K090iGUN156,165,TGN166..VNP202209-202309

main09150-0K100iGUN156,166,TGN166..IND202210-202309

main09150-0K110iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

81604REFLECTOR SET, TRIANGLE

main81604-0D020iGUN156,166,TGN166..IND202210-202309

9 parts on this diagram · 1 diagram in section
