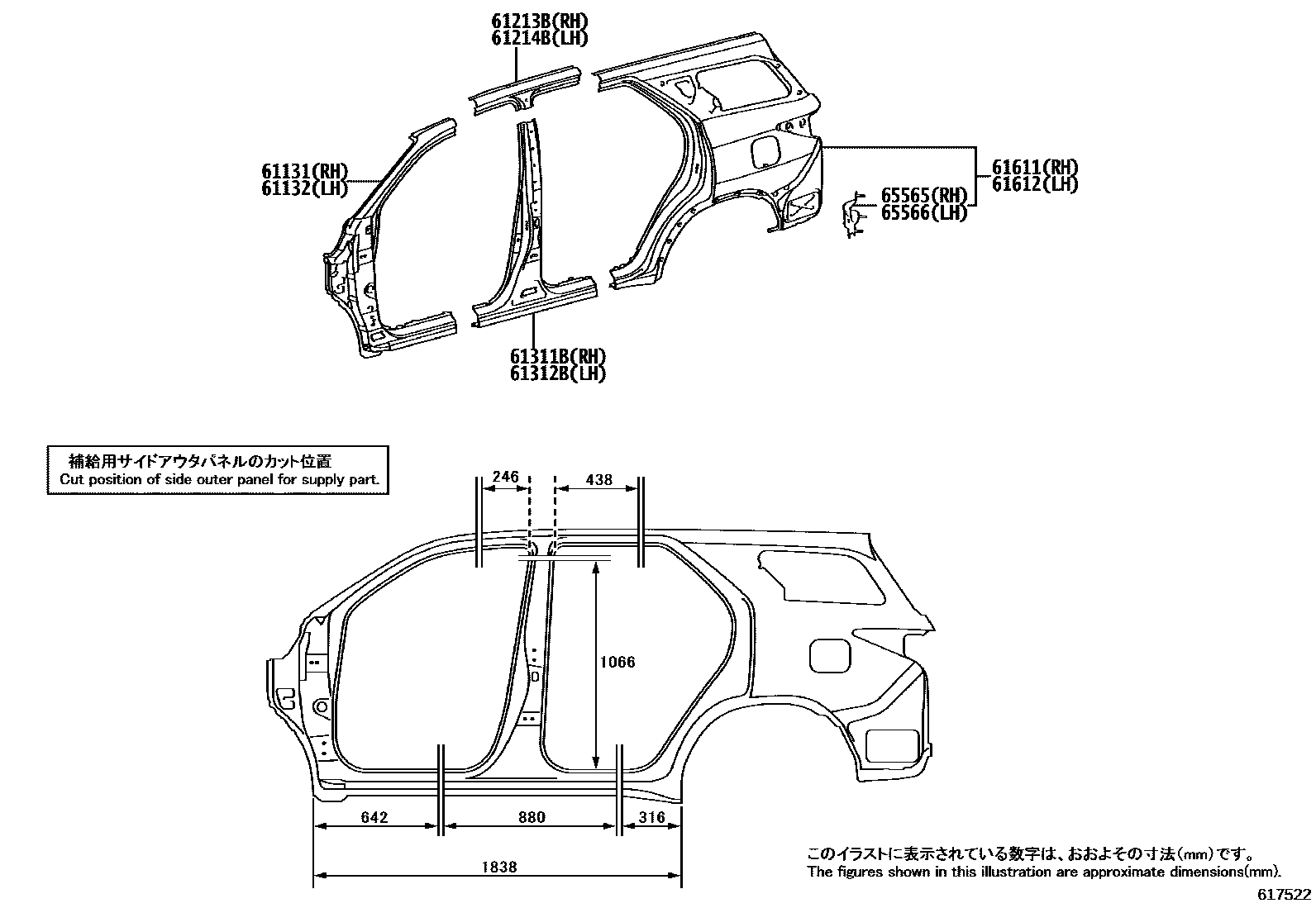

Toyota FORTUNER (SUV) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL RH 0003 1INNER PANEL LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK040iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK040iGGN155,GUN15#,TGN166..EPT,KEN202208-202403

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK020iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK020iGGN155,GUN156,16#,TGN156,166..AGTP202208-202403

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK020iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK020iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

61611PANEL, QUARTER, RH

main61601-KK010iGGN155,GUN155,165,TGN156,166..IDNP,MAP;GUN156,166..(IDNP,MAP)..(ARL,GCC,GEN,IDN,MA,VN)202208-202403

main61601-KK020iGUN156,TGN156..IDNP..VN;GUN156,TGN166..RHD..GEN202208-202310

BACK MONITOR-WITH(*PVM)

main61601-KK020iGUN156,TGN156..IDNP..VN;GUN156,TGN166..RHD..GEN202208-202310

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

61612PANEL, QUARTER, LH

main61602-KK010iGUN165..VNP..(L,S);GUN156,166,TGN166..INDP,VNP202208-202403

main61602-KK020iGUN165..S..PH;TGN166..IDNP..VN;GGN155,GUN156..IDNP..H..GCC202208-202310

BACK MONITOR-WITH(*PVM)

main61602-KK020iGUN155,165..H..TH202208-202310

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

65565PATCH, SIDE PANEL REAR END, RH

main65565-KK030iGUN155,165..H..TH202208-202310

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

main65565-KK030iGUN156..H..ARL202208-202310

BACK MONITOR-WITH(*PVM)

65566PATCH, SIDE PANEL REAR END, LH

main65566-KK030iGUN165..H..LA;GUN156..H..BZAGT202208-202310

BACK MONITOR-WITH(*PVM)

main65566-KK030iGUN155,165..H..TH202208-202310

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

10 parts on this diagram · 3 diagrams in section
