Toyota FORTUNER (SUV) — MIRROR

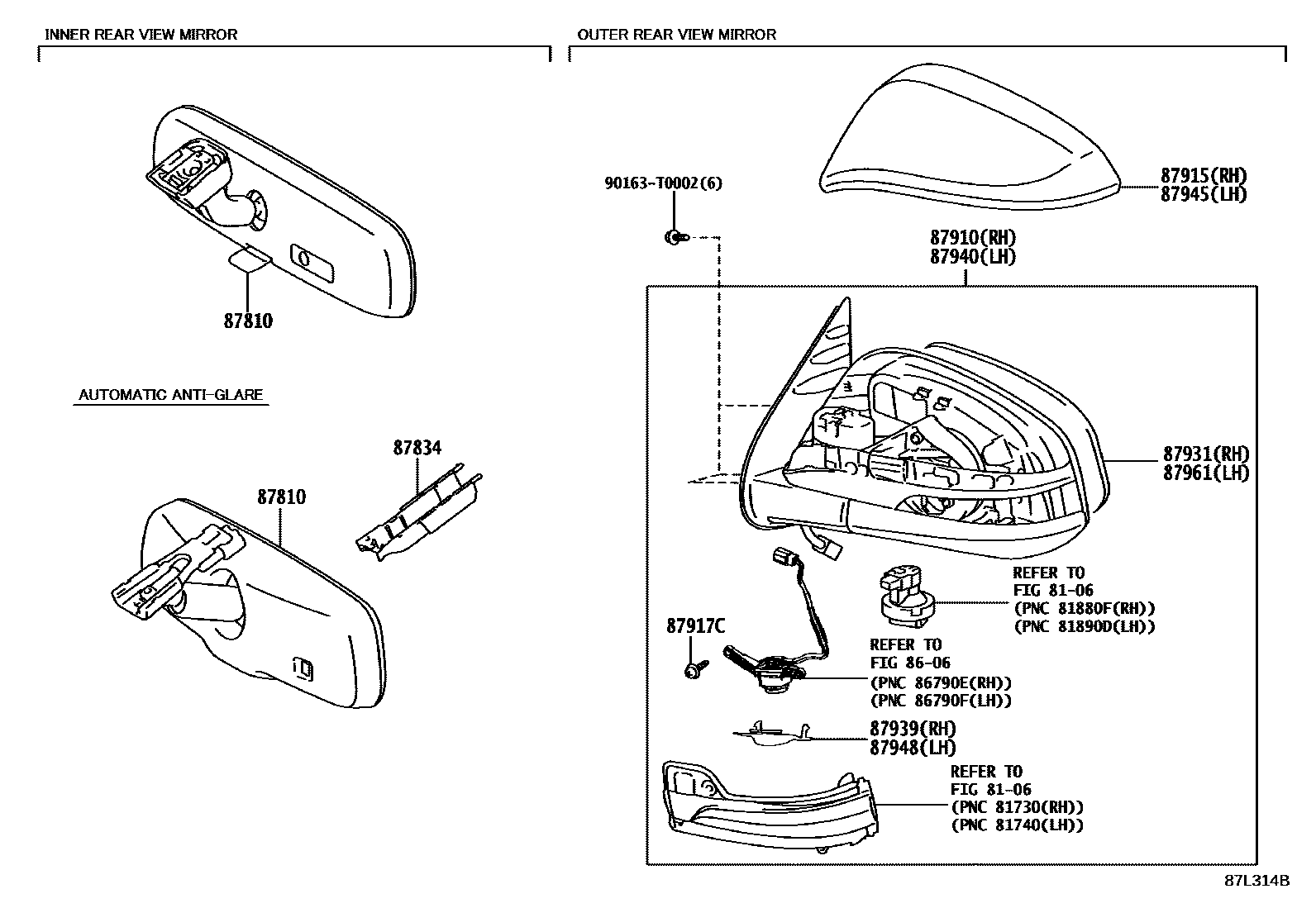

Parts diagram
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041i¥5,100202208-202403
main87810-0WG30i202208-202403
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0K010i202208-202403
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0K810i202208-202307
NO PAINT REQ.
main87910-0KD12i202208
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87910-0KD12i202208
NO PAINT REQ.
main87910-0KD22i¥23,900202301-202403
NO PAINT REQ.
main87910-0KE11i202211-202310
NO PAINT REQ.
main87910-0KE11i202211-202310
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87910-0KE42i202208
NO PAINT REQ.
main87910-0KE71i202211-202310
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KE71i202211-202310
NO PAINT REQ.
main87910-0KE71i202211-202310
NO PAINT REQ.,BACK MONITOR-WITHOUT
main87910-0KE81i202209-202308
NO PAINT REQ.
main87910-0KE91i202209-202309
NO PAINT REQ.
main87910-0KF01i202209-202308
NO PAINT REQ.
main87910-0KF01i202209-202308
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87910-0KF11i202209-202308
NO PAINT REQ.
main87910-0KF11i202209-202308
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KF21i202209-202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KF21i202209-202309
NO PAINT REQ.
main87910-0KF31i202210-202309
NO PAINT REQ.
main87910-0KG42i202208-202307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87910-0KG42i202208-202307
NO PAINT REQ.
main87910-0KJ31i202209-202308
NO PAINT REQ.
main87910-0KJ51i202209-202308
NO PAINT REQ.
main87910-0KL10i202208-202307
NO PAINT REQ.
main87910-0KL10i202208-202307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KL50i202209-202308
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KL50i202209-202308
NO PAINT REQ.
main87910-0KM70i202208-202307
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87910-0KM70i202208-202307
NO PAINT REQ.
main87910-0KN20i202209-202309
NO PAINT REQ.
main87910-0KN20i202209-202309
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87910-0KN20i202209-202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87910-0KN70i202211-202310
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87910-0KN70i202211-202310
NO PAINT REQ.
main87910-0KN70i202211-202310
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA)
87915COVER, OUTER MIRROR, RH
main87915-0K916i202301-202403
PAINT REQ.,BLACK
main87915-0K917i202209-202308
PAINT REQ.,BLACK
main87915-0K918i¥2,190202208
PAINT REQ.
main87915-0K919i202211-202310
PAINT REQ.
main87915-0K920i202209-202309
PAINT REQ.
main87915-0K921i202210-202309
PAINT REQ.
87917CSCREW, OUTER MIRROR
main87917-0KM00i¥170202208-202307
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87917-0KM00i¥170202208-202307
BACK MONITOR-WITH(*PVM)
main87917-0KN40i202209-202309
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87917-0KN40i202209-202309
BACK MONITOR-WITH(*PVM)
main87917-0KN40i202209-202308
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87917-0KN60i202211-202310
BACK MONITOR-WITH(*PVM)
main87917-0KN60i202211-202310
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87931OUTER MIRROR, RH
main87931-0A060i202208-202307
GR SPORT & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A060i202208-202307
MLM PACKAGE & ACCESSORY&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A060i202208-202307
MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A060i202208-202307
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A060i202208-202307
BACK MONITOR-WITH(*PVM)
main87931-0A060i202208-202307
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A100i202211-202310
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A100i202211-202310
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A100i202211-202310
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0A100i202211-202310
BACK MONITOR-WITH(*PVM)
main87931-0K540i202209-202309
main87931-0KB80i202209-202308
main87931-0KC10i202210-202309
main87931-0KC60i¥2,070202208
main87931-0KD00i202208-202307
main87931-0KF80i202211-202310
BACK MONITOR-WITHOUT
main87931-0KJ30i202209-202308
main87931-0KN40i202209-202309
BACK MONITOR-WITH(*PVM)
main87931-0KN40i202209-202309
BACK MONITOR-WITH&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0KN40i202209-202309
AUDIO-AVN(8INCH) & *BT&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87931-0KN40i202209-202309
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87939COVER, OUTER MIRROR HOLE, RH
main87939-0KM00i¥240202208-202307
BACK MONITOR-WITH(*PVM)
main87939-0KM00i¥240202208-202307
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87939-0KN40i202209-202309
BACK MONITOR-WITH(*PVM)
main87939-0KN40i202209-202309
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87939-0KN40i202209-202308
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87939-0KN60i202211-202310
BACK MONITOR-WITH(*PVM)
main87939-0KN60i202211-202310
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0KB72i202208
NO PAINT REQ.
main87940-0KB72i202208
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87940-0KB82i¥23,900202301-202403
NO PAINT REQ.
main87940-0KC61i202211-202310
NO PAINT REQ.
main87940-0KC61i202211-202310
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87940-0KC92i202208
NO PAINT REQ.
main87940-0KD21i202211-202310
NO PAINT REQ.,BACK MONITOR-WITHOUT
main87940-0KD21i202211-202310
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KD21i202211-202310
NO PAINT REQ.
main87940-0KD31i202209-202308
NO PAINT REQ.
main87940-0KD41i202209-202309
NO PAINT REQ.
main87940-0KD51i202209-202308
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87940-0KD51i202209-202308
NO PAINT REQ.
main87940-0KD61i202209-202308
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KD61i202209-202308
NO PAINT REQ.
main87940-0KD71i202209-202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KD71i202209-202309
NO PAINT REQ.
main87940-0KD81i202210-202309
NO PAINT REQ.
main87940-0KF60i202208-202307
NO PAINT REQ.
main87940-0KG12i202208-202307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
main87940-0KG12i202208-202307
NO PAINT REQ.
main87940-0KJ01i202209-202308
NO PAINT REQ.
main87940-0KJ21i202209-202308
NO PAINT REQ.
main87940-0KL10i202208-202307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KL10i202208-202307
NO PAINT REQ.
main87940-0KL50i202209-202308
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KL50i202209-202308
NO PAINT REQ.
main87940-0KM70i202208-202307
NO PAINT REQ.
main87940-0KM70i202208-202307
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87940-0KN20i202209-202309
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87940-0KN20i202209-202309
NO PAINT REQ.
main87940-0KN20i202209-202309
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87940-0KN70i202211-202310
NO PAINT REQ.
main87940-0KN70i202211-202310
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87940-0KN70i202211-202310
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA)
87945COVER, OUTER MIRROR, LH
main87945-0K916i202301-202403
PAINT REQ.,BLACK
main87945-0K917i202209-202308
PAINT REQ.,BLACK
main87945-0K918i¥2,190202208
PAINT REQ.
main87945-0K919i202211-202310
PAINT REQ.
main87945-0K920i202209-202309
PAINT REQ.
main87945-0K921i202210-202309
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
main87948-0KM00i¥240202208-202307
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87948-0KM00i¥240202208-202307
BACK MONITOR-WITH(*PVM)
main87948-0KN40i202209-202308
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87948-0KN40i202209-202309
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87948-0KN40i202209-202309
BACK MONITOR-WITH(*PVM)
main87948-0KN60i202211-202310
BACK MONITOR-WITH(*PVM)
main87948-0KN60i202211-202310
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87961MIRROR OUTER, LH
main87961-0A050i202208-202307
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0A050i202208-202307
MLM PACKAGE & ACCESSORY&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0A050i202208-202307
MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0A050i202208-202307
GR SPORT & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0A050i202208-202307
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0A050i202208-202307
BACK MONITOR-WITH(*PVM)
main87961-0A110i202211-202310
BACK MONITOR-WITH(*PVM)
main87961-0A110i202211-202310
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0A110i202211-202310
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0A110i202211-202310
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0K520i202209-202309
main87961-0KA40i202209-202308
main87961-0KA70i202210-202309
main87961-0KB20i¥2,070202208
main87961-0KB60i202208-202307
main87961-0KF40i202211-202310
BACK MONITOR-WITHOUT
main87961-0KJ00i202209-202308
main87961-0KN40i202209-202309
BACK MONITOR-WITH&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0KN40i202209-202309
AUDIO-AVN(8INCH) & *BT&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0KN40i202209-202309
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
main87961-0KN40i202209-202309
BACK MONITOR-WITH(*PVM)
90163T0002
main90163-T0002

14 parts on this diagram · 1 diagram in section
