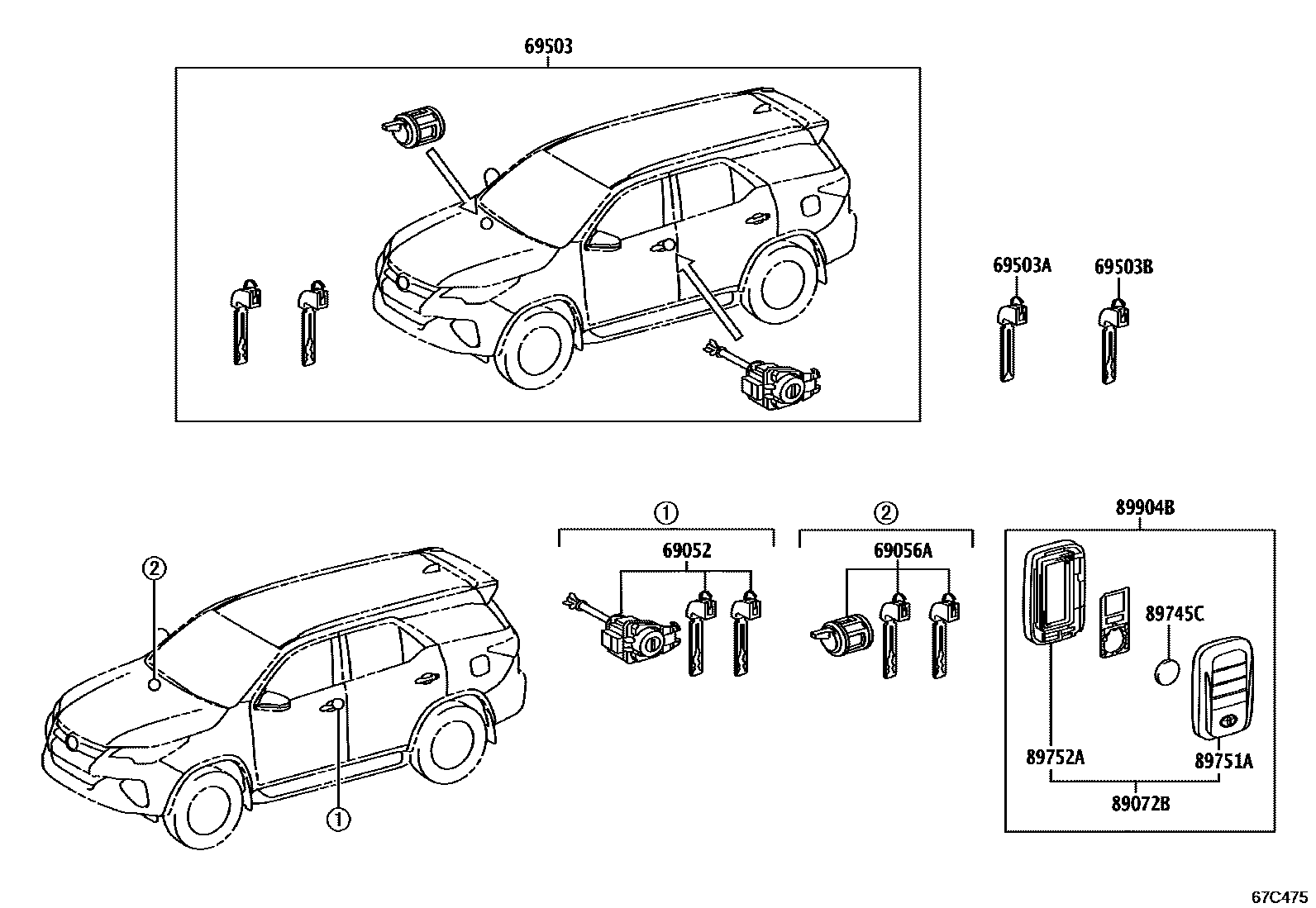

Toyota FORTUNER (SUV) — LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
main69056-0K090iGUN155,165..IDNP..H;GUN165..LHD..IDNP..S;TGN156,166..IDNP..(H,S);GGN155,GUN156,166..IDNP..(H,L)202209-202308
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main69056-0K090iGUN155,165..IDNP..H;GUN165..LHD..IDNP..S;TGN156,166..IDNP..(H,S);GGN155,GUN156,166..IDNP..(H,L)202209-202308
WIRELESS DOOR LOCK-WITH(*SES)
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
69503AKEY, BLANK
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),SMARTKEY,INSIDE CUT
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOROUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,SMART KEY,INSIDE CUT
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES),FOR SMART KEY
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),FOR SMART KEY
MASTER KEY,W(*68),FOR SMART KEY
69503BKEY, CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),SMARTKEY,INSIDE CUT
MASTER KEY,W(*68),FOR SMART KEY
main69515-33110iGUN155,165..IDNP..H;GUN165..LHD..IDNP..S;TGN156,166..IDNP..(H,S);GGN155,GUN156,166..IDNP..(H,L)¥7,100202209-202308
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES),FOR SMART KEY
main69515-33110iGUN155,165..IDNP..H;GUN165..LHD..IDNP..S;TGN156,166..IDNP..(H,S);GGN155,GUN156,166..IDNP..(H,L)¥7,100202209-202308
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),FOR SMART KEY
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
sub89072-0K761
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
89745CBATTERY, TRANSMITTER
CR2032,EXPORT FROM SA&MLM PACKAGE
CR2032,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
CR2032,EXPORT FROM SA&MLM PACKAGE&POWER BACK DOOR-WITH
CR2032,EXPORT FROM SA&POWER BACK DOOR-WITH
CR2032
CR2032,EXPORT FROM SA
CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
89751ACOVER, TRANSMITTER HOUSING
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main89751-0K140iGUN155..IDNP..H;GUN156..LHD..IDNP..GEN;GGN155,GUN156,16#,TGN156,166..(IDNP,MAP)..H..(GCC,IDN,MA)202208-202403
main89751-0K150iGUN156..RHD..GEN;GUN156..IDNP..(PH,VN);GGN155,GUN166,TGN156,166..H..(GEN,PH,VN)202208-202308
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
89752ACASE, TRANSMITTER HOUSING
sub89752-0K361
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
sub89904-0K781
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
POWER BACK DOOR-WITH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
main89904-0KL70iGUN156..RHD..GEN;GUN156..IDNP..(PH,VN);GGN155,GUN166,TGN156,166..H..(GEN,PH,VN)202209-202308
POWER BACK DOOR-WITH
10 parts on this diagram · 4 diagrams in section
