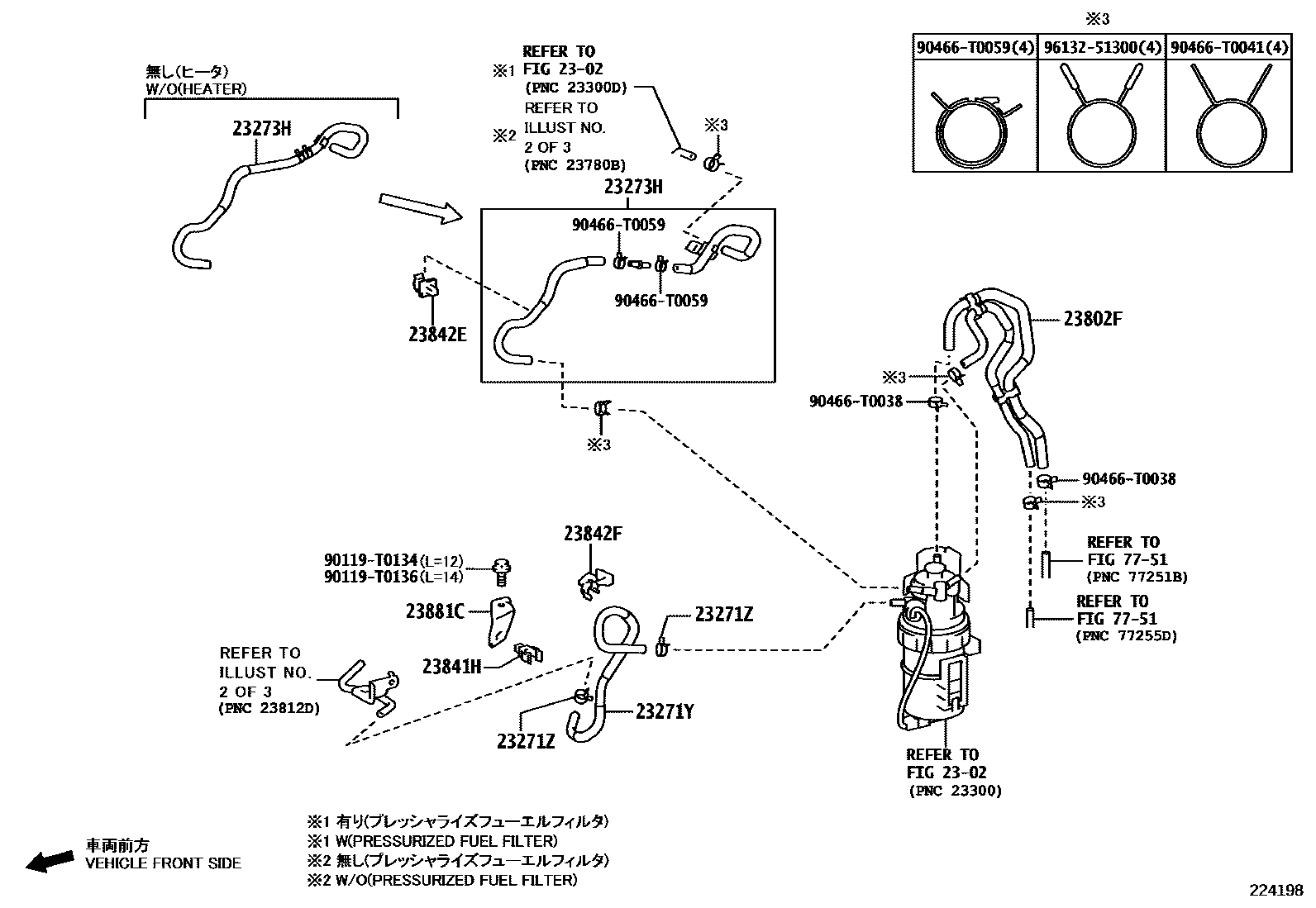

Toyota FORTUNER (SUV) — INJECTION PUMP ASSEMBLY

0001 1 0002 1W(PRESSURIZED FUEL FILTER) 0005 1W/O(PRESSURIZED FUEL FILTER) 0006 1 0007 1

2302

23271YHOSE, FUEL

main23271-0E041i1GDFTV,2GDFTV..GUN15#,16#..IDNP,MAP202208-202403

23271ZCLIP, HOSE

main90466-T0023i1GDFTV,2GDFTV..GUN15#,16#..SA202208-202403

23273HHOSE, FUEL, NO.2

main23273-0E040i1GDFTV..GUN156..L..BZAGT202211-202310

BRAZIL SPEC

main23273-0L132i1GDFTV,2GDFTV..GUN15#..KEN¥2,880202208-202403

main23273-0L200i2GDFTV..GUN155,165..L..(MA,PH)202209-202308

main23273-54190i5LE..LAN155202301-202401

23802FHOSE, FUEL

main23801-0E020i1GDFTV..GUN156,166..IND¥3,620202210-202309

main23801-0L050i1GDFTV..GUN156..PKNP202208-202403

23841HCLAMP, FUEL HOSE

main23841-0L010i1GDFTV,2GDFTV..GUN15#,16#..THP¥140202208-202403

THA SOURCED PARTS

main23841-0L030i1GDFTV..GUN156,166..IND¥140202210-202309

IND SOURCED PARTS

23842ECLAMP, FUEL PIPE, NO.1

main23841-0L041i1GDFTV..GUN156..PKNP¥170202208-202403

THA SOURCED PARTS

main23841-0L061i1GDFTV..GUN156,166..IND¥170202210-202309

IND SOURCED PARTS

23842FCLAMP, FUEL PIPE, NO.2

main23842-0L010i1GDFTV,2GDFTV..GUN15#,16#..THP¥300202208-202403

THA SOURCED PARTS

main23842-0L030i1GDFTV..GUN156,166..IND¥300202210-202309

IND SOURCED PARTS

23881CBRACKET, FUEL HOSE

main23881-0E011i1GDFTV,2GDFTV..GUN15#,16#..THP¥200202208-202403

TYPE B:REFER ILLUST.

7751

90119T0134

main90119-T0134¥90

90119T0136

main90119-T0136

90466T0038

main90466-T0038

90466T0041

main90466-T0041

90466T0059

main90466-T0059

9613251300

main96132-51300¥120

16 parts on this diagram · 5 diagrams in section
