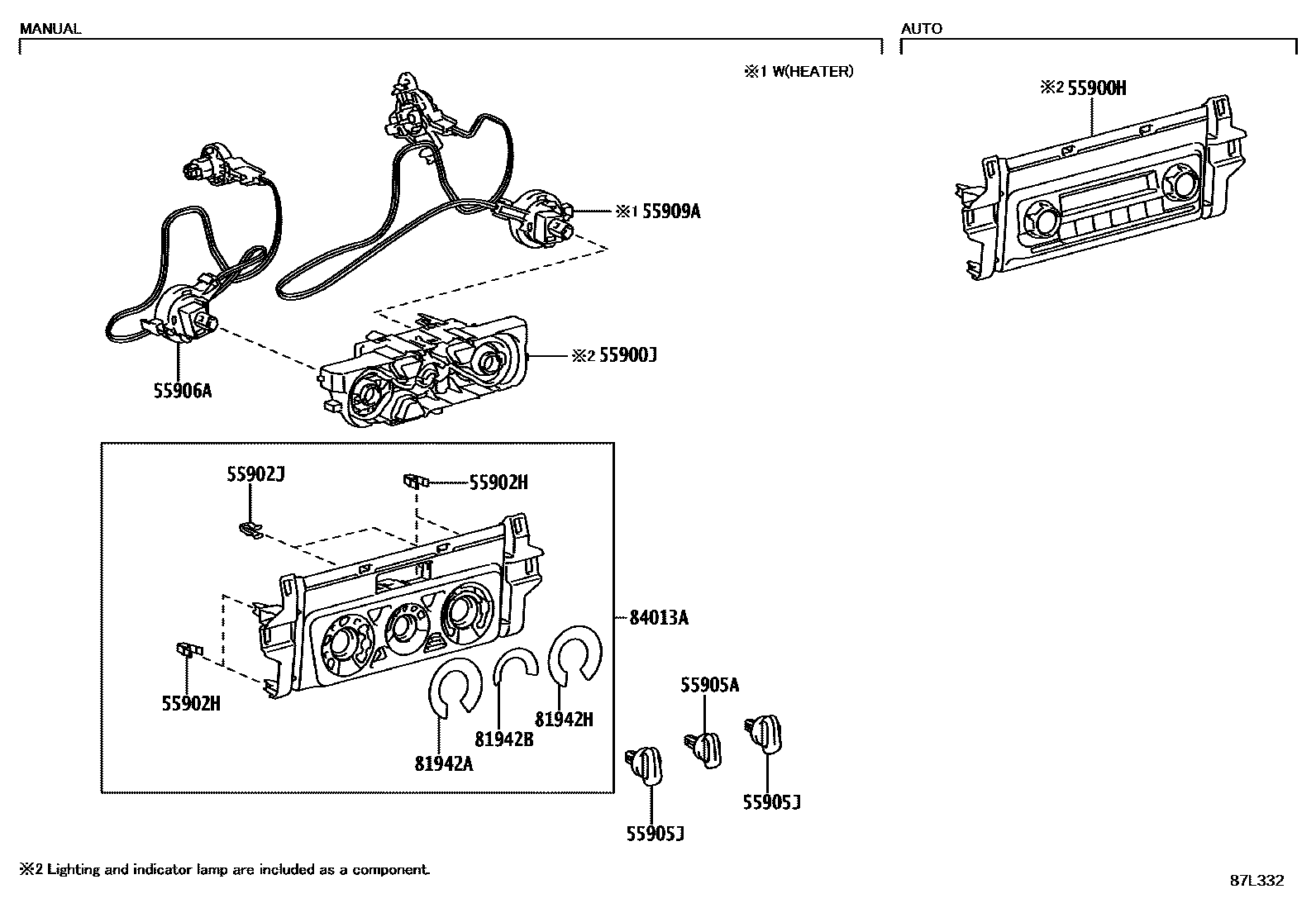

Toyota FORTUNER (SUV) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1ROOF AIR DUCT 0006 1SENSOR 0007 1SENSOR

55900HCONTROL ASSY, AIR CONDITIONER(AUTO)

main55900-0KN00iGUN156,16#,TGN156,166..IDNP..(H,S)..(PH,VN)202209-202308

ASEAN GENERAL SPEC

main55900-0KN10iGUN155,165..LHD..6FC..GEN202209-202308

FRONT AIR CONDITIONER-AUTO

main55900-0KN10iGGN155..GEN202209-202308

SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main55900-0KN20iTGN156..IDNP..L..GCC202209-202308

FRONT AIR CONDITIONER-AUTO

main55900-0KN30iGUN15#,TGN156..LHD..SA202301-202401

main55900-0KN70iGUN156,165,TGN166..VNP..6FC202209-202309

main55900-0KN80iGGN155..EPT202208-202403

main55900-0KN80iGGN155,GUN15#,TGN156..LHD..THP..(H,S)202208-202307

FRONT AIR CONDITIONER-AUTO

main55900-0KN90iGUN156,TGN166..RHD..GEN202209-202308

BRUNEI SPEC

main55900-0KN90iGUN156,TGN166..RHD..GEN202209-202308

ASEAN GENERAL SPEC

main55900-0KN90iGUN156..RHD..GEN202209-202308

SINGAPORE SPEC

main55900-0KP10iGUN15#,TGN156,166..RHD..GEN202209-202308

main55900-0KP20iGUN156,166..RHD..SA202208-202401

main55900-0KP20iGUN156..KEN202208-202403

main55900-0KP20iGUN156..THP..ARL202208-202307

main55900-0KP30iGUN156,166,TGN166..IND202210-202309

main55900-0KP40iGUN156,TGN156,166..PKNP202208

main55900-0KP40iGUN156,TGN156..MA202208-202308

main55900-0KP40iGUN15#,16#..TH202208-202307

main55900-0KP50iGGN155,GUN156,165,TGN166..AGTP..H202211-202310

FRONT AIR CONDITIONER-AUTO

55900JCONTROL ASSY, AIR CONDITIONER(MANUAL)

main55900-0KD50iGUN155..MA202209-202308

main55900-0KE70iGUN155..L..SA;GUN165,LAN155..SA202208-202401

main55900-0KE70iGUN155,TGN166..EPT,KEN202208-202403

main55900-0KE70iGUN155,165,TGN156,166..THP..L202208-202307

main55900-0KF50iGUN165..L..PH202209-202308

main55900-0KF60iGUN15#,165,TGN156,166..IDNP..L..(ARL,GCC,GEN,VN)202209-202308

main55900-0KF60iGUN165..VNP..L202209-202309

main55900-0KF60iGUN156,16#,TGN156,166..AGTP..(L,S)202209-202310

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-10203iGUN165..VNP..L¥60202208-202309

main90467-10203iGUN155,TGN166..EPT,KEN¥60202208-202403

main90467-10203iGUN15#,165,TGN156,166..IDNP..L..(ARL,GCC,GEN,VN)¥60202208-202308

main90467-10203iGUN155,165,TGN156,166..THP..L¥60202208-202307

main90467-10203iGUN156,16#,TGN156,166..AGTP..(L,S)¥60202208-202310

main90467-10203iGUN155..L..SA;GUN165,LAN155..SA¥60202208-202401

main90467-T0033iGUN155,165..L..(MA,PH)202209-202308

55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2

main90467-10203iLAN155¥60202208-202401

main90467-10203iGUN155,165,TGN156,166..THP..L¥60202208-202307

main90467-10203iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN,VN)¥60202208-202308

main90467-10203iTGN166..EPT¥60202208-202403

main90467-10203iGUN165..VNP..L¥60202208-202309

main90467-T0033iGUN155,165..L..(MA,PH)202209-202308

main90468-08048iGUN156,16#,TGN156,166..AGTP..(L,S)¥60202209-202310

main90468-08048iGUN155..L..GEN¥60202209-202308

SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main90468-08048iGUN155,165..L..SA¥60202209-202401

main90468-08048iGUN155..KEN¥60202209-202403

55905AKNOB, HEATER CONTROL

main55917-0K050iGUN155,165,TGN156,166..THP..L202208-202307

main55917-0K050iGUN15#,165,TGN156,166..(IDNP,MAP)..L202208-202308

main55917-0K050iGUN165..VNP..L202208-202309

main55917-0K050iGUN156,16#,TGN156,166..AGTP..(L,S)202208-202310

main55917-0K050iGUN155..L..SA;GUN165,LAN155..SA202208-202401

main55917-0K050iGUN155,TGN166..EPT,KEN202208-202403

55905JKNOB SUB-ASSY, CONTROL

main55905-0K180iGUN155,165,TGN156,166..THP..L202208-202307

main55905-0K180iGUN15#,165,TGN156,166..(IDNP,MAP)..L202208-202308

main55905-0K180iGUN165..VNP..L202208-202309

main55905-0K180iGUN156,16#,TGN156,166..AGTP..(L,S)202208-202310

main55905-0K180iGUN155..L..SA;GUN165,LAN155..SA202208-202401

main55905-0K180iGUN155,TGN166..EPT,KEN202208-202403

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0K060iGUN155,165,TGN156,166..THP..L¥1,250202208-202307

main55906-0K060iGUN15#,165,TGN156,166..(IDNP,MAP)..L¥1,250202208-202308

main55906-0K060iGUN165..VNP..L¥1,250202208-202309

main55906-0K060iGUN156,16#,TGN156,166..AGTP..(L,S)¥1,250202208-202310

main55906-0K060iGUN155..L..SA;GUN165,LAN155..SA¥1,250202208-202401

main55906-0K060iGUN155,TGN166..EPT,KEN¥1,250202208-202403

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K060iGUN15#,165,TGN156,166..IDNP..L..(ARL,GCC,GEN,VN)¥1,250202208-202308

main55909-0K060iGUN155,165,TGN156,166..THP..L¥1,250202208-202307

main55909-0K060iGUN165..VNP..L¥1,250202208-202309

main55909-0K060iGUN156,16#,TGN156,166..AGTP..(L,S)¥1,250202208-202310

main55909-0K060iGUN155..L..SA;GUN165,LAN155..SA¥1,250202208-202401

main55909-0K060iGUN155,TGN166..EPT,KEN¥1,250202208-202403

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-0K050iGUN165..VNP..L202208-202309

main81941-0K050iGUN155,165,TGN156,166..THP..L202208-202307

main81941-0K050iGUN15#,165,TGN156,166..(IDNP,MAP)..L202208-202308

main81941-0K050iGUN156,16#,TGN156,166..AGTP..(L,S)202208-202310

main81941-0K050iGUN155..L..SA;GUN165,LAN155..SA202208-202401

main81941-0K050iGUN155,TGN166..EPT,KEN202208-202403

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0K710iGUN15#,165,TGN156,166..(IDNP,MAP)..L202208-202308

main81942-0K710iGUN165..VNP..L202208-202309

main81942-0K710iGUN155,165,TGN156,166..THP..L202208-202307

main81942-0K710iGUN156,16#,TGN156,166..AGTP..(L,S)202208-202310

main81942-0K710iGUN155..L..SA;GUN165,LAN155..SA202208-202401

main81942-0K710iGUN155,TGN166..EPT,KEN202208-202403

81942HSHEET, HEATER CONTROL NAME, NO.3

main81943-0K080iGUN155,TGN166..EPT,KEN202208-202403

main81943-0K080iGUN155,165,TGN156,166..THP..L202208-202307

main81943-0K080iGUN15#,165,TGN156,166..IDNP..L..(ARL,GCC,GEN,VN)202208-202308

main81943-0K080iGUN165..VNP..L202208-202309

main81943-0K080iGUN156,16#,TGN156,166..AGTP..(L,S)202208-202310

main81943-0K080iGUN155..L..SA;GUN165,LAN155..SA202208-202401

main81943-0K180iGUN155,165..L..(MA,PH)202209-202308

84013APANEL SUB-ASSY, INTEGRATION

main55406-KK100iLAN155202208-202401

main55406-KK100iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202208-202308

main55406-KK100iGUN155,165,TGN156,166..THP..L202208-202307

main55406-KK100iTGN166..EPT202208-202403

main55406-KK110iGUN165..VNP..L202209-202309

main55406-KK110iGUN165..IDNP..L..VN202209-202308

main55406-KK250iGUN155,165..L..(MA,PH)202209-202308

main55406-KK290iGUN155,165..L..SA202209-202401

main55406-KK290iGUN156..IDNP..ARL202209-202308

main55406-KK290iGUN155..KEN202209-202403

main55406-KK300iGUN155..L..GEN202209-202308

SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main55406-KK300iGUN156,16#,TGN156,166..AGTP..(L,S)202209-202310

12 parts on this diagram · 7 diagrams in section
