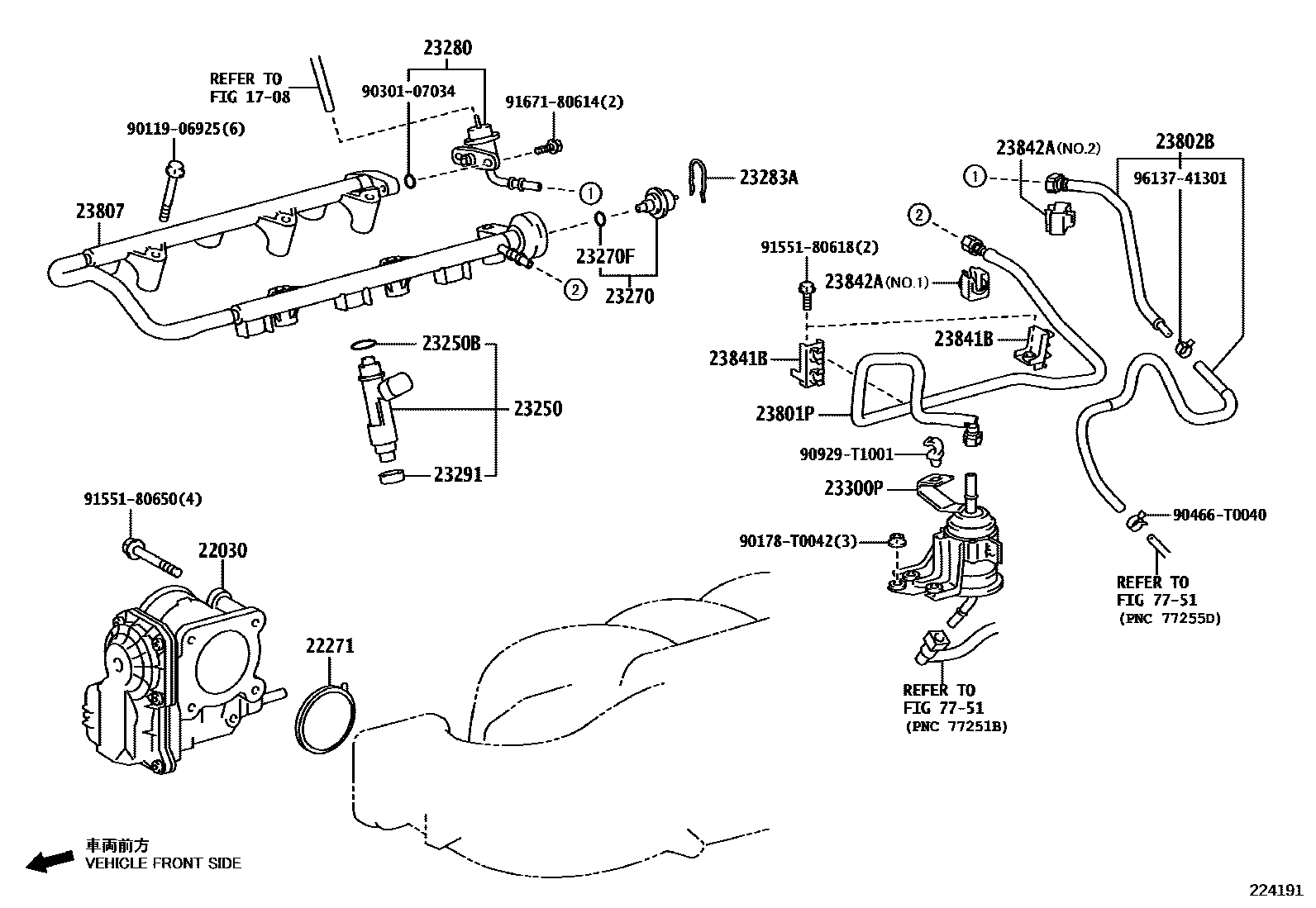

Toyota FORTUNER (SUV) — FUEL INJECTION SYSTEM

0001 1 0002 1

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C030i2TRFE..TGN156..SA202208-202401

(L)

main22030-0C030i2TRFE..TGN156,166..PKN202208

(L)

main22030-0C030i2TRFE..TGN156,166..THP202208-202307

(L)

main22030-0C030i2TRFE..TGN166..INDP,VNP202208-202309

(L)

main22030-0C030i2TRFE..TGN156,166..(IDNP,MAP)..(GCC,GEN,MA,VN)202208-202308

(L)

main22030-0C030i2TRFE..TGN156,166..AGTP202208-202310

(L)

main22030-0C030i2TRFE..TGN166..EPT202208-202403

(L)

main22030-0C060i2TRFE..TGN166..IDN202209-202308

main22030-31010i1GRFE..GGN155..THP¥52,700202208-202307

main22030-31010i1GRFE..GGN155..LA¥52,700202208-202310

main22030-31010i1GRFE..GGN155..IDNP¥52,700202208-202308

main22030-31010i1GRFE..GGN155..EPT¥52,700202208

main22030-75040i2TRFE..TGN156,166..PKN¥52,700202208

(J)

main22030-75040i2TRFE..TGN156,166..(IDNP,MAP)..(GCC,GEN,MA,VN)¥52,700202208-202308

(J)

main22030-75040i2TRFE..TGN166..INDP,VNP¥52,700202208-202309

(J)

main22030-75040i2TRFE..TGN156,166..AGTP¥52,700202208-202310

(J)

main22030-75040i2TRFE..TGN156..SA¥52,700202208-202401

(J)

main22030-75040i2TRFE..TGN166..EPT¥52,700202208-202403

(J)

main22030-75040i2TRFE..TGN156,166..THP¥52,700202208-202307

(J)

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TGN156,166..THP¥460202208-202307

main22271-0C021i2TRFE..TGN156,166..IDNP,MAP¥460202208-202308

main22271-0C021i2TRFE..TGN166..INDP,VNP¥460202208-202309

main22271-0C021i2TRFE..TGN156,166..AGTP¥460202208-202310

main22271-0C021i2TRFE..TGN156..SA¥460202208-202401

main22271-0C021i2TRFE..TGN166..EPT¥460202208-202403

main22271-0C021i2TRFE..TGN156,166..PKN¥460202208

main22271-31012i1GRFE..GGN155..LA¥340202208-202310

main22271-31012i1GRFE..GGN155..EPT¥340202208

main22271-31012i1GRFE..GGN155..THP¥340202208-202307

main22271-31012i1GRFE..GGN155..IDNP¥340202208-202308

23250INJECTOR ASSY, FUEL

main23209-09320i2TRFE..TGN156,166..PKN202208

(L)

main23209-09320i2TRFE..TGN156,166..AGTP202208-202310

(L)

main23209-09320i2TRFE..TGN156,166..THP202208-202307

(L)

main23209-09320i2TRFE..TGN156,166..IDNP,MAP202208-202308

(L)

main23209-09320i2TRFE..TGN156..SA202208-202401

(L)

main23209-09320i2TRFE..TGN166..INDP,VNP202208-202309

(L)

main23209-09320i2TRFE..TGN166..EPT202208-202403

(L)

main23209-39015i1GRFE..GGN155..IDNP¥12,700202303-202308

main23209-39015i1GRFE..GGN155..THP¥12,700202303-202307

main23209-39015i1GRFE..GGN155..LA¥12,700202303-202310

main23209-39015i1GRFE..GGN155..EPT¥12,700202303

main23209-39075i1GRFE..GGN155¥14,000202208-202303

sub23209-39015¥12,700

main23209-79215i2TRFE..TGN166..EPT¥12,600202208-202403

(J)

main23209-79215i2TRFE..TGN156,166..THP¥12,600202208-202307

(J)

main23209-79215i2TRFE..TGN156,166..PKN¥12,600202208

(J)

main23209-79215i2TRFE..TGN166..INDP,VNP¥12,600202208-202309

(J)

main23209-79215i2TRFE..TGN156,166..AGTP¥12,600202208-202310

(J)

main23209-79215i2TRFE..TGN156,166..IDNP,MAP¥12,600202208-202308

(J)

main23209-79215i2TRFE..TGN156..SA¥12,600202208-202401

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1GRFE..GGN155..LA¥140202208-202310

main90301-07033i1GRFE..GGN155..THP¥140202208-202307

main90301-07033i1GRFE..GGN155..IDNP¥140202208-202308

main90301-07033i1GRFE..GGN155..EPT¥140202208

main90301-07037i2TRFE..TGN156..SA¥140202208-202401

(J)

main90301-07037i2TRFE..TGN166..EPT¥140202208-202403

(J)

main90301-07037i2TRFE..TGN156,166..THP¥140202208-202307

(J)

main90301-07037i2TRFE..TGN156,166..IDNP,MAP¥140202208-202308

(J)

main90301-07037i2TRFE..TGN166..INDP,VNP¥140202208-202309

(J)

main90301-07037i2TRFE..TGN156,166..AGTP¥140202208-202310

(J)

main90301-07037i2TRFE..TGN156,166..PKN¥140202208

(J)

main90301-T0051i2TRFE..TGN156,166..THP202208-202307

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31140i1GRFE..GGN155..THP¥0202208-202307

main23270-31140i1GRFE..GGN155..LA¥0202208-202310

main23270-31140i1GRFE..GGN155..IDNP¥0202208-202308

main23270-31140i1GRFE..GGN155..EPT¥0202208

main23270-75050i2TRFE..TGN156,166..THP¥4,020202208-202307

main23270-75050i2TRFE..TGN156,166..IDNP,MAP¥4,020202208-202308

main23270-75050i2TRFE..TGN166..INDP,VNP¥4,020202208-202309

main23270-75050i2TRFE..TGN156,166..AGTP¥4,020202208-202310

main23270-75050i2TRFE..TGN156..SA¥4,020202208-202401

main23270-75050i2TRFE..TGN166..EPT¥4,020202208-202403

main23270-75050i2TRFE..TGN156,166..PKN¥4,020202208

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GGN155..IDNP¥140202208-202308

main90301-07033i1GRFE..GGN155..EPT¥140202208

main90301-07033i1GRFE..GGN155..THP¥140202208-202307

main90301-07033i1GRFE..GGN155..LA¥140202208-202310

main90301-07037i2TRFE..TGN156,166..PKN¥140202208

main90301-07037i2TRFE..TGN156,166..THP¥140202208-202307

main90301-07037i2TRFE..TGN156,166..IDNP,MAP¥140202208-202308

main90301-07037i2TRFE..TGN166..INDP,VNP¥140202208-202309

main90301-07037i2TRFE..TGN156,166..AGTP¥140202208-202310

main90301-07037i2TRFE..TGN156..SA¥140202208-202401

main90301-07037i2TRFE..TGN166..EPT¥140202208-202403

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31041i1GRFE..GGN155..LA¥6,000202208-202310

main23280-31041i1GRFE..GGN155..IDNP¥6,000202208-202308

main23280-31041i1GRFE..GGN155..EPT¥6,000202208

main23280-31041i1GRFE..GGN155..THP¥6,000202208-202307

main23280-75100i2TRFE..TGN156..SA¥6,000202208-202401

main23280-75100i2TRFE..TGN166..EPT¥6,000202208-202403

main23280-75100i2TRFE..TGN156,166..IDNP,MAP¥6,000202208-202308

main23280-75100i2TRFE..TGN156,166..PKN¥6,000202208

main23280-75100i2TRFE..TGN166..INDP,VNP¥6,000202208-202309

main23280-75100i2TRFE..TGN156,166..THP¥6,000202208-202307

main23280-75100i2TRFE..TGN156,166..AGTP¥6,000202208-202310

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GGN155..THP¥160202208-202307

main23283-31010i1GRFE..GGN155..IDNP¥160202208-202308

main23283-31010i1GRFE..GGN155..LA¥160202208-202310

main23283-31010i1GRFE..GGN155..EPT¥160202208

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010i2TRFE..TGN156..SA202208-202401

THA SOURCED PARTS

main23291-0C010i2TRFE..TGN156,166..THP202208-202307

THA SOURCED PARTS

main23291-0C010i2TRFE..TGN156,166..IDNP,MAP202208-202308

THA SOURCED PARTS

main23291-0C010i2TRFE..TGN166..INDP,VNP202208-202309

THA SOURCED PARTS

main23291-0C010i2TRFE..TGN156,166..AGTP202208-202310

THA SOURCED PARTS

main23291-0C010i2TRFE..TGN166..EPT202208-202403

THA SOURCED PARTS

main23291-0C010i2TRFE..TGN156,166..PKN202208

THA SOURCED PARTS

main23291-0C020i2TRFE..TGN166..INDP,VNP202209-202309

IDN SOURCED PARTS

main23291-0C020i2TRFE..TGN156,166..AGTP202209-202310

IDN SOURCED PARTS

main23291-0C020i2TRFE..TGN156..SA202209-202401

IDN SOURCED PARTS

main23291-0C020i2TRFE..TGN166..EPT202209-202403

IDN SOURCED PARTS

main23291-0C020i2TRFE..TGN156,166..PKN202209

IDN SOURCED PARTS

main23291-0C020i2TRFE..TGN156,166..IDNP,MAP202209-202308

IDN SOURCED PARTS

main23291-23010i1GRFE..GGN155..LA¥240202208-202310

main23291-23010i1GRFE..GGN155..THP¥240202208-202307

main23291-23010i1GRFE..GGN155..EPT¥240202208

main23291-23010i1GRFE..GGN155..IDNP¥240202208-202308

main23291-73010i2TRFE..TGN156,166..THP¥250202208-202307

JAPAN SOURCED PARTS

23300PFILTER, FUEL(FOR EFI)

main23300-31120i1GRFE..GGN155..THP¥4,550202208-202307

main23300-31120i1GRFE..GGN155..LA¥4,550202208-202310

main23300-31120i1GRFE..GGN155..EPT¥4,550202208-202403

main23300-31120i1GRFE..GGN155..IDNP¥4,550202208-202308

main23300-75140i2TRFE..TGN156,166..PKN¥4,550202208

main23300-75140i2TRFE..TGN156,166..THP¥4,550202208-202307

main23300-75140i2TRFE..TGN156,166..(IDNP,MAP)..(GCC,GEN,MA,VN)¥4,550202208-202308

main23300-75140i2TRFE..TGN166..INDP,VNP¥4,550202208-202309

main23300-75140i2TRFE..TGN156,166..AGTP¥4,550202208-202310

main23300-75140i2TRFE..TGN156..SA¥4,550202208-202401

main23300-75140i2TRFE..TGN166..EPT¥4,550202208-202403

main23300-75160i2TRFE..TGN166..IDN¥4,550202209-202308

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31250i1GRFE..GGN155..THP202208-202307

main23801-31250i1GRFE..GGN155..IDNP202208-202308

main23801-31250i1GRFE..GGN155..EPT202208

main23801-31250i1GRFE..GGN155..LA202208-202310

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31190i1GRFE..GGN155..EPT202208

main23802-31190i1GRFE..GGN155..THP202208-202307

main23802-31190i1GRFE..GGN155..IDNP202208-202308

main23802-31190i1GRFE..GGN155..LA202208-202310

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31010i1GRFE..GGN155..THP¥9,000202208-202307

main23807-31010i1GRFE..GGN155..IDNP¥9,000202208-202308

main23807-31010i1GRFE..GGN155..LA¥9,000202208-202310

main23807-31010i1GRFE..GGN155..EPT¥9,000202208

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030i1GRFE..GGN155..IDNP¥210202208-202308

main23841-31030i1GRFE..GGN155..THP¥210202208-202307

main23841-31030i1GRFE..GGN155..LA¥210202208-202310

main23841-31030i1GRFE..GGN155..EPT¥210202208

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GGN155..LA¥450202208-202310

NO.1

main23842-31020i1GRFE..GGN155..THP¥450202208-202307

NO.1

main23842-31020i1GRFE..GGN155..IDNP¥450202208-202308

NO.1

main23842-31020i1GRFE..GGN155..EPT¥450202208

NO.1

main23842-31030i1GRFE..GGN155..THP¥450202208-202307

NO.2

main23842-31030i1GRFE..GGN155..IDNP¥450202208-202308

NO.2

main23842-31030i1GRFE..GGN155..LA¥450202208-202310

NO.2

main23842-31030i1GRFE..GGN155..EPT¥450202208

NO.2

7751

9011906925

main90119-06925¥80

90178T0042

main90178-T0042

9030107034

main90301-07034¥140

90466T0040

main90466-T0040¥100

90929T1001

main90929-T1001

9155180618

main91551-80618¥60

9155180650

main91551-80650¥80

9167180614

main91671-80614¥60

9613741301

main96137-41301¥120
