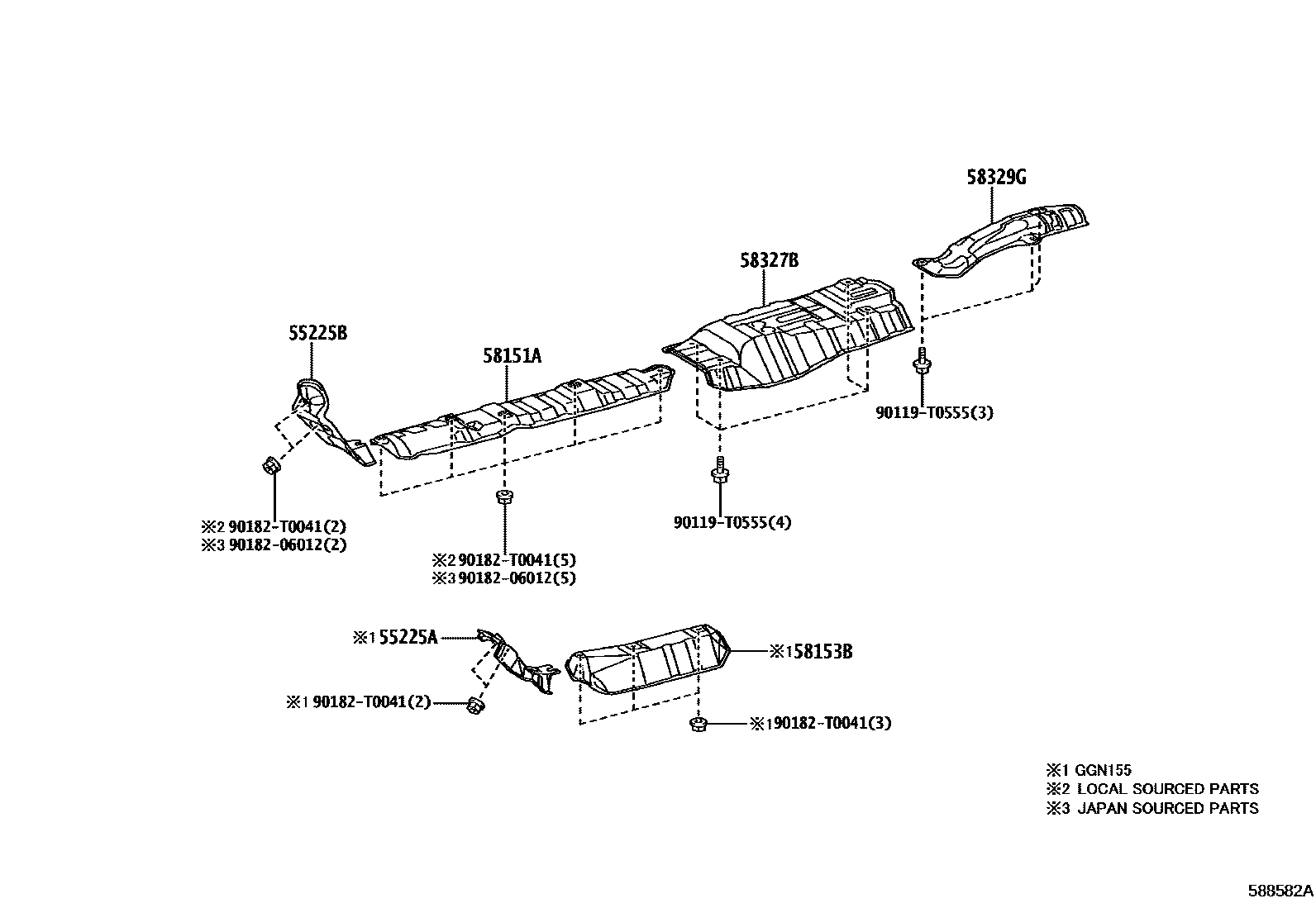

Toyota FORTUNER (SUV) — FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K021iGGN155..IDNP202208-202403

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGGN155,GUN156,16#,TGN156,166..AGTP¥1,070202208-202403

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK011iGGN155,GUN156,16#,TGN156,166..AGTP¥4,640202211-202310

sub58151-KK020¥2,830

main58151-KK020iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP¥2,830202208-202403

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-0K011iGGN155..THP202208-202403

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K020iGUN156,TGN156,166..PKNP202209-202403

sub58329-0K030

main58329-0K030iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

90119T0555

main90119-T0555

9018206012

main90182-06012¥60

90182T0041

main90182-T0041

9 parts on this diagram · 1 diagram in section
