Toyota FORTUNER (SUV) — CLUTCH & RELEASE FORK

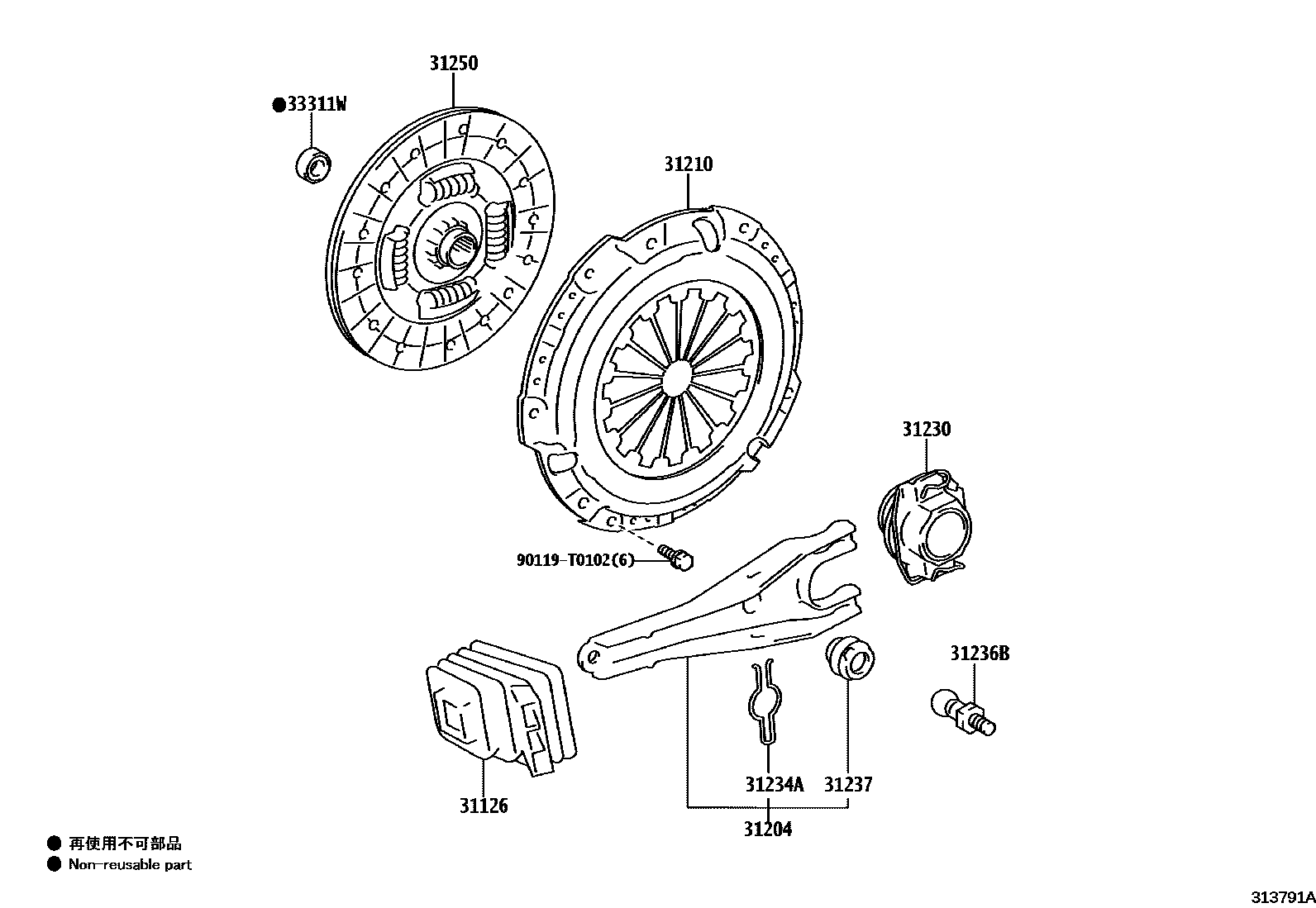

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0K080i¥530202209-202403
main31126-0K090i202209-202310
TYPE B:REFER 33-01
main31126-0K090i202209-202305
TYPE A:REFER 33-01
main31126-0K090i202209-202309
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31126-0K110i202301-202401
TYPE B:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K110i¥3,240202209-202310
TYPE B:REFER 33-01
main31204-0K110i¥3,240202209-202403
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31204-0K110i¥3,240202209-202310
TYPE A:REFER 33-01
main31204-0K190i202210-202309
TYPE A:REFER 33-01
main31204-0K190i202209-202401
TYPE B:REFER 33-01
31210COVER ASSY, CLUTCH
main31210-0K260i202209-202310
main31210-0K281i¥17,700202209-202309
main31210-0K281i¥17,700202211-202310
TYPE B:REFER ILLUST.
main31210-0K420i202301-202401
31230BEARING ASSY, CLUTCH RELEASE
main31230-0K050i202310-202403
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71052i¥3,300202209-202310
TYPE B:REFER 33-01
main31230-71052i¥3,300202209-202310
TYPE A:REFER 33-01
main31230-71052i¥3,300202209-202308
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71061i202209-202302
TYPE A:REFER 33-01
main31230-71061i202301-202401
TYPE B:REFER 33-01
main31230-71080i202210-202309
TYPE A:REFER 33-01
main31230-71080i202209-202310
TYPE B:REFER 33-01
31234ASPRING, RELEASE FORK SUPPORT
main31234-71020i202209-202305
TYPE A:REFER 33-01
main31234-71020i202209-202401
TYPE B:REFER 33-01
main31234-71020i202209-202309
TYPE B:REFER 33-01,TYPE A:REFER 33-01
31236BSUPPORT, RELEASE FORK
main31236-0K010i¥470202209-202403
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31236-0K010i¥470202209-202310
TYPE B:REFER 33-01
main31236-0K010i¥470202209-202310
TYPE A:REFER 33-01
main31236-0K020i202209-202302
TYPE A:REFER 33-01
main31236-0K060i202210-202309
TYPE A:REFER 33-01
main31236-0K060i202209-202401
TYPE B:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
main31237-0K020i202209-202309
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31237-0K020i202209-202401
TYPE B:REFER 33-01
main31237-0K020i202209-202305
TYPE A:REFER 33-01
31250DISC ASSY, CLUTCH
main31250-0K261i202209-202310
sub31250-0K262
main31250-0K281i¥20,200202209-202309
main31250-0K281i¥20,200202211-202310
TYPE B:REFER ILLUST.
main31250-0K440i202301-202401
33311WBEARING (FOR INPUT SHAFT)
main90363-12024i¥520202301-202401
main90363-T0006i¥1,050202209-202403
main90363-T0019i202209-202310
90119T0102
main90119-T0102¥80

10 parts on this diagram · 5 diagrams in section
