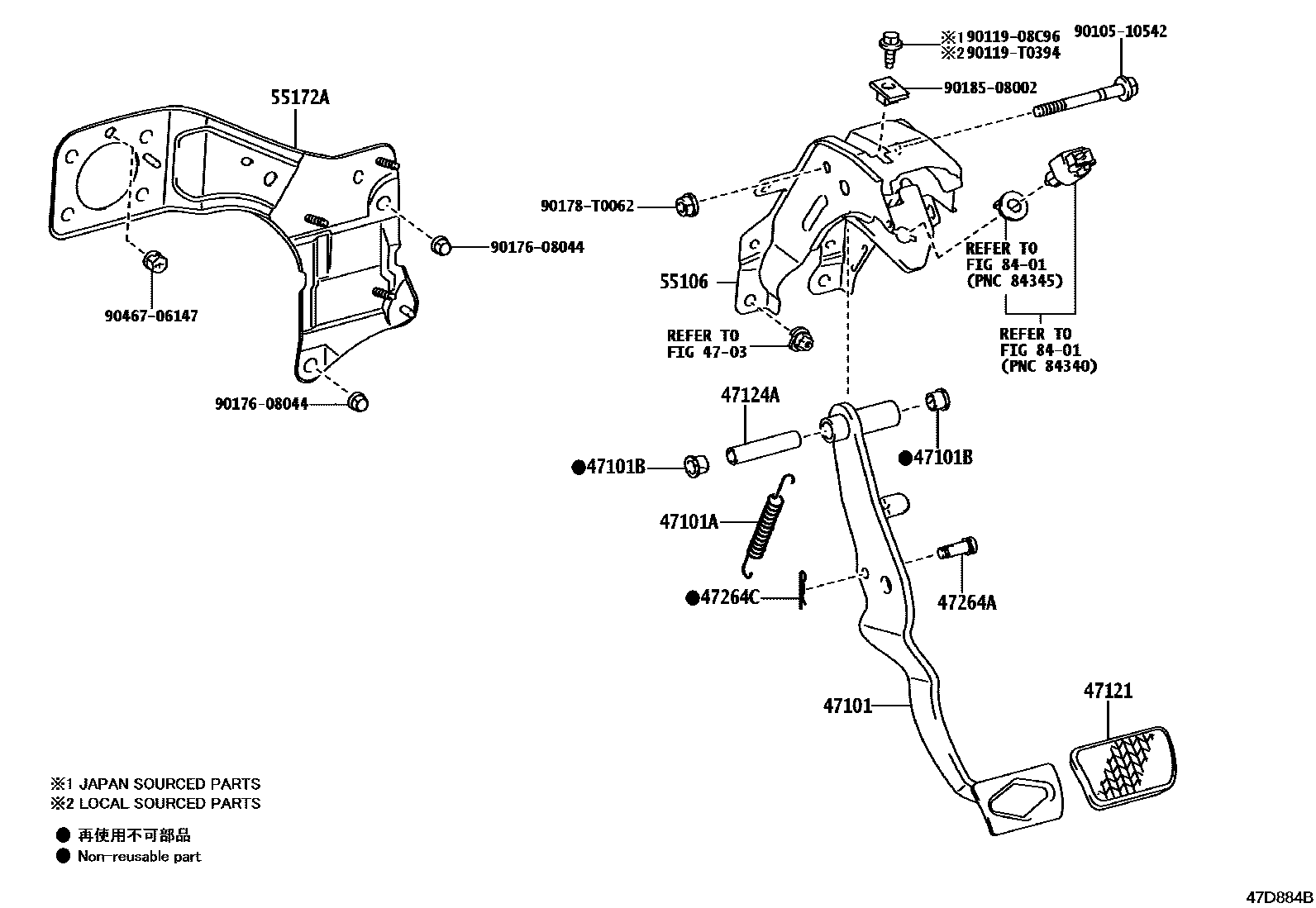

Toyota FORTUNER (SUV) — BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN156,165..RHD..6F..SA202209-202403

main47101-KK020iGUN155,165,TGN156..IDNP..MTM..L202209-202401

main47101-KK030iGUN156,TGN156,166..PKNP¥1,870202208-202403

main47101-KK040iGUN156,165,TGN166..VNP..6FC202208-202403

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGGN155,GUN15#,16#,TGN156,166..THP¥180202208-202403

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGGN155,GUN15#,16#,TGN156,166..THP¥120202208-202403

47121PAD, BRAKE PEDAL

main31321-02020iGUN156..6F..KEN202209-202403

main47121-02030iGGN155,GUN15#,TGN166..6FC..(EPT,KEN)202208-202403

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP¥370202209-202309

main90387-F0002iGGN155,GUN156,16#,TGN156,166..AGTP¥240202208-202403

47264APIN(FOR PUSH ROD)

main47148-35010iGGN155,GUN15#,16#,TGN156,166..THP¥350202208-202403

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGUN156,TGN156,166..PKNP¥280202208-202403

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGGN155,GUN156,16#,TGN156,166..AGTP¥2,520202208-202403

main55106-KK030iGUN156,16#,TGN166..INDP,VNP202209-202309

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK040iGUN156,TGN156,166..PKNP¥2,690202208-202403

main55172-KK050iGGN155,GUN156,16#,TGN156,166..AGTP202208-202403

8401

9010510542

main90105-10542¥270

9011908C96

main90119-08C96¥80

90119T0394

main90119-T0394

9017608044

main90176-08044¥90

90178T0062

main90178-T0062

9018508002

main90185-08002¥200

9046706147

main90467-06147¥80

18 parts on this diagram · 2 diagrams in section
