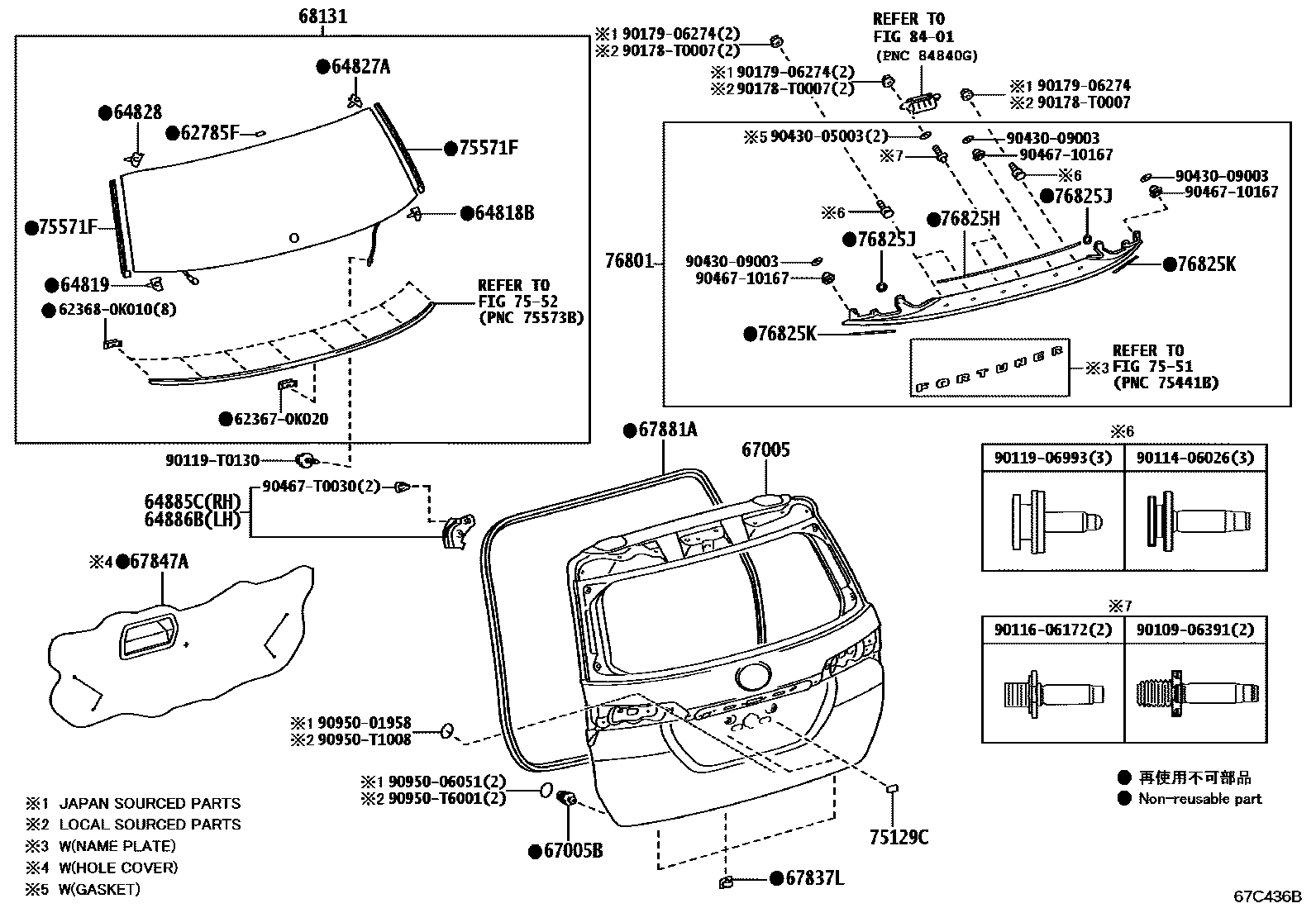

Toyota FORTUNER (SUV) — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main68294-26030iGUN156,16#,TGN166..INDP,VNP¥200202208-202403

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0K120iGUN15#,16#,LAN155,TGN156..SA202208-202403

main64818-0K160iGUN156,166,TGN166..IND202210-202309

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-0K140iGGN155,GUN156,16#,TGN156,166..AGTP202208-202403

main64819-0K180iGUN156,166,TGN166..IND202210-202309

64827ACLIP, BACK WINDOW GLASS, RH

main64827-0K060iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

main64827-0K100iGUN156,166,TGN166..IND202210-202309

64828CLIP, BACK WINDOW GLASS, LH

main64828-0K060iGUN156,165,TGN166..VNP202208-202403

main64828-0K100iGUN156,166,TGN166..IND202210-202309

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-0K080iGUN15#,16#,LAN155,TGN156..SA202208-202403

main64885-0K090iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main64885-0K100iGUN156,165,TGN166..VNP202209-202309

main64885-0K110iGUN156,166,TGN166..IND202210-202309

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-0K080iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

main64886-0K090iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main64886-0K100iGUN156,165,TGN166..VNP202209-202309

main64886-0K110iGUN156,166,TGN166..IND202210-202309

67005PANEL SUB-ASSY, BACK DOOR

main67005-KK010iGGN155..THP..S202208-202308

BACK MONITOR-WITHOUT

sub67005-KK120

main67005-KK010iGUN165,TGN166..VNP..(L,S)202208-202403

sub67005-KK120

main67005-KK020iGGN155,GUN16#..H..(GEN,IDN);GUN15#,TGN156,166..H..(IDN,MA)202209-202308

BACK MONITOR-WITHOUT

sub67005-KK130

main67005-KK020iGGN155,GUN16#..H..(GEN,IDN);GUN15#,TGN156,166..H..(IDN,MA)202209-202308

POWER BACK DOOR-WITH

sub67005-KK130

main67005-KK020iGUN156,TGN156..PKNP202209

sub67005-KK130

main67005-KK030iGUN156,166,TGN156,166..(L,S)..LA202211-202310

main67005-KK040iGUN156,TGN166..H..LA202211-202310

main67005-KK060iTGN156..IDNP..L..GCC;GUN155,TGN166..LHD..IDNP..6FC..(L,S)202208-202401

BACK MONITOR-WITH

sub67005-KK140

main67005-KK070iGGN155,GUN156..EPT,KEN202208-202403

sub67005-KK150

main67005-KK080iGUN166..6FC..LA;GUN156,TGN166..L..LA202211-202310

BACK MONITOR-WITH

main67005-KK090iGUN156..H..BZAGT;GGN155,GUN165..H..LA202211-202310

BACK MONITOR-WITH(*PVM)

main67005-KK090iGUN156,TGN166..H..LA202211-202310

BACK MONITOR-WITH

main67005-KK100iGUN156..L..BZAGT202211-202310

67005BCUSHION(FOR BACK DOOR PANEL)

main69478-0K010iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202309

main69478-48010iGUN156,166,TGN166..IND¥190202208-202403

67837LSEAL, DOOR DUST PROOF

main67837-0K180iGGN155,GUN15#,16#,TGN156,166..THP202208-202403

main67837-0K190iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202309

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-0K070iGUN156..LA;GUN156..6FC..BZAGT;GGN155,GUN16#,TGN156,166..AGTP202211-202310

main67847-0K080iGUN156,TGN156,166..RHD..GEN202209-202308

CENTRAL AND SOUTH AMERICA SPEC

main67847-0K150iGUN156..6F..BZAGT202211-202310

SPEAKER-11SPEAKER & JBL

67881AWEATHERSTRIP, BACK DOOR

main67881-0K050iGGN155,GUN15#,16#,TGN156,166..THP¥8,100202208-202403

main67881-0K060iGUN15#,16#,LAN155,TGN156..SA202301-202403

main67881-0K070iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main67881-0K080iGUN156,165,TGN166..VNP202209-202309

main67881-0K090iGUN156,166,TGN166..IND202210-202309

main67881-0K120iGUN15#,TGN156..MA202209-202308

68131GLASS, BACK DOOR

main68105-0K251iGUN156,TGN156..PKNP202208-202307

main68105-0K261iGUN156..H..ARL202208-202403

main68105-0K320iGGN155,GUN156,165,TGN166..H..LA202211-202310

main68105-0K330iGUN156..H..BZAGT202211-202310

main68105-0K340iGUN155..RHD..GEN;GGN155,GUN156,166,TGN156,166..IDNP..6FC..(GEN,PH,VN)202209-202309

main68105-0K350iGUN155..LHD..H..GEN;GUN15#,16#,TGN166..H..IDN202209-202308

main68105-0K391iTGN166..PKN202208-202307

main68105-0K401iTGN166..EPT202208-202403

main68105-0K410iGUN156..AGTP..L;GUN16#,TGN156,166..(L,S)..LA202211-202310

main68105-0K420iGUN156..L..BZAGT202211-202310

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN & *IS & *GBS)

main68105-0K430iGUN165..VNP..(L,S)202209-202309

main68105-0K440iGUN155,165..S..IDN202209-202308

BACK GLASS-FIX TYPE(PRIVACY)

main68105-0K451iGUN155..MA202209-202308

main68105-0K461iGUN156,TGN156..MA202209-202308

main68105-0K471iGUN15#,LAN155,TGN156..LHD..SA202301-202401

main68105-0K481iGUN15#,16#..RHD..SA202301-202401

BACK GLASS-FIX TYPE(PRIVACY)

main68105-0K481iGUN15#..KEN202301-202403

main68105-0K510iGGN155,GUN15#..THP..H..GCC202208-202307

main68105-0K530iGGN155,GUN15#..IDNP..H..GCC202209-202308

main68105-0K570iGUN156,166,TGN166..IND202210-202309

75129CCUSHION, REAR LICENCE PLATE

main75129-0K010iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

main75129-0K020iGUN156,165,TGN166..VNP202209-202309

main75129-13020iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP¥80202209-202403

7551

7552

75571FMOULDIMG, BACK DOOR WINDOW

main75571-0K090iGUN15#,16#,LAN155,TGN156..SA202208-202403

RH

main75571-0K120iGUN156,165,TGN166..VNP202209-202309

RH

main75571-0K130iGUN156,166,TGN166..IND202210-202309

RH

main75572-0K010iGUN15#,16#,LAN155,TGN156..SA202208-202403

LH

main75572-0K040iGUN156,165,TGN166..VNP202209-202309

LH

main75572-0K050iGUN156,166,TGN166..IND202210-202309

LH

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0K330iGUN165..L..LA202208-202310

NO PAINT REQ.

main76801-0K330iGUN155,TGN156,166..THP..L202208-202310

NO PAINT REQ.,BACK MONITOR-WITH

main76801-0K340iGGN155,GUN165..H..LA202208-202403

PLATED

main76801-0K350iGUN156,TGN156,166..PKNP202211-202403

PLATED

main76801-0K350iGUN156..PKN202211

PLATED,GR SPORT

main76801-0K380iGUN156..L..BZAGT202211-202310

NO PAINT REQ.

main76801-0K420iGUN156,TGN156..(H,S)..BZAGT202211-202310

PLATED

main76801-0K440iGUN155,TGN156,166..IDNP..L..GCC202209-202308

NO PAINT REQ.

main76801-0K440iGUN155,TGN156,166..IDNP..L..GCC202209-202308

NO PAINT REQ.,BACK MONITOR-WITH

main76801-0K450iGUN155,165,TGN156,166..IDNP..L202209-202308

NO PAINT REQ.

main76801-0K460iGUN165..IDNP..S..VN202209-202308

PLATED

main76801-0K460iGUN165..IDNP..S..VN202209-202308

PLATED,AUDIO-AVN(8INCH) & *BT

main76801-0K460iGUN165..IDNP..S..VN202209-202308

PLATED,BACK MONITOR-WITH

main76801-0K460iGUN165..IDNP..S..VN202209-202308

PLATED,BACK MONITOR-WITH(*PVM)

main76801-0K470iGGN155..IDNP..S;TGN156..IDNP..H202209-202308

PLATED,BACK MONITOR-WITHOUT

main76801-0K470iGUN15#..IDN;GUN155..IDNP..S..GCC;GGN155,GUN166..GEN,IDN;GUN165,TGN166..IDNP..(H,S)..(IDN,VN)202209-202308

PLATED

main76801-0K480iGUN156,166,TGN166..IND202210-202309

PLATED

main76801-0K560iGUN156,166,TGN156,166..(L,S)..LA202208-202403

NO PAINT REQ.

main76801-0K600iGUN15#,TGN156..MA202209-202308

PLATED

main76801-0K680iGUN165..VNP..L202209-202309

NO PAINT REQ.

main76801-0K690iTGN166..VNP202209-202309

PLATED,BACK MONITOR-WITH(*PVM)

main76801-0K690iGUN156,165..VNP..H202209-202309

PLATED

main76801-0K690iGUN156,165..VNP..H202209-202309

PLATED,AUDIO-AVN(8INCH) & *BT

main76801-0K690iGUN156,165..VNP..H202209-202309

PLATED,BACK MONITOR-WITH

main76801-0K700iGUN165,TGN166..VNP..S202209-202309

PLATED

76825HPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76825-0K120iGUN156,16#,TGN166..INDP,VNP202208-202403

76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76825-0K130iGGN155,GUN156,16#,TGN156,166..AGTP202208-202403

76825KPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.3

main76825-0K140iGUN156,TGN156,166..PKNP202208-202403

8401

623670K020CLIP, DOOR WINDOW GLASS, NO.1

main62367-0K020

623680K010CLIP, DOOR WINDOW GLASS, NO.2

main62368-0K010

9010906391

main90109-06391¥60

9011406026

main90114-06026¥60

9011606172

main90116-06172¥100

9011906993

main90119-06993¥80

90119T0130

main90119-T0130

90178T0007

main90178-T0007¥80

9017906274

main90179-06274¥70

9043005003

main90430-05003¥60

9043009003

main90430-09003¥60

9046710167

main90467-10167¥90

90467T0030

main90467-T0030¥100

9095001958

main90950-01958¥120

9095006051

main90950-06051¥130

90950T1008

main90950-T1008

90950T6001

main90950-T6001

39 parts on this diagram · 2 diagrams in section
