Toyota FORTUNER (SUV) — ANTENNA
86077COVER KIT, ANTENNA
CKD COLOR,000
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
SILVER ME.,1D6
MEDIUM SILVER ME.,1F8
GRAY ME.,1G3
main86077-0K010-C0iGUN156..IDNP..(GCC,VN);GUN156,166..RHD..IDNP..H;GGN155,GUN155,165,TGN156,166..IDNP,MAP202208-202403
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218 ,2PS ,2SC
ATTITUDE BLACK MC.,218 ,2PS ,2QY
ATTITUDE BLACK MC.,218 ,2UE ,2VM
ATTITUDE BLACK MC.,218 ,2PS
SPARKLING BLACK PEARL CS.,220
EMOTIONAL RED 2,3U5
AVANT-GARDE BRONZE ME.,4V8
PHANTOM BROWN ME.,4W9
BRONZE M.M.,4T3
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),SUPER WHITE 2,040
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),PLATINUM WHITE PEARLMC.,089
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),GRAY ME.,1G3
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),SILVER ME.,1D6
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),ATTITUDE BLACK MC.,218
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),EMOTIONAL RED 2,3U5
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),PHANTOM BROWN ME.,4W9
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
AUDIO- ILA
AUDIO-*DA(8INCH) & *BT
MLM PACKAGE & ACCESSORY
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-*DA(8INCH DISPLAY)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0KJ71iGGN155..GEN;GUN165..IDNP..S..VN;GUN165,TGN156..IDNP..L;GUN155,TGN166..LHD..IDNP..(L,S)202209-202308
AUDIO-WITHOUT
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-*DA(8INCH) & *BT
main86101-0KJ81iGUN15#..LHD..IDNP..H;GUN165..LHD..S..(GEN,PH);GGN155,GUN166,TGN156..IDNP..(H,S)..(GCC,PH,VN)202209-202309
AUDIO-AVN(8INCH) & *BT
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-WITHOUT
AUDIO-*DA(8INCH) & *BT & DAB
86101DCORD SUB-ASSY, ANTENNA, NO.3
UAE SPEC
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
86101JCORD SUB-ASSY, ANTENNA, NO.2
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
86101QCORD SUB-ASSY, ANTENNA, NO.4
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
86300BANTENNA ASSY, AMPLIFIER, NO.1
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
UAE SPEC
AUDIO-*DA(8INCH) & *BT & DAB
86769HOUSING, ROOF ANTENNA
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
9011906915
9011906A06
90119T0130
main90119-T0130

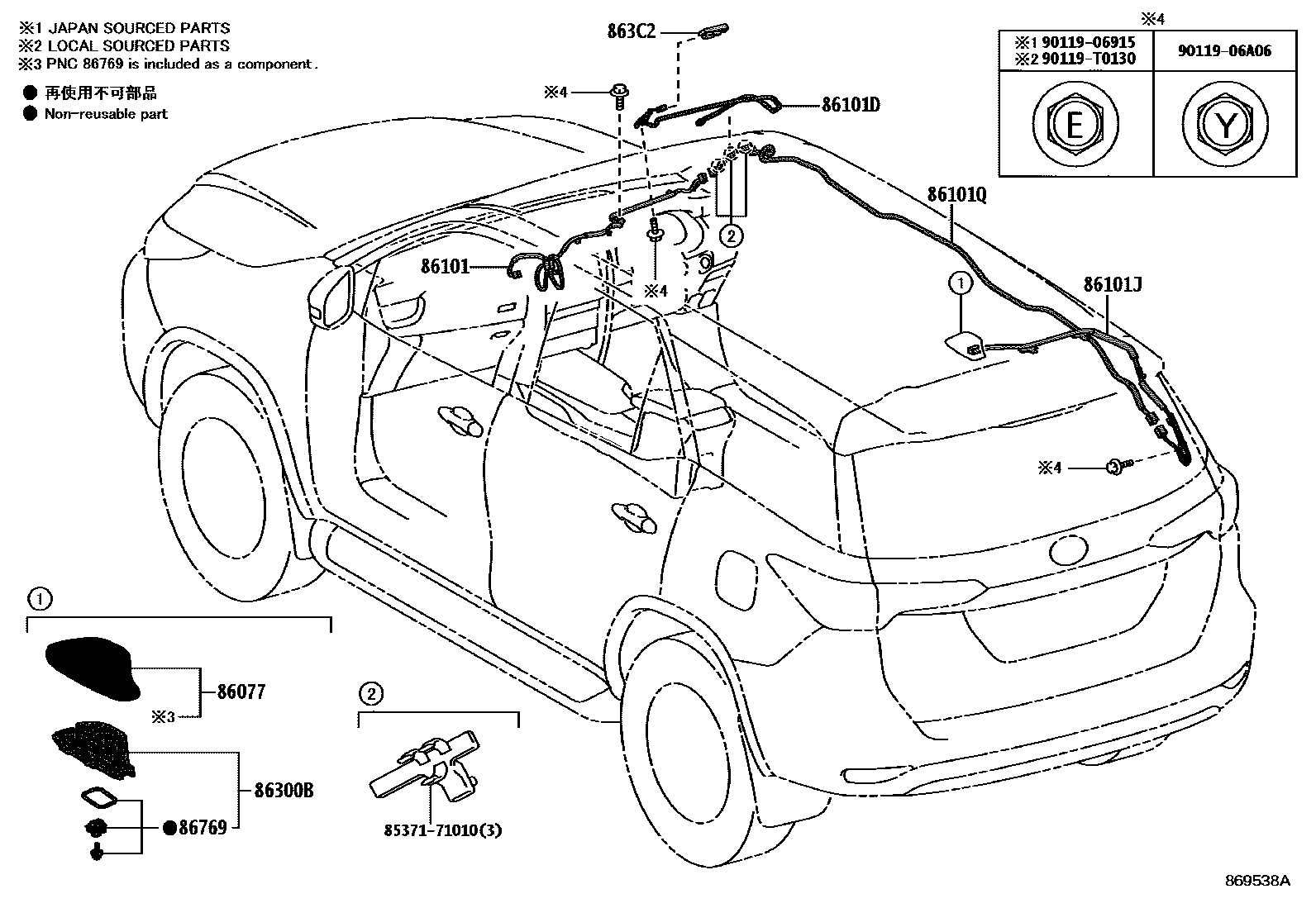

12 parts on this diagram · 1 diagram in section
