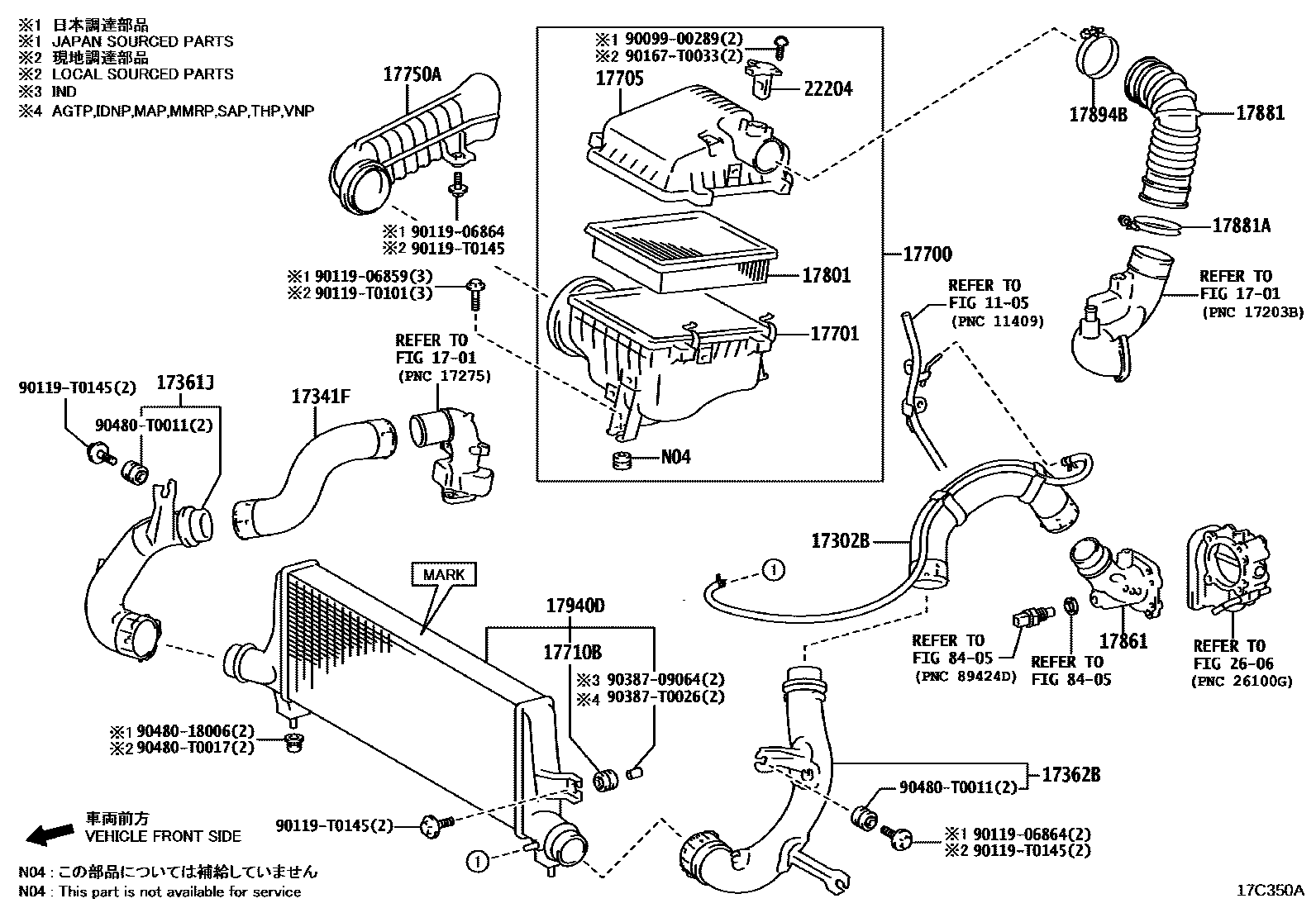

Toyota FORTUNER (SUV) — AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1105

1701

17302BHOSE SUB-ASSY, AIR

main17302-0E021i1GDFTV,2GDFTV..GUN15#,16#202208-202210

sub17302-0E022

main17302-0E022i1GDFTV,2GDFTV..GUN156,16#..AGTP202210-202403

17341FHOSE, AIR, NO.1

main17341-0E022i1GDFTV..GUN156..PKNP202208-202403

17361JTUBE, AIR, NO.1

main17361-0E010i1GDFTV,2GDFTV..GUN15#,16#..THP202208-202403

17362BTUBE, AIR, NO.2

main17362-0E010i1GDFTV,2GDFTV..GUN15#,16#..THP¥6,000202208-202403

17700CLEANER ASSY, AIR

main17700-0C180i1GRFE..GGN155..EPT202208-202403

main17700-0C200i1GRFE..GGN155..LA202211-202310

main17700-0C210i2TRFE..TGN156,166..THP202208-202403

main17700-0C220i2TRFE..TGN166..IND202209-202309

main17700-0C240i2TRFE..TGN156..SA202301-202401

main17700-0C250i2TRFE..TGN156,166..AGTP202211-202310

main17700-0L290i5LE..LAN155202301-202401

main17700-0L350i1GDFTV..GUN156..PKNP¥26,100202208-202308

THA SOURCED PARTS

main17700-0L360i1GDFTV,2GDFTV..GUN15#,16#..IDNP,VNP202209-202308

IDN SOURCED PARTS

main17700-0L370i1GDFTV..GUN156,166..IND202210-202309

IND SOURCED PARTS

main17700-0L380i1GDFTV,2GDFTV..GUN15#..KEN202301-202403

ZAF SOURCED PARTS

main17700-0L390i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

ARG SOURCED PARTS

main17700-0P210i1GRFE..GGN155..IDNP202209-202308

17701CASE SUB-ASSY, AIR CLEANER

main17701-0C150i1GDFTV,2GDFTV..GUN15#,16#..IDNP,VNP202209-202308

IDN SOURCED PARTS

main17701-0C160i1GDFTV..GUN156,166..IND202210-202309

IND SOURCED PARTS

main17701-0C170i1GDFTV,2GDFTV..GUN15#..MA¥8,000202208-202308

THA SOURCED PARTS

main17701-0C170i1GRFE..GGN155..EPT¥8,000202208-202403

main17701-0C180i5LE..LAN155202301-202403

ZAF SOURCED PARTS

main17701-0C190i1GRFE..GGN155..LA202211-202310

ARG SOURCED PARTS

main17701-0C200i2TRFE..TGN166..EPT202208-202403

main17701-0C210i2TRFE..TGN166..IND202209-202309

main17701-0C220i2TRFE..TGN156..SA202301-202401

main17701-0C230i2TRFE..TGN156,166..AGTP202211-202310

17705CAP SUB-ASSY, AIR CLEANER

main17705-0C140i2TRFE..TGN166..IND202209-202309

main17705-0C160i2TRFE..TGN156..MA202208-202403

main17705-0C170i2TRFE..TGN156..SA202301-202401

main17705-0C180i2TRFE..TGN156,166..AGTP202211-202310

main17705-0C190i1GRFE..GGN155..THP202208-202403

main17705-0C210i1GRFE..GGN155..LA202211-202310

main17705-0L180i1GRFE..GGN155..IDNP202209-202308

main17705-0L280i5LE..LAN155202301-202401

main17705-0L290i1GDFTV..GUN156..PKNP¥5,400202208-202308

THA SOURCED PARTS

main17705-0L300i1GDFTV,2GDFTV..GUN15#,16#..IDNP,VNP202209-202308

IDN SOURCED PARTS

main17705-0L310i1GDFTV..GUN156,166..IND202210-202309

IND SOURCED PARTS

main17705-0L320i1GDFTV,2GDFTV..GUN15#,16#..SA202301-202403

ZAF SOURCED PARTS

main17705-0L330i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

ARG SOURCED PARTS

17710BGROMMET

main90480-11016i1GDFTV..GUN156,166..IND¥0202210-202309

(J)

main90480-F0002i1GDFTV,2GDFTV..GUN15#,16#..SA202301-202403

main90480-T0011i1GDFTV,2GDFTV..GUN156,165..VNP202208-202310

(L)

17750AINLET ASSY, AIR CLEANER

main17750-05031i5LE..LAN155202301-202401

main17750-0L050i1GRFE..GGN155..EPT202208-202403

main17750-0L060i2TRFE..TGN156,166..THP¥3,870202208-202307

main17750-0L070i1GDFTV,2GDFTV..GUN15#,16#..SA202209-202403

main17750-0L090i1GRFE..GGN155..LA202211-202310

main17750-0L120i1GRFE..GGN155..IDNP202209-202308

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0L040i2TRFE..TGN156..SA¥5,000202208-202403

17861CONNECTOR, INTAKE AIR

main17861-08020i1GDFTV..GUN156202407

THA SOURCED PARTS

main17861-0C130i2TRFE..TGN156..SA202209-202403

main17861-0C130i2TRFE..TGN156,166..H..GEN202209-202308

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main17861-0C150i2TRFE..TGN156,166..PKN202208-202310

main17861-0E010i1GDFTV,2GDFTV..GUN156,16#..INDP,VNP¥5,900202208-202407

THA SOURCED PARTS

sub17861-08020

main17861-0E030i1GDFTV..GUN156..THP..ARL202208-202309

IND SOURCED PARTS

main17861-11140i2GDFTV..GUN155,165..THP202208-202307

JAPAN SOURCED PARTS

17881HOSE, AIR CLEANER, NO.1

main17881-05060i5LE..LAN155202301-202309

sub17881-05061

main17881-05061i5LE..LAN155202310-202401

main17881-0C110i2TRFE..TGN156..MA202208-202309

THA SOURCED PARTS

sub17881-0C111

main17881-0C111i2TRFE..TGN156,166..PKN202310-202403

THA SOURCED PARTS

main17881-0C120i2TRFE..TGN156,166..IDNP,INDP202209-202308

IDN SOURCED PARTS

main17881-0E020i1GDFTV,2GDFTV..GUN15#..KEN¥2,860202208-202307

THA SOURCED PARTS

sub17881-0E021¥2,600

main17881-0E021i1GDFTV,2GDFTV..GUN15#..KEN¥2,600202307-202403

THA SOURCED PARTS

main17881-0E030i1GDFTV,2GDFTV..GUN15#,16#..IDNP,VNP202209-202308

IDN SOURCED PARTS

main17881-0E040i1GDFTV..GUN156,166..IND202210-202309

IND SOURCED PARTS

main17881-0E050i1GDFTV,2GDFTV..GUN15#,16#..SA202301-202403

ZAF SOURCED PARTS

main17881-0P160i1GRFE..GGN155..THP202208-202403

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0005i1GDFTV,2GDFTV..GUN15#,16#..SA202208-202403

main90460-T0020i2TRFE..TGN156,166..PKN202208-202403

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main90460-T0020i1GDFTV..GUN156,166..IND202208-202403

17940DINTERCOOLER ASSY

main17940-0E010i1GDFTV,2GDFTV..GUN156,165..VNP202208-202309

MARK=0E010

main17940-0E020i1GDFTV..GUN156,166..IND202210-202309

MARK=0E020

main17940-0E030i1GDFTV,2GDFTV..GUN15#,16#..SA202301-202403

MARK=0E030

main17940-0E040i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

MARK=0E040

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1GRFE..GGN155..LA¥12,400202208-202403

main22204-30030i1GDFTV,2GDFTV..GUN15#,16#..THP¥12,400202208-202403

main22204-75040i2TRFE..TGN166..INDP,VNP¥9,400202208-202403

2606

8405

9009900289

main90099-00289¥60

9011906859

main90119-06859¥130

9011906864

main90119-06864¥80

90119T0101

main90119-T0101¥80

90119T0145

main90119-T0145

90167T0033

main90167-T0033

9038709064

main90387-09064

90387T0026

main90387-T0026¥100

9048018006

main90480-18006¥130

90480T0011

main90480-T0011

90480T0017

main90480-T0017

31 parts on this diagram · 4 diagrams in section
